Staff-operated side rail for OPUS 1-K85EW (short care bed)



Staff-operated side rail in two heights for the short care bed OPUS 1-K85EW. Comes with a new improved locking mechanism that does not loosen over time and optimized safety, as the side rails cannot be installed incorrectly.

Classification
18 12 26 01 - Side rails in one piece



The product series contains 4 products.

» Summarize specifications

Product 1 of 4

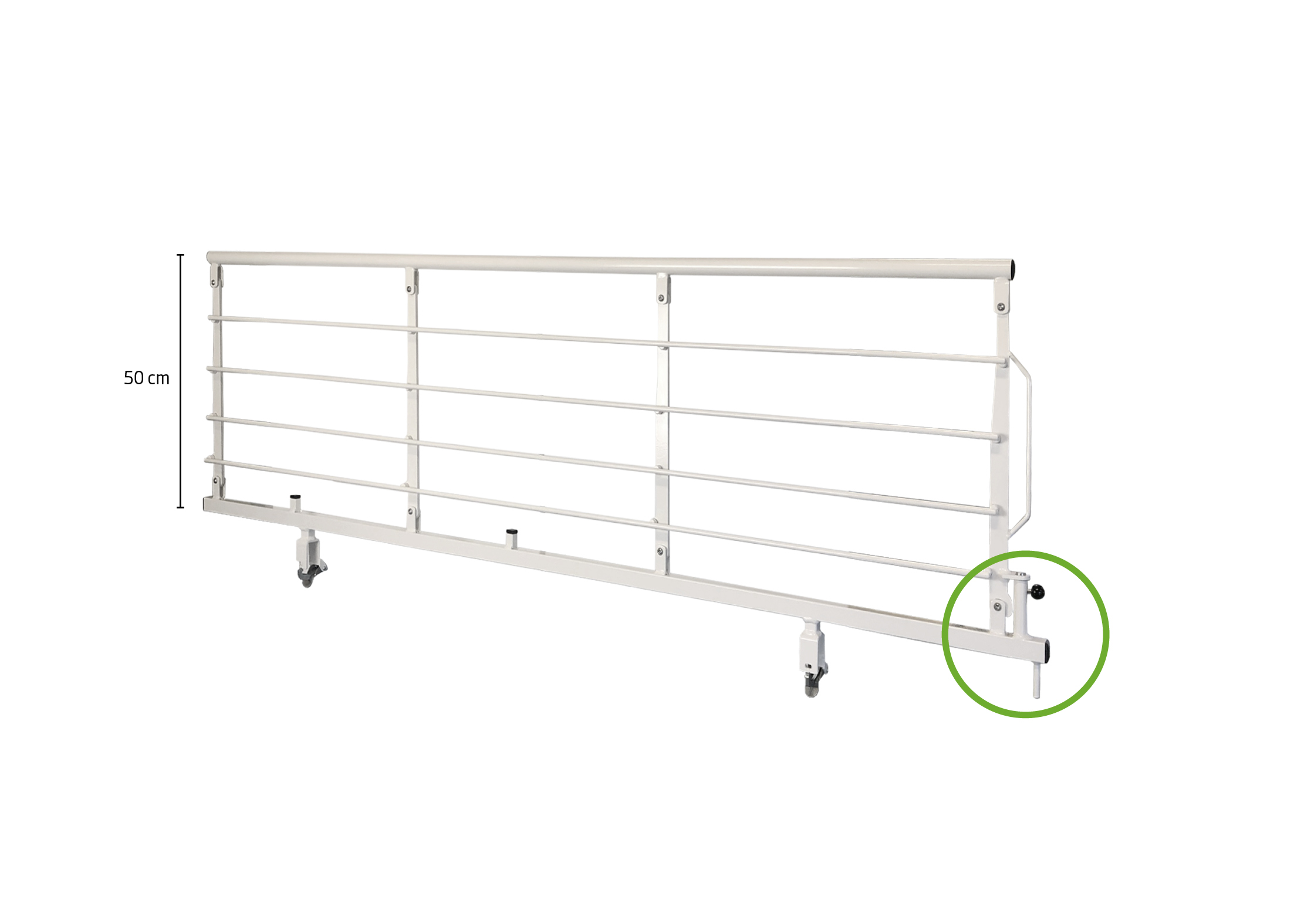

Staff-operated side rail for OPUS 1-K85EW (HIGH LEFT)


HMI-no.
139871
Article-no.
158547KV

Registration date
12-02-2024
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
Yes
Can be used in the right side of the bed
No
Can the locking mechanism be operated by the person lying in the bed
No

Measures
Height
50
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
150
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
CE marked as medical device

Other specifications
For mounting on the left side for the bedridden person. Staff-friendly lock by the bottom of the headboard. Fits mattress height 17-23 cm. For better comfort, KR recommends using a mattress height of 19-23 cm.


Product 2 of 4
Staff-operated side rail for OPUS 1-K85EW (HIGH RIGHT)


HMI-no.
139874
Article-no.
158547KH

Registration date
12-02-2024
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
No
Can be used in the right side of the bed
Yes
Can the locking mechanism be operated by the person lying in the bed
No

Measures
Height
50
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
150
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
CE marked as medical device

Other specifications
For mounting on the right side for the bedridden person. Staff-friendly lock by the bottom of the headboard. Fits mattress height 17-23 cm. For better comfort, KR recommends using a mattress height of 19-23 cm.


Product 3 of 4

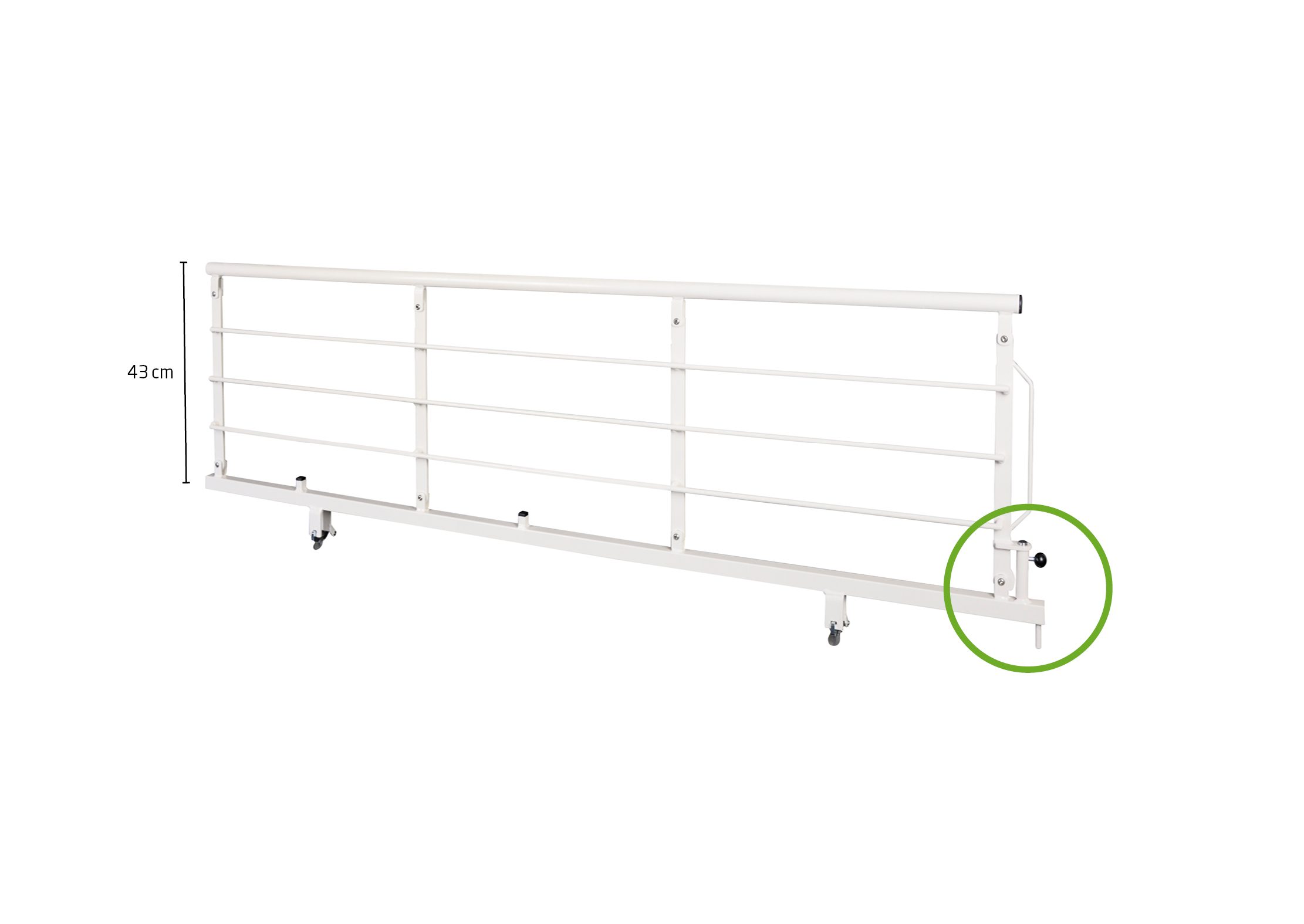

Staff-operated side rail for OPUS 1-K85EW (LEFT)


HMI-no.
139868
Article-no.
158550KV

Registration date
12-02-2024
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
Yes
Can be used in the right side of the bed
No
Can the locking mechanism be operated by the person lying in the bed
No

Measures
Height
43
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
150
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
CE marked as medical device

Other specifications
For mounting on the left side for the bedridden person. Staff-friendly lock by the bottom of the headboard. Fits mattress height 10-16 cm. For better comfort, KR recommends using a mattress height of 12-16 cm.


Product 4 of 4
Staff-operated side rail for OPUS 1-K85EW (RIGHT)


HMI-no.
139865
Article-no.
158550KH

Registration date
12-02-2024
Last updated
11-09-2025

Properties
Only intended for use with specific products
Yes
Removable without tools
Yes
Integrated
No
Indicates whether the side rail is mounted in both end panels
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the side rail
Lateral foldable
Yes
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the side rail along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the side rail pivoting around its lower fixation point
Can be used in the left side of the bed
No
Can be used in the right side of the bed
Yes
Can the locking mechanism be operated by the person lying in the bed
No

Measures
Height
43
cm
Measured from the mattress support platform (without mattress) to the upper point of the side rail
Length
150
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
CE marked as medical device

Other specifications
For mounting on the right side for the bedridden person. Staff-friendly lock by the bottom of the headboard. Fits mattress height 10-16 cm. For better comfort, KR recommends using a mattress height of 12-16 cm.
