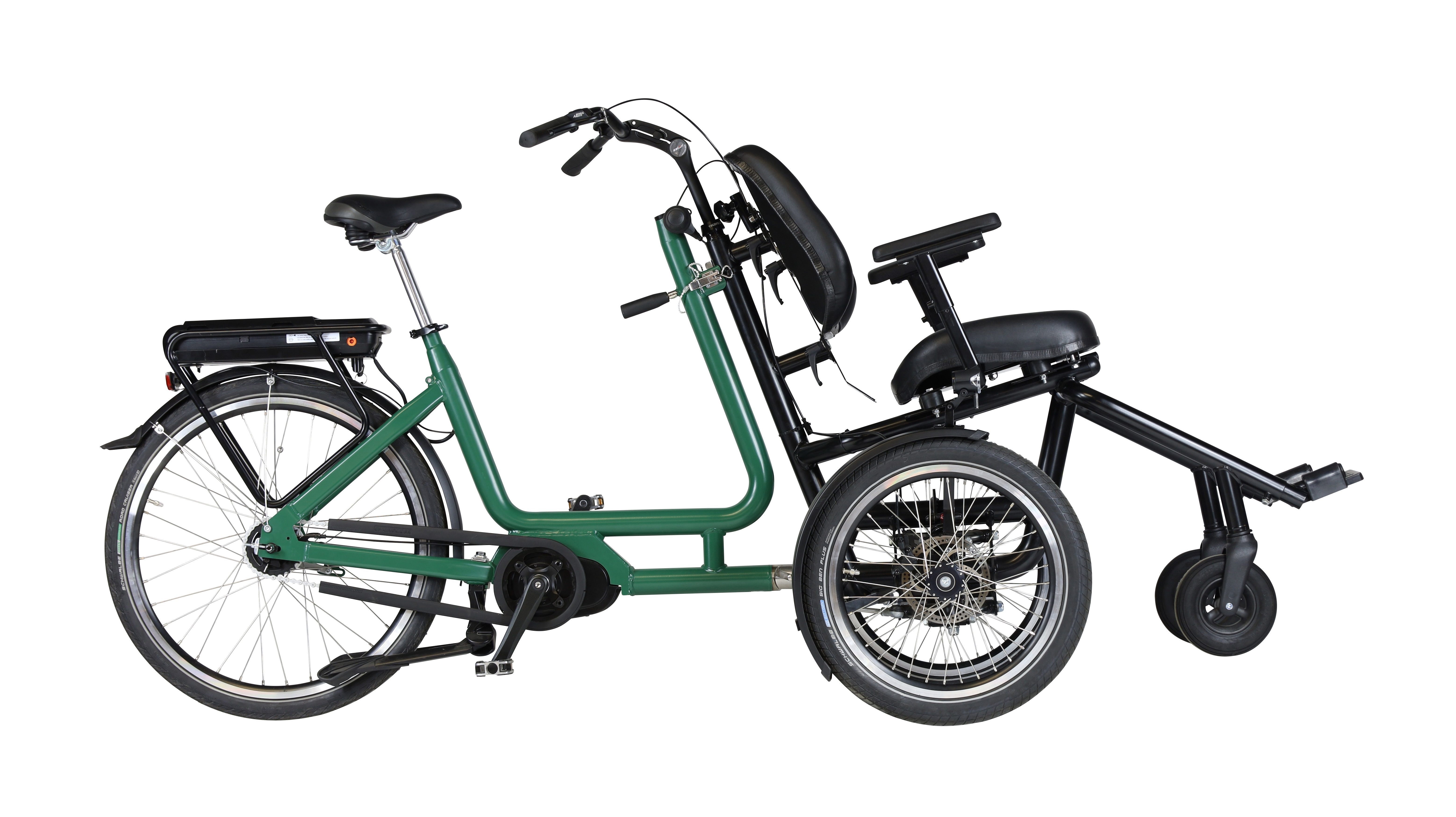

Diaz - Wheelchair bike
The Diaz is standard equipped with a Bafang middle motor. The motor provides an efficient drive, allowing you to comfortably go out together. With the help of this drive you pedal more lightly and therefore less tiring.
This pedal assistance comes standard with a drive assist and five modes of assistance. This makes it even easier to get going.
This pedal assistance comes standard with a drive assist and five modes of assistance. This makes it even easier to get going.
Classification
12 18 06 14 - Carrier cycles
Documents
User manualThe product series contains 1 product.
Product 1 of 1
Diaz - Wheelchair bike
HMI-no.
140003
Article-no.
3000
Registration date
21-02-2024
Last updated
07-02-2025
Properties
High-back seat
Yes
Reverse gear
Yes
Fixed gear without free wheel
No
The cycle reverses by backwards treadle
Pedal brake
Yes
Parking brake
Yes
Power-assist unit
Yes
Measures
User weight, max
240
kg
Inside leg, min
77
cm
Inside leg, max
98
cm
Step through frame
39
cm
Weight
74
kg
Number of gears
8
External width
78
cm
Total length
235
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
Attachment for child seat system (Isofix)
Multiple seating systems (comfort)
Frame suitable for seat orthosis
Fixation belts
Headrest
Raised footplates
Abduction block
Rear view mirror
Various saddles
Entry Height for passenger 77cm when chair attached to bike and 67cm if detached.
Multiple seating systems (comfort)
Frame suitable for seat orthosis
Fixation belts
Headrest
Raised footplates
Abduction block
Rear view mirror
Various saddles
Entry Height for passenger 77cm when chair attached to bike and 67cm if detached.
