YFWB-63




Classification
12 23 06 07 - Powered wheelchairs, powered steering, class A (primarily for indoor use)

Documents
Brochure


The product series contains 1 product.

Product 1 of 1

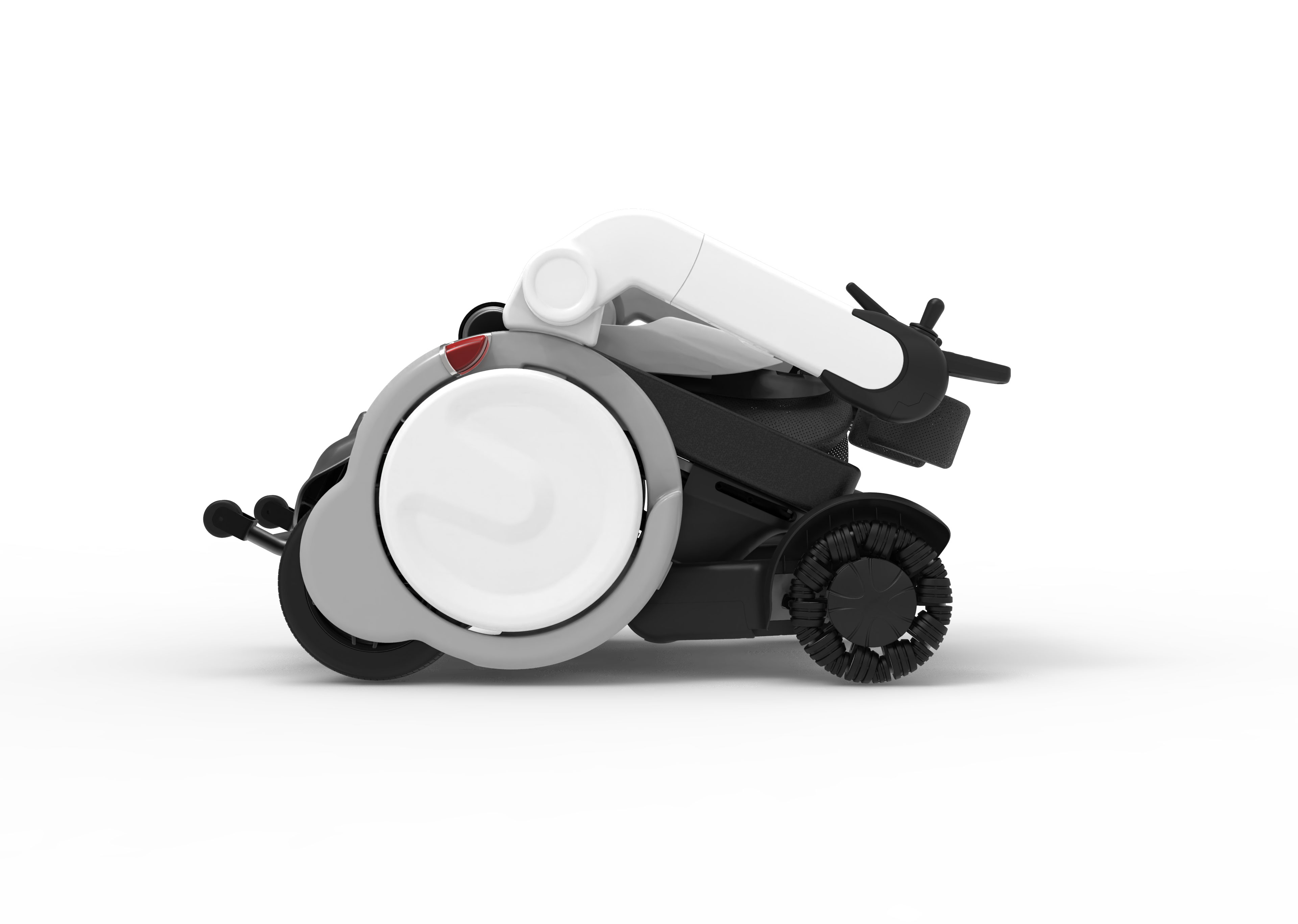

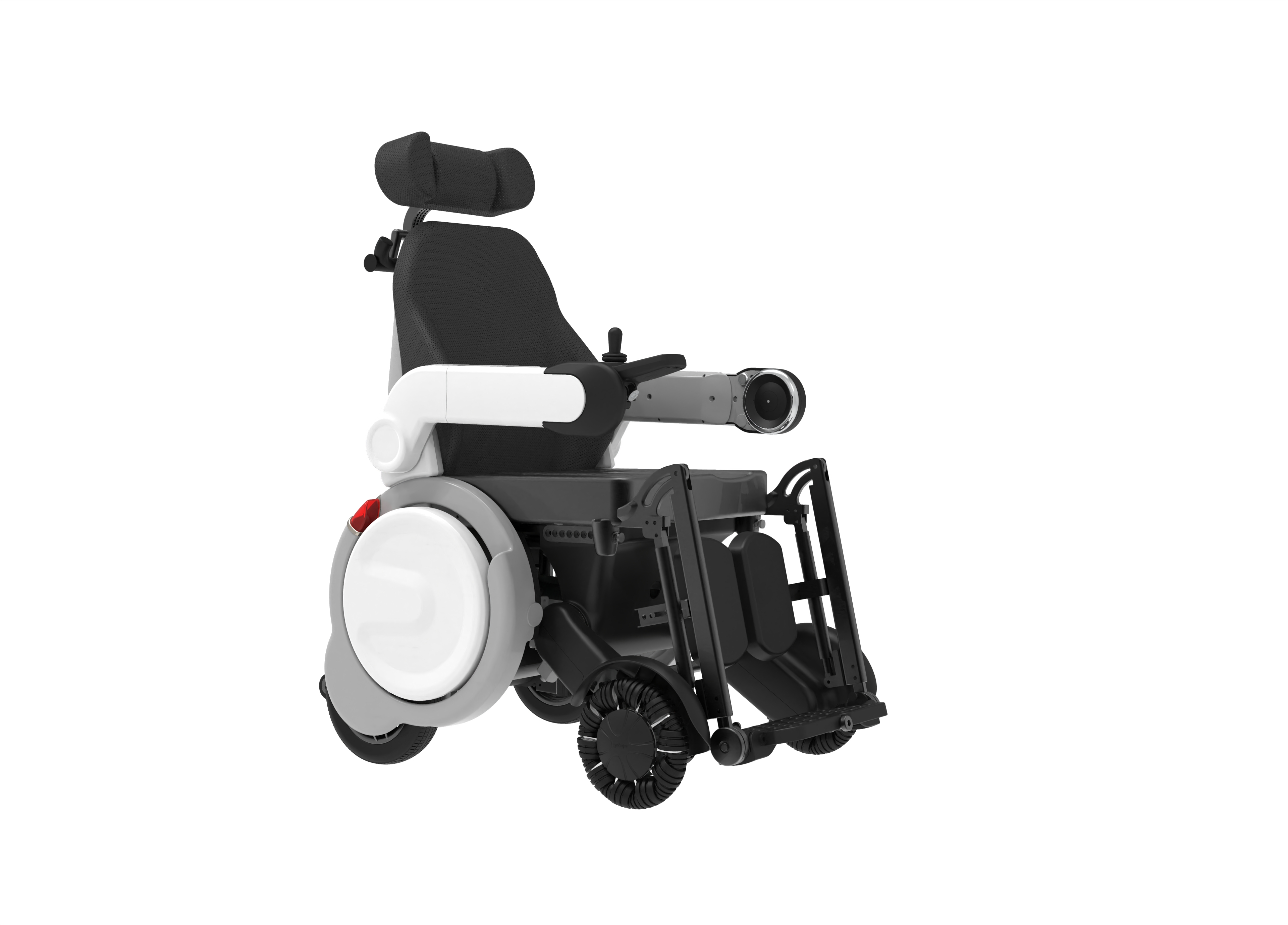

YFWB-63 Foldbar & Transportabel el kørestol


HMI-no.
140430

Registration date
14-05-2024
Last updated
11-09-2025

Properties
Programmable
No
Elevating seat
No

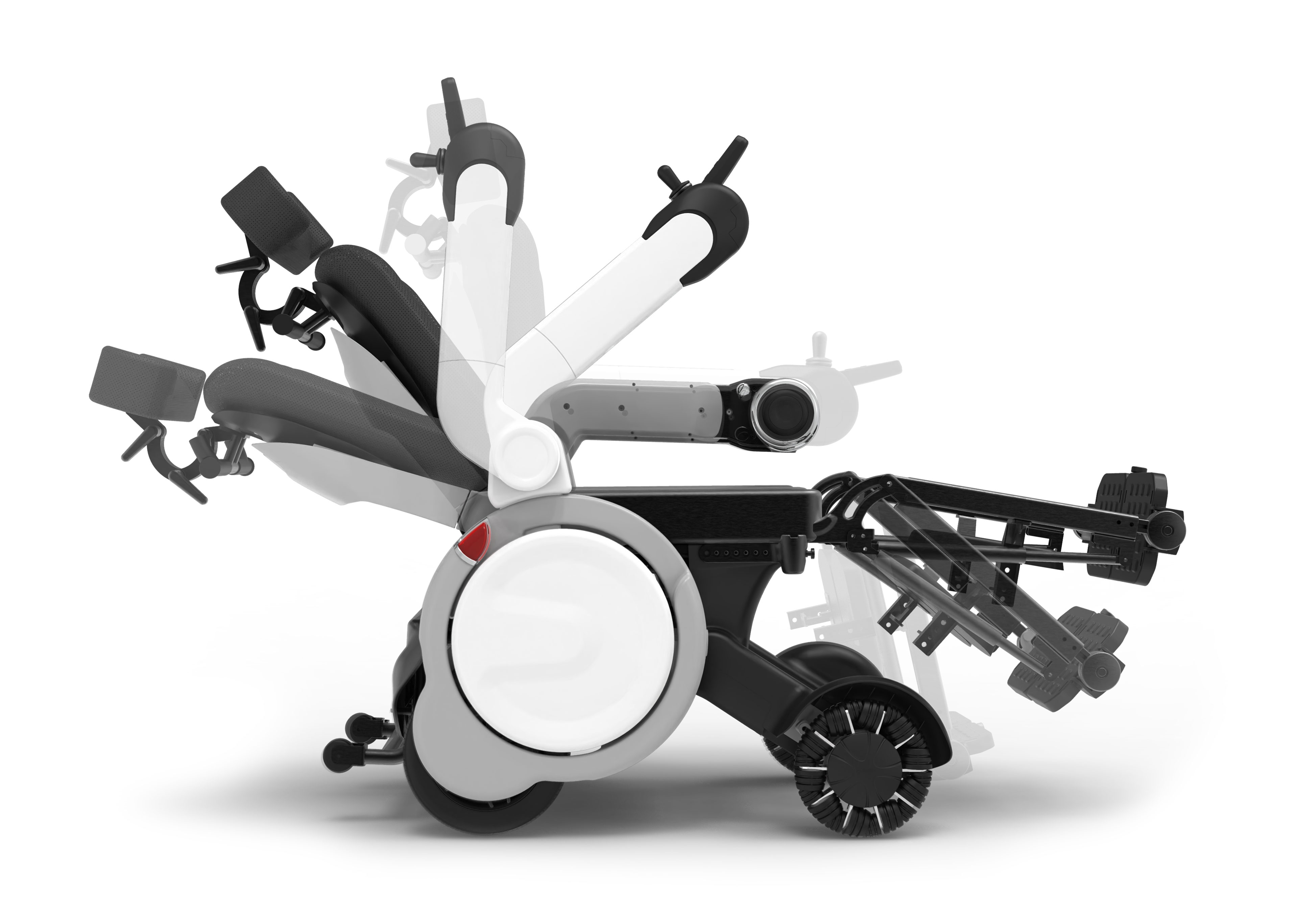

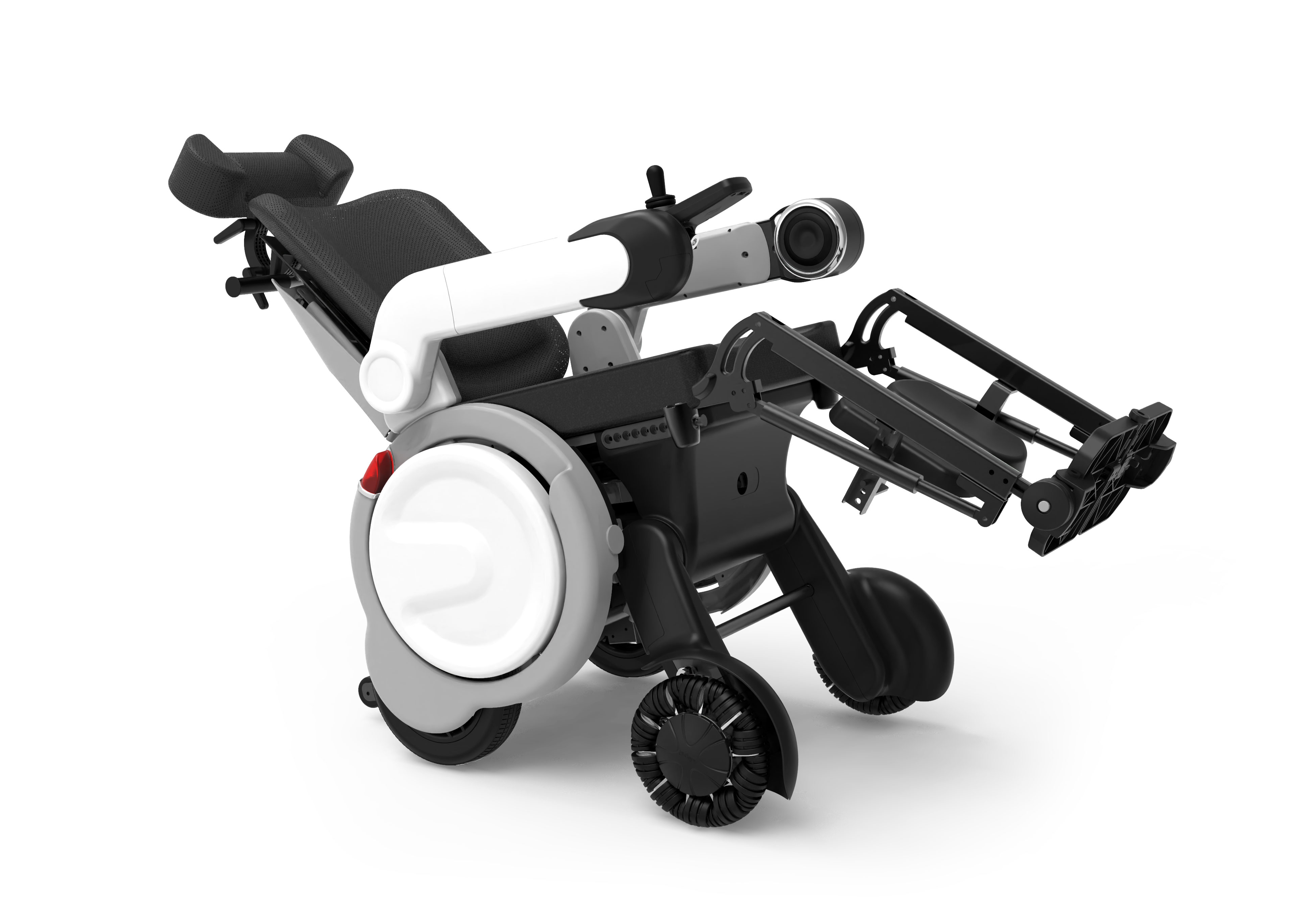

Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
No

Measures
User weight, max
120
kg
External width
65
cm
Measured where widest
External length
112
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
60
kg
Speed, max
6
km/t
Driving distance range, fully charged
25
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
52
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
52
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
160
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
20
°
Measured from the horizontal position.
Ground clearance
4
cm
Slope, max
9
°
Climbs obstacles of max
4
cm

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12184:2014: Electrically powered wheelchairs, scooters and their chargers - Requirements and test methods.
Test lab: SGS-CSTC Standards Technical Services(Shanghai) Co., Ltd. Test date: 12-07-2021 Test report for HMI-no. 140430

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 140430
