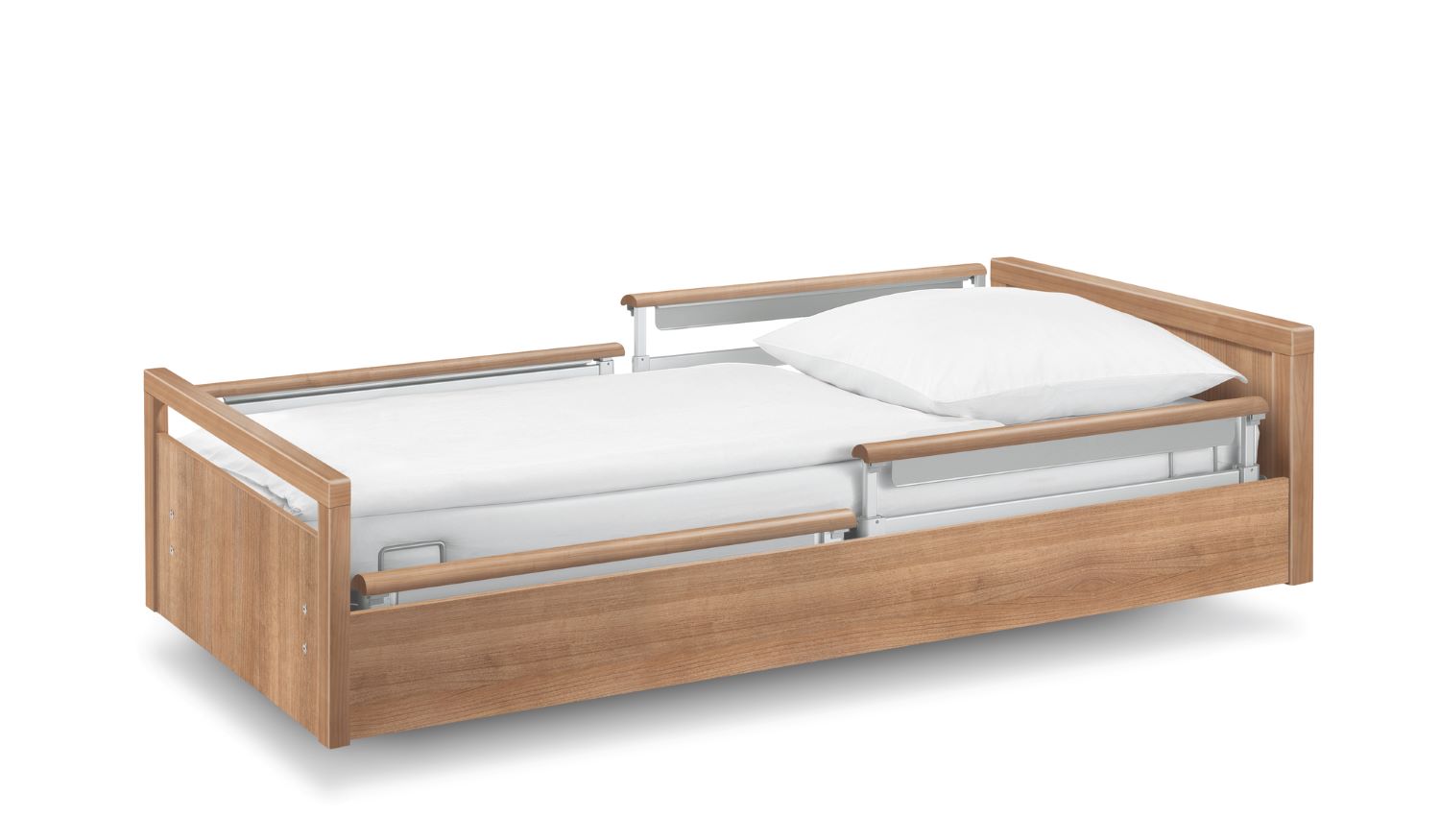

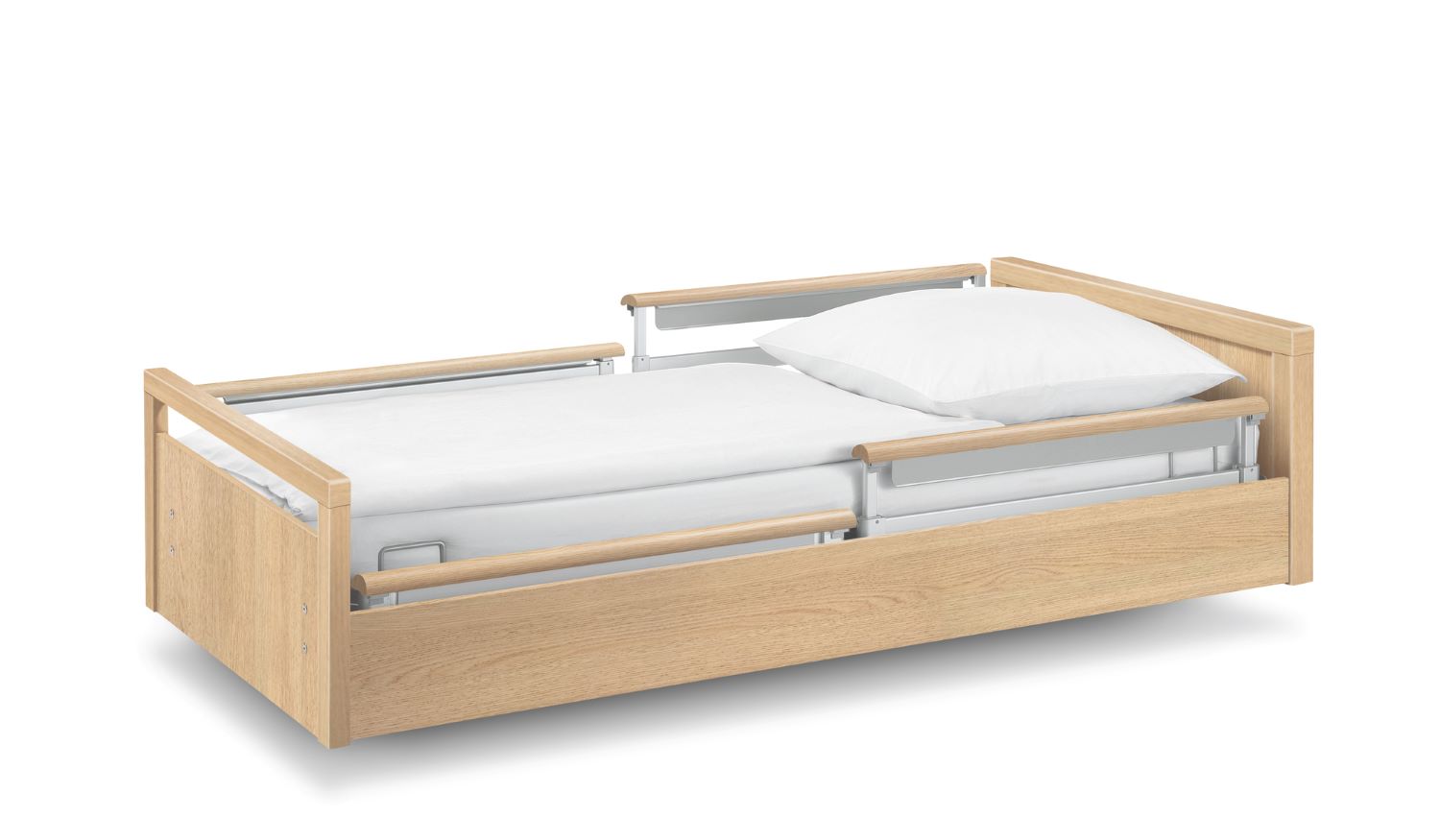

Carisma 300-XL Nursing Bed




Classification
18 12 10 30 - Adjustable beds, 4-sectioned mattress support platform, electrically operated

Documents
Brochure
User manual
QuickGuide
Accessories catalogue


The product series contains 1 product.

Product 1 of 1
Carisma 300-XL Nursing Bed


HMI-no.
140563
Article-no.
3-028-006

Registration date
30-05-2024
Last updated
11-09-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
Yes
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
Yes
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
Yes
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
No
Removable foot board
No
Removable head board
No
Heigh cot sides
Yes
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
Yes
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
Yes

Measures
Outside measure length
208
cm
Measured without any bed extension
Outside measure width
119
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
100
cm
Load, max
300
kg
Maximum external load on the product that is permitted in normal use
User weight, max
270
kg
Weight of heaviest main part
100
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
36
cm
Measured without mattress
Mattress support platform, height above floor, max
80
cm
Measured without mattress
Under bed clearance
15
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
5
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 140563
