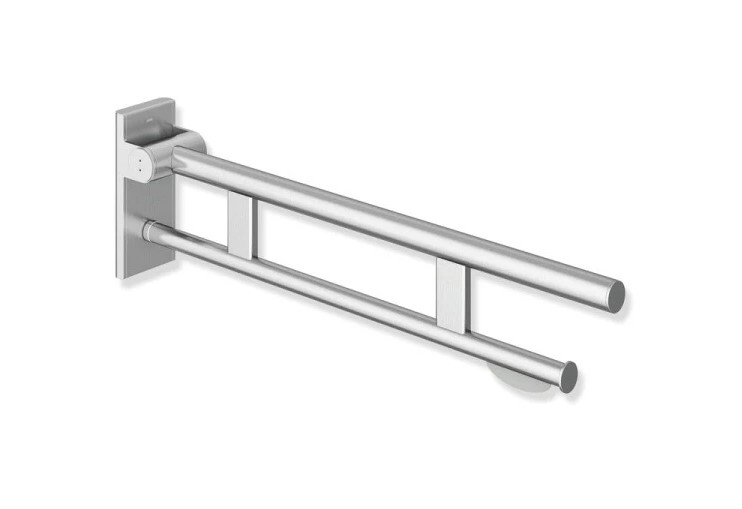

HEWI Duo hinged support rai w/toilet roll holder

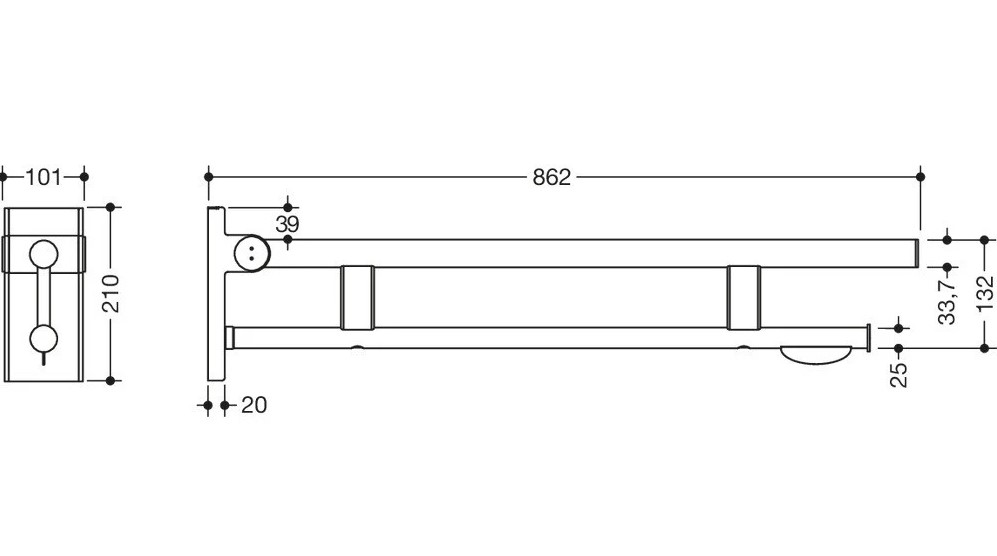

HEWI Duo hinged support rail, stainless steel, satin, w/toilet roll holder, projection 850 mm, 210 mm high and 101 mm wide, dia. of upper rail 33.7 mm, bottom rail 25 mm, weight capacity up to 150 kg,: Produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices.Fulfils DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.

Classification
18 18 11 01 - Toilet arm supports, wall mounted

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
HEWI Hinged support rail Duo


HMI-no.
140615
Article-no.
900.50.108XA

Registration date
13-06-2024
Last updated
16-02-2026

Properties
Supporting leg
No
Hinged
Yes
Pivoting
No

Measures
Load, max
150
kg
Length of arm support
85
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 140615
