HEWI Support rail - System 900

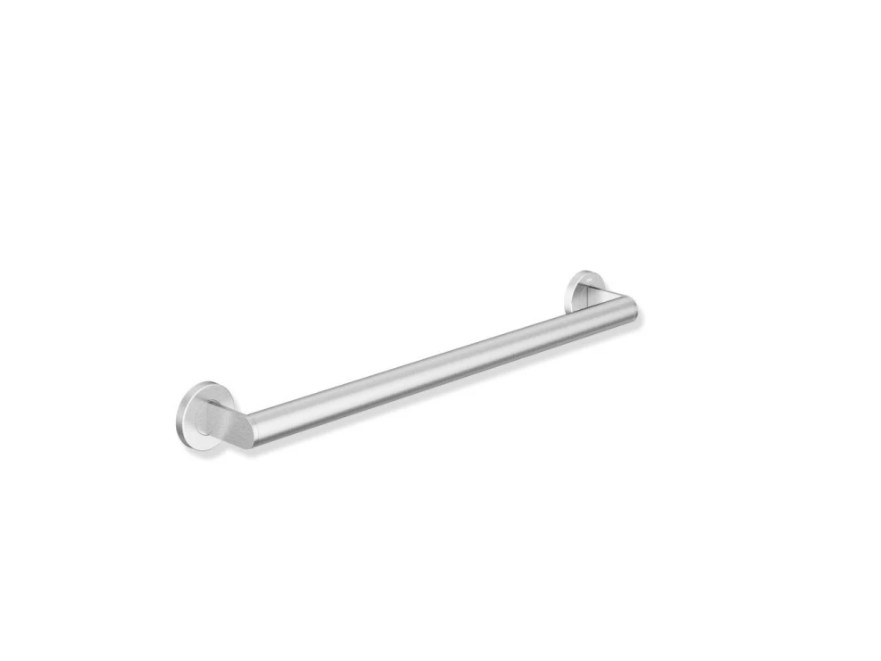

HEWI Grab bar, System 900

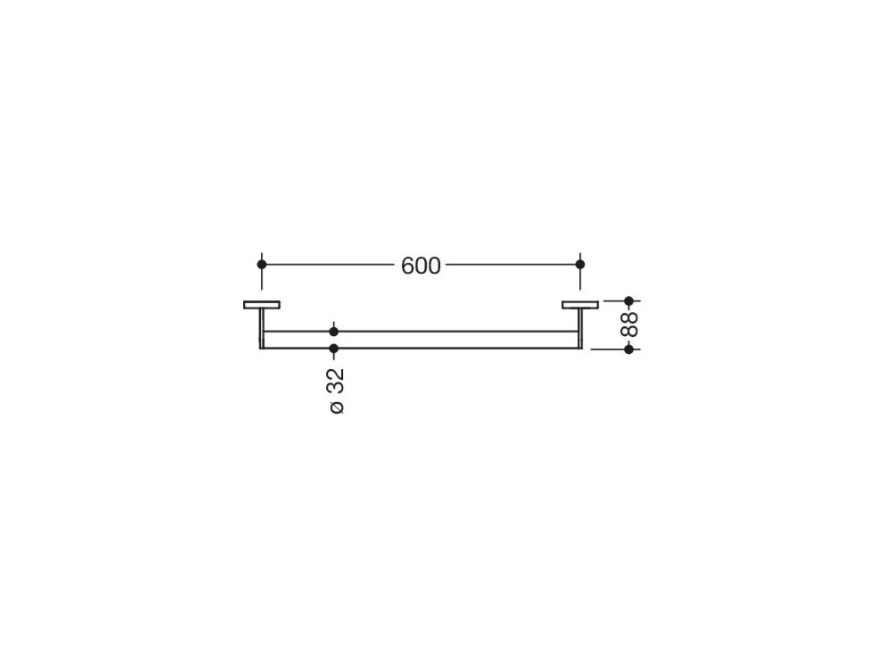

straight rail with supports and roses, made of stainless steel, satin, centre-to-centre 600 mm, 88 mm deep, rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm, including non-corrosive HEWI fixing material.

Classification
18 18 06 03 - Handgrips, fixed, straight

Documents
Brochure


The product series contains 1 product.

Product 1 of 1
HEWI Support rail - Serie System 900


HMI-no.
140943
Article-no.
900.36.003XA

Registration date
10-07-2024
Last updated
26-01-2026

Measures
Load, max
100
kg
Length
60
cm
The length is the distance between the two mounting points.
Depth
8.8
cm
The depth is the distance from the wall to the inside of the hand grip.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
Exclusively within the general product safety regulation/directive and without CE marking

Other specifications
Available in lengths from 30 cm to 100 cm with 10 cm intervals. Can also be tailor made in sizes from 22 cm to 110 cm.
Surface variants: chrome, brushed steel and matt powder-coated colors white, black and dark grey.
