BCE-9000ER Foldbar & Transportabel el-kørestol




Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
Brochure


The product series contains 1 product.

Product 1 of 1
BCE-9000ER Foldbar & Transportabel el-kørestol


HMI-no.
140991
Article-no.
21822

Registration date
01-08-2024
Last updated
11-09-2025

Properties
Programmable
No
Elevating seat
No
Powered recline
Yes
Powered tilt
No
Powered legrests
No
Optional motorized attendant control
No
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
No

Measures
User weight, max
160
kg

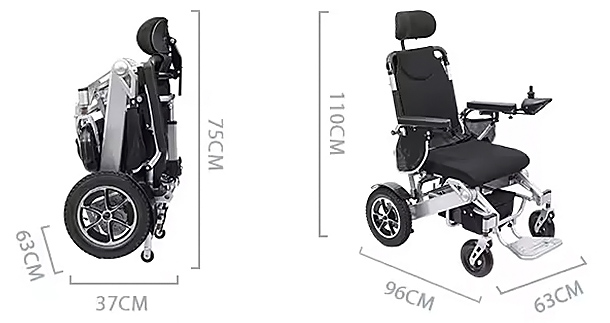

External width
63
cm
Measured where widest
External length
96
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
28
kg
Speed, max
8
km/t
Driving distance range, fully charged
25
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
50
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
50
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.

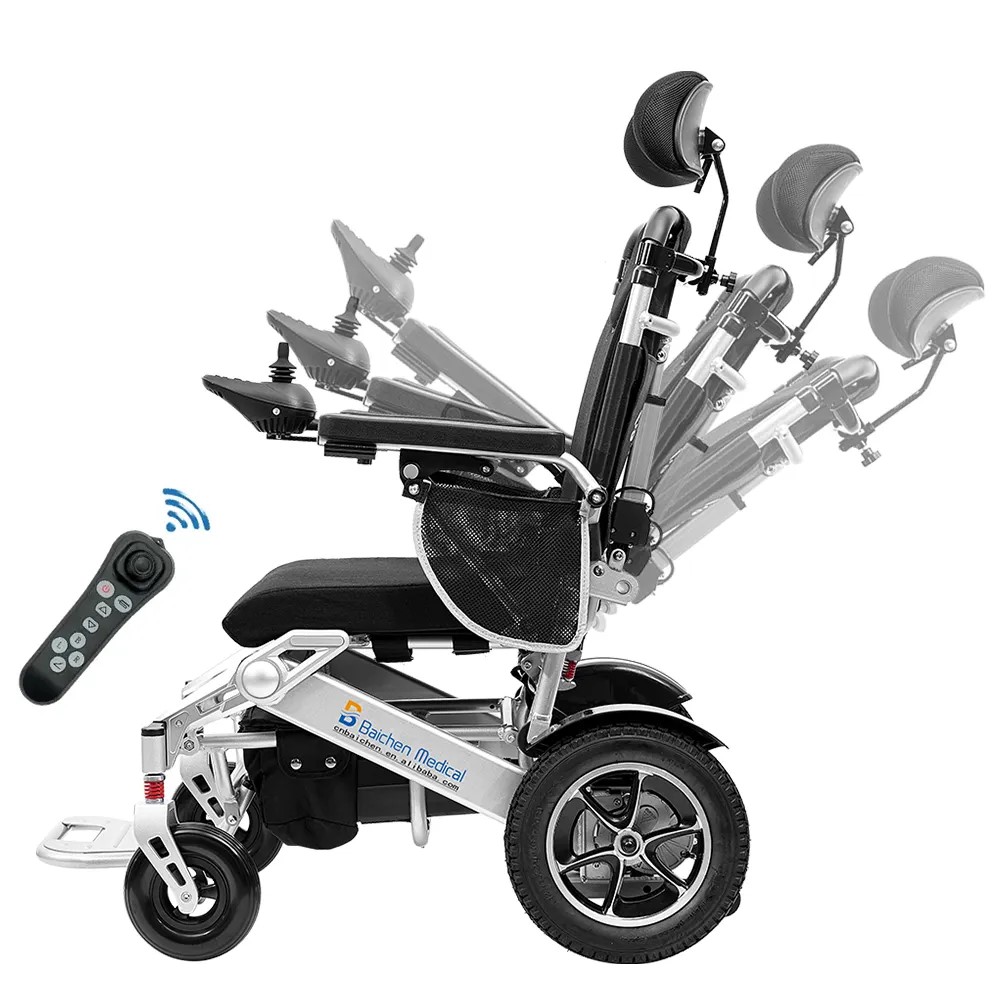

Back rest recline, max
160
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
8
cm
Slope, max
9
°
Climbs obstacles of max
8
cm

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12184:2014: Electrically powered wheelchairs, scooters and their chargers - Requirements and test methods.
Test lab: China CEPREI labortory. Test date: 07-07-2016 Test report for HMI-no. 140991

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
