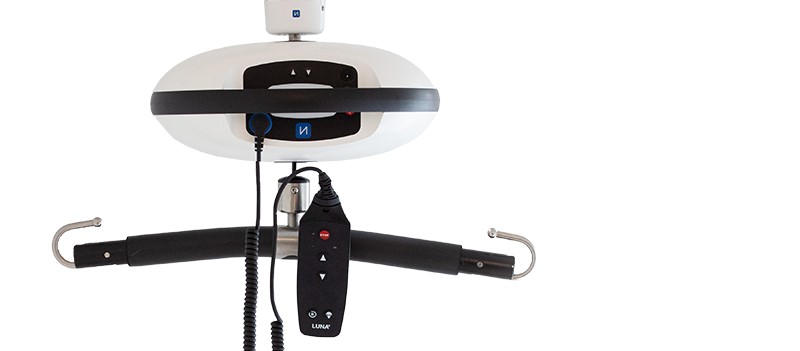

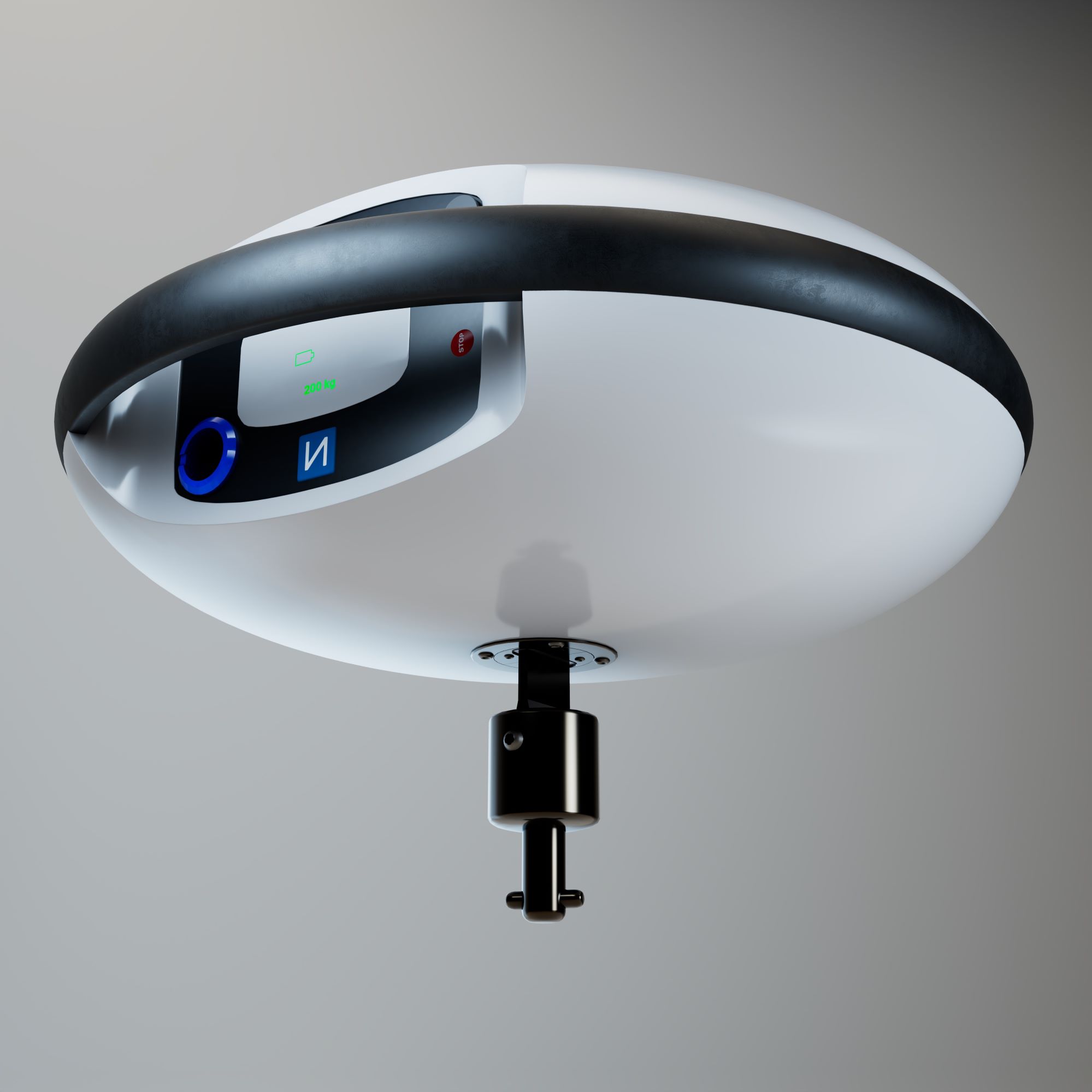

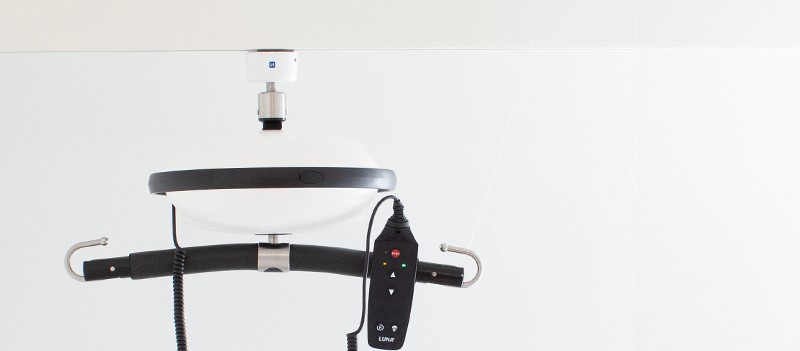

LUNA X5
LUNA X5 is an all-in-one ceiling hoist that can be customised to any care need. From fixed to portable, as well as adjusting the lifting capacity from 150, 200 or 275 kg - all in one flexible solution. Weight 5.2kg.When cable and hook on the hand control are defect, they can be replaced separately. Low CO2 footprint and TCO.
Classification
12 36 12 02 - Stationary hoists fixed to walls, floor or ceiling
The product series contains 1 product.
Product 1 of 1
LUNA X5
HMI-no.
141949
Article-no.
015-03050
Registration date
19-11-2024
Last updated
14-08-2025
Properties
Electrical lifting mechanism
Yes
Electrical horizontal movement
Yes
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
No
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
275
kg
Max lifting velocity, loaded
0.04
m/s
Weight of lifting machinery
5.2
kg
Min. distance from ceiling to central suspension point
39
cm
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 141949
