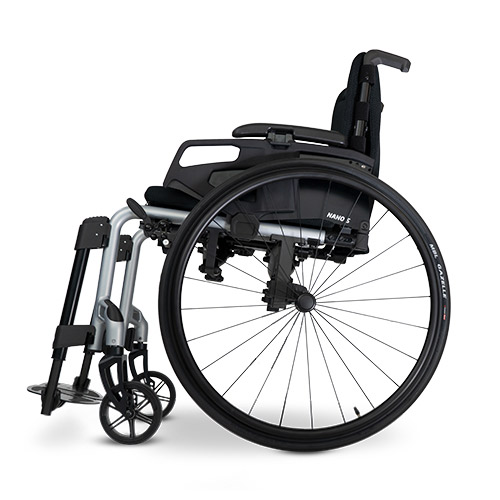

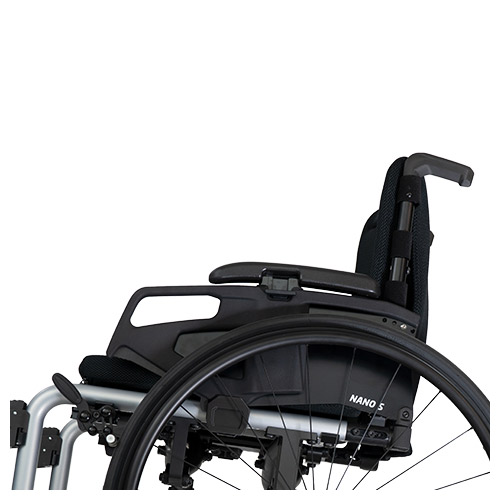

NANO S




Classification
12 22 03 11 - Manual wheelchairs, sideways foldable, standard measures

Documents
Brochure
User manual


The product series contains 9 products.

» Summarize specifications

Product 1 of 9
NANO S, SW 32


HMI-no.
142123
Article-no.
NANO S - SB 32

Registration date
06-12-2024
Last updated
06-01-2026

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
55
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
50
cm
Total length
84
cm
Weight
10
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
32
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142123

Product 2 of 9
NANO S, SW 34


HMI-no.
142126
Article-no.
NANO S - SB 34

Registration date
09-12-2024
Last updated
06-01-2026

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
55
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
52
cm
Total length
84
cm
Weight
10
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
34
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142126

Product 3 of 9
NANO S, SW 36


HMI-no.
142129
Article-no.
NANO S - SB 36

Registration date
09-12-2024
Last updated
06-01-2026

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
55
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
54
cm
Total length
84
cm
Weight
10
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
36
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142129

Product 4 of 9
NANO S, SW 38


HMI-no.
142132
Article-no.
NANO S - SB 38

Registration date
09-12-2024
Last updated
06-01-2026

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
55
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
56
cm
Total length
84
cm
Weight
10
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
38
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142132

Product 5 of 9
NANO S, SW 40


HMI-no.
142135
Article-no.
NANO S - SB 40

Registration date
09-12-2024
Last updated
06-01-2026

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
55
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
58
cm
Total length
84
cm
Weight
10
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
40
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142135

Product 6 of 9
NANO S, SW 42


HMI-no.
142138
Article-no.
NANO S - SB 42

Registration date
09-12-2024
Last updated
06-01-2026

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
55
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
60
cm
Total length
84
cm
Weight
10
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
42
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142138

Product 7 of 9
NANO S, SW 44


HMI-no.
142141
Article-no.
NANO S - SB 44

Registration date
09-12-2024
Last updated
06-01-2026

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
55
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
62
cm
Total length
84
cm
Weight
10
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
44
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142141

Product 8 of 9
NANO S, SW 46


HMI-no.
142144
Article-no.
NANO S - SB 46

Registration date
09-12-2024
Last updated
06-01-2026

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
55
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
64
cm
Total length
84
cm
Weight
10
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
46
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142144

Product 9 of 9
NANO S, SW 48


HMI-no.
142147
Article-no.
NANO S - SB 48

Registration date
09-12-2024
Last updated
06-01-2026

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
55
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
66
cm
Total length
84
cm
Weight
10
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
48
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142147
