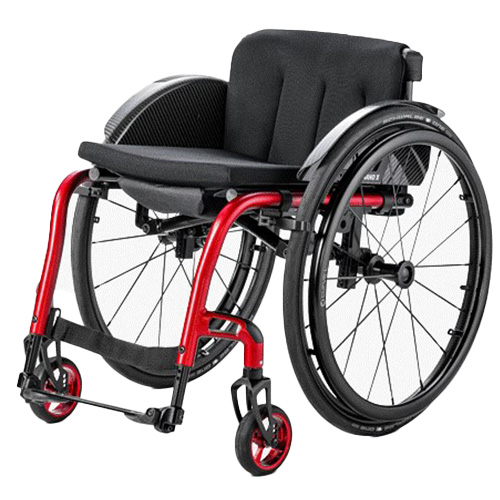

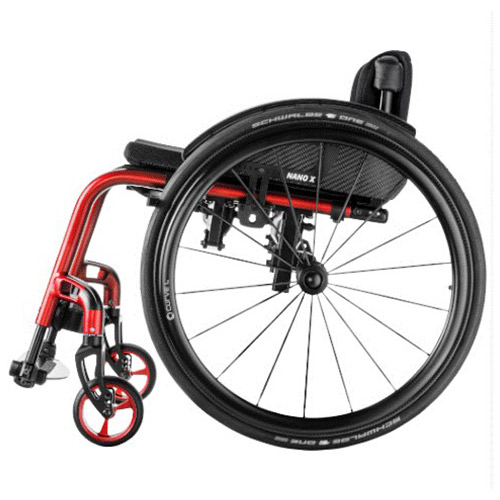

NANO X




Classification
12 22 03 11 - Manual wheelchairs, sideways foldable, standard measures

Documents
Brochure
User manual


The product series contains 9 products.

» Summarize specifications

Product 1 of 9
NANO X, SW 32


HMI-no.
142150
Article-no.
NANO X - SB 32

Registration date
09-12-2024
Last updated
07-11-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
50
cm
Total length
74
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
32
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142150

Product 2 of 9
NANO X, SW 34


HMI-no.
142153
Article-no.
NANO X - SB 34

Registration date
09-12-2024
Last updated
07-11-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
52
cm
Total length
74
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
34
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142153

Product 3 of 9
NANO X, SW 36


HMI-no.
142156
Article-no.
NANO X - SB 36

Registration date
09-12-2024
Last updated
07-11-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
54
cm
Total length
74
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
36
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142156

Product 4 of 9
NANO X, SW 38


HMI-no.
142159
Article-no.
NANO X - SB 38

Registration date
09-12-2024
Last updated
07-11-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
56
cm
Total length
74
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
38
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142159

Product 5 of 9
NANO X, SW 40


HMI-no.
142162
Article-no.
NANO X - SB 40

Registration date
09-12-2024
Last updated
07-11-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
58
cm
Total length
74
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
40
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142162

Product 6 of 9
NANO X, SW 42


HMI-no.
142165
Article-no.
NANO X - SB 42

Registration date
09-12-2024
Last updated
07-11-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
60
cm
Total length
74
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
42
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142165

Product 7 of 9
NANO X, SW 44


HMI-no.
142168
Article-no.
NANO X - SB 44

Registration date
09-12-2024
Last updated
07-11-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
62
cm
Total length
74
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
44
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142168

Product 8 of 9
NANO X, SW 46


HMI-no.
142171
Article-no.
NANO X - SB 46

Registration date
09-12-2024
Last updated
07-11-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
64
cm
Total length
74
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
46
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142171

Product 9 of 9
NANO X, SW 48


HMI-no.
142174
Article-no.
NANO X - SB 48

Registration date
09-12-2024
Last updated
07-11-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
45
cm
Seat height, max
53
cm
Back rest height, min
25
cm
Back rest height, max
45
cm
Total width
66
cm
Total length
74
cm
Weight
9
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
48
cm
Seat depth, min
38
cm
Possibly by adjustment
Seat depth, max
38
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142174
