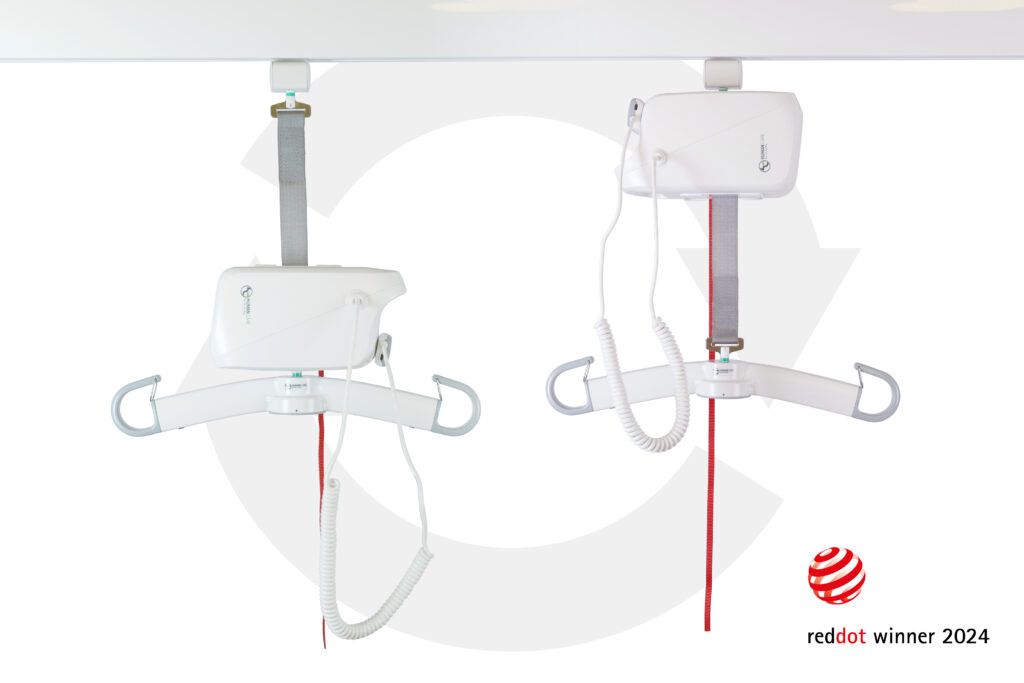

Cosmos
Classification
12 36 12 02 - Stationary hoists fixed to walls, floor or ceiling
The product series contains 1 product.
Product 1 of 1
Cosmos
HMI-no.
142212
Article-no.
Cosmos 150
Registration date
12-12-2024
Last updated
19-12-2024
Properties
Ingress protection class for water
IPX5
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
No
Door transition with manual handling
No
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
150
kg
Max lifting velocity, loaded
0.1
m/s
Weight of lifting machinery
6.1
kg
Min. distance from ceiling to central suspension point
25
cm
Maintenance frequency
12
måneder
Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
: Tested according to other national or international standard.
Test lab: Intertek. Test date: 22-08-2019
Test report for HMI-no. 142212
Test lab: Intertek. Test date: 22-08-2019
Test report for HMI-no. 142212EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 142212
