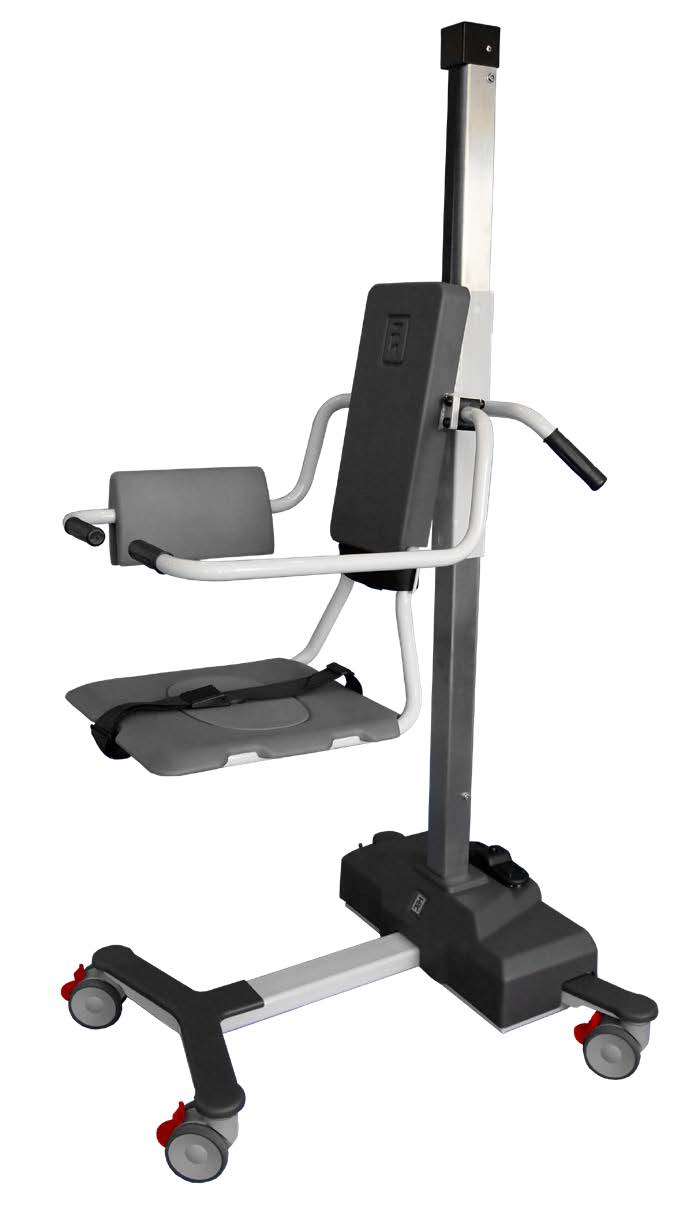

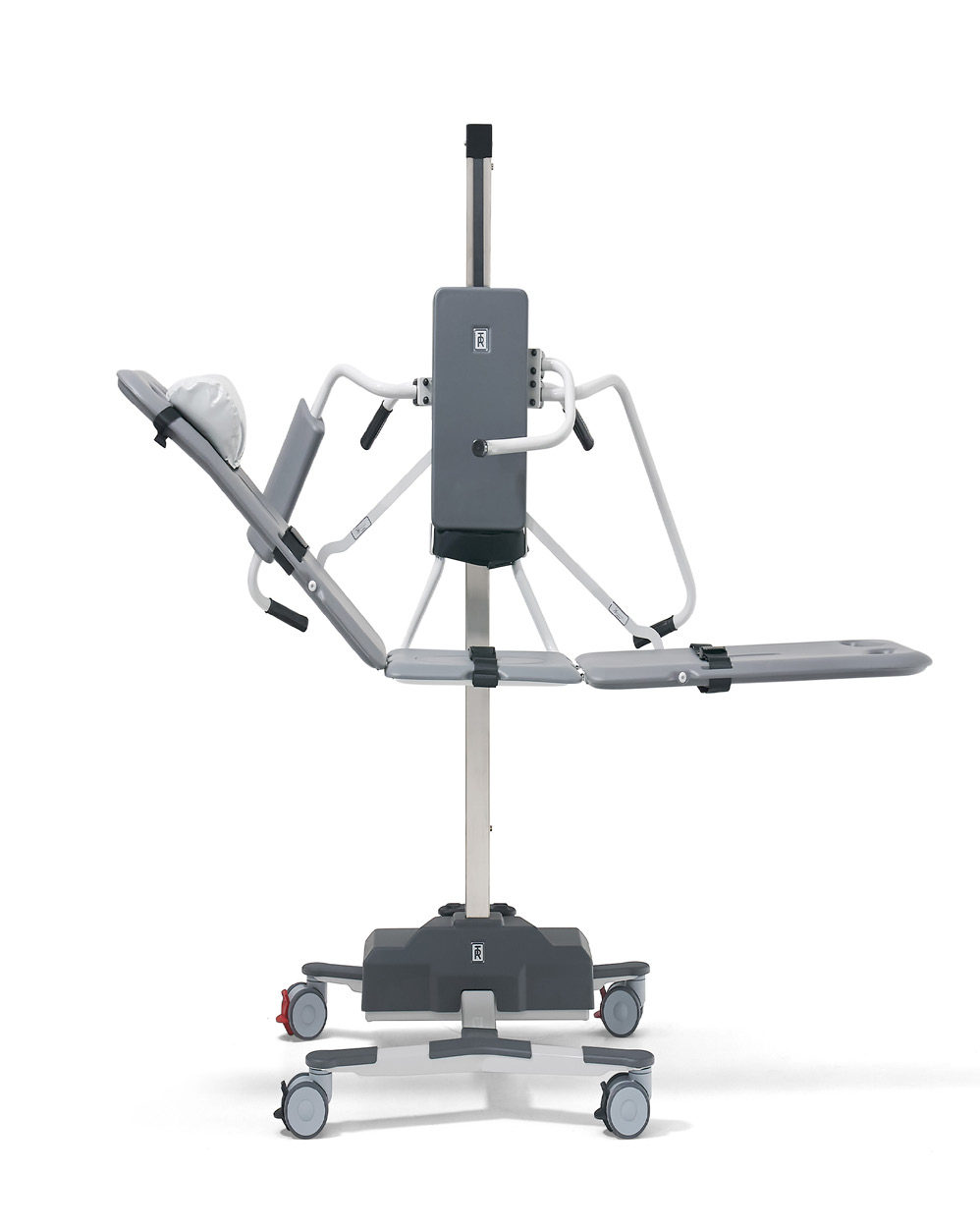

TR 9650 Mobile Bath Lift System
Classification
12 36 09 01 - Mobile hoists for transferring a person in lying position
Documents
BrochureThe product series contains 3 products.
Specifications summarized
Specifications for the 3 products in the product series. Click a HMI-no. to see all details for a single product.| Product 1 - 3 | |||
|---|---|---|---|
| Specification/HMI-no. | 143015 | 143018 | 143019 |
Ingress protection class for water  0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529) | IPX5 | IPX5 | IPX5 |
| Electrical lifting mechanism | Yes | Yes | Yes |
| Width adjustment of base | No | No | No |
| Electrical width adjustment of base | No | No | No |
| Parallel width adjustment of base | No | No | No |
| Foldable | No | No | No |
| Can be disassembled without tools | No | No | No |
| Integrated battery charger | Yes | Yes | Yes |
| Emergency lowering function | No | No | No |
| User weight, max (kg) | 150 | 150 | 150 |
| Support platform height, min (cm) | 19.5 | 19.5 | 19.5 |
| Support platform height, max (cm) | 96.5 | 96.5 | 96.5 |
| Support platform length (cm) | 56 | 194 | 194 |
| Support platform width (cm) | 45.5 | 45.5 | 45.5 |
| Internal width of base, max (cm) | 56 | 56 | 56 |
| External width, max (cm) | 88 | 88 | 88 |
| Height of base at front (cm) | 10 | 10 | 10 |
| Turning diameter (cm) | 44 | 92 | 44 |
| Weight of heaviest main part (kg) | 60 | 76 | 63 |
| Maintenance frequency (måneder) | 12 | 12 | 12 |
