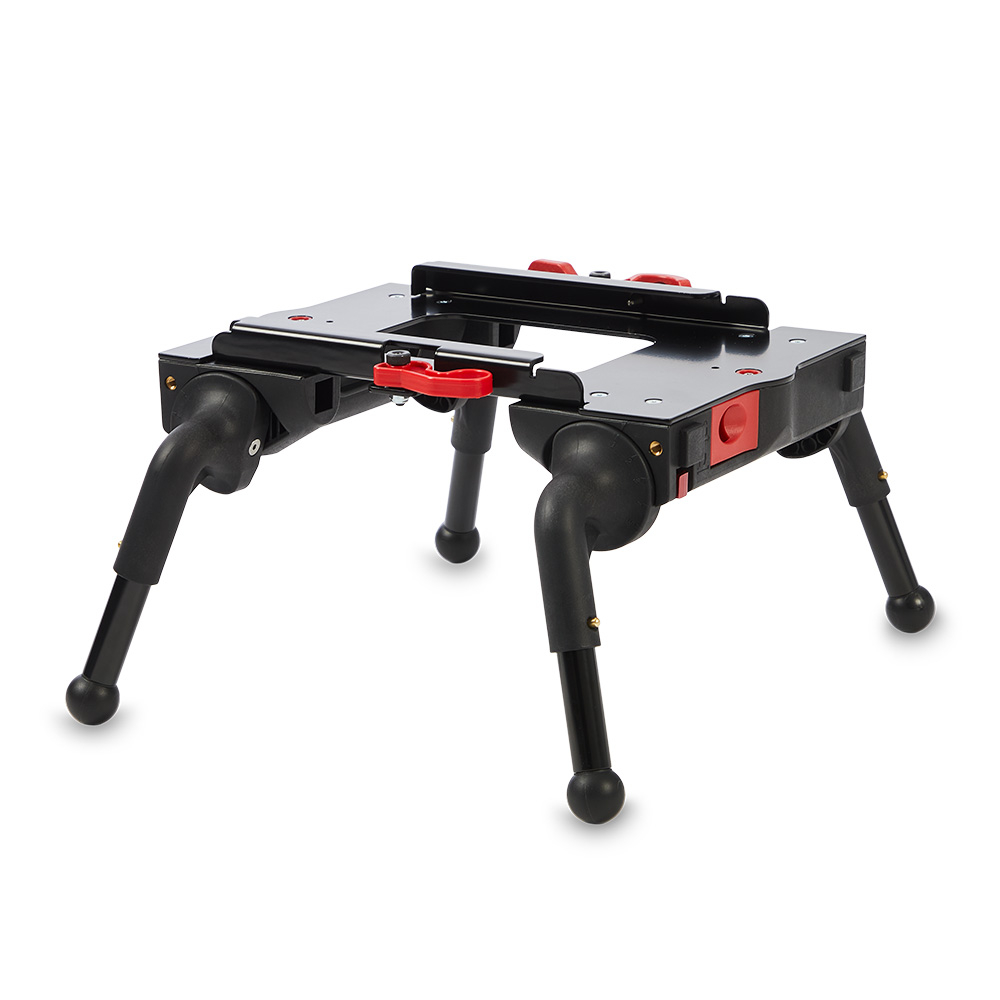

R82 Floor Frame height adjustable

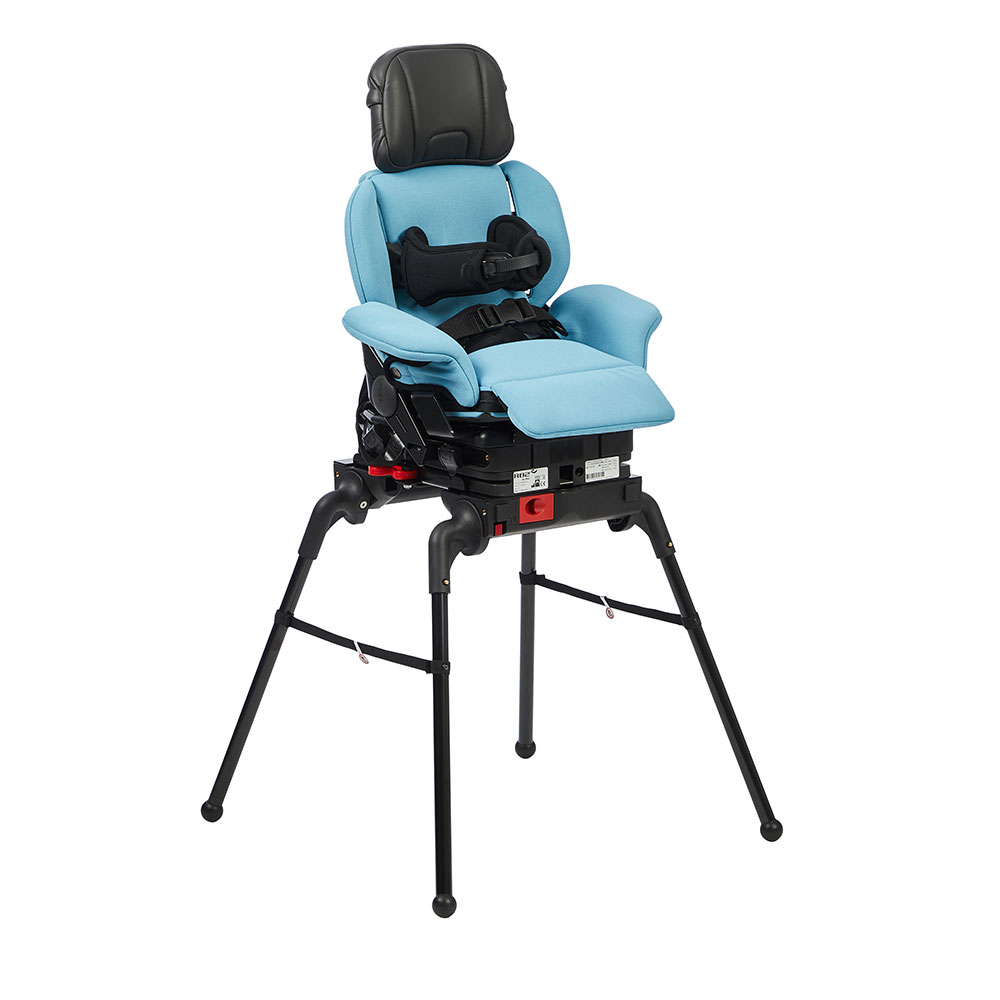

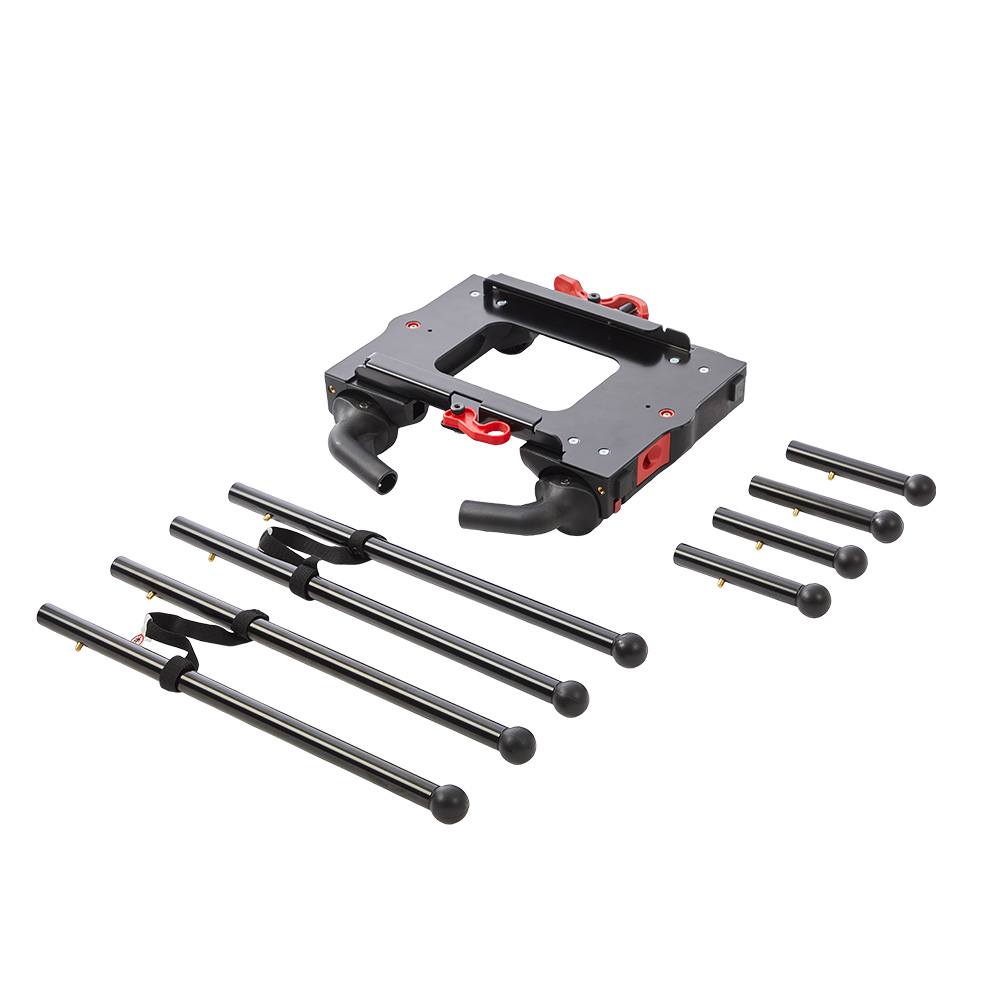

Floor Frame is a frame supporting early intervention through the option of supported floor sitting. The frame has 4 different seat to floor heights, when the seat is level, and a variety of tilt angles to accommodate different leg lengths. A set of four long legs are also available with the floor frame.

Classification
12 22 18 06 - Frames for wheelchairs

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
Floor Frame height adjustable


HMI-no.
143066
Article-no.
31821111

Registration date
17-01-2025
Last updated
11-09-2025

Properties
Can be subsequently equipped with propulsion unit
No
Can be mounted on a stair climber
No
Intended for fastening in a car
No
Height adjustable
Yes
Indoor use
Yes
Outdoor use
No
Push handles
No

Measures
Total width
39.6
cm
The narrowest possible configuration.
Total length
52.5
cm
Weight
3
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
43.5
kg
Including seat, accessories, and person.
Height, min
19.2
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
45
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
25
°
Measured from the horizontal position.
Tilt-in-space back
25
°
Measured from the horizontal position.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 143066
