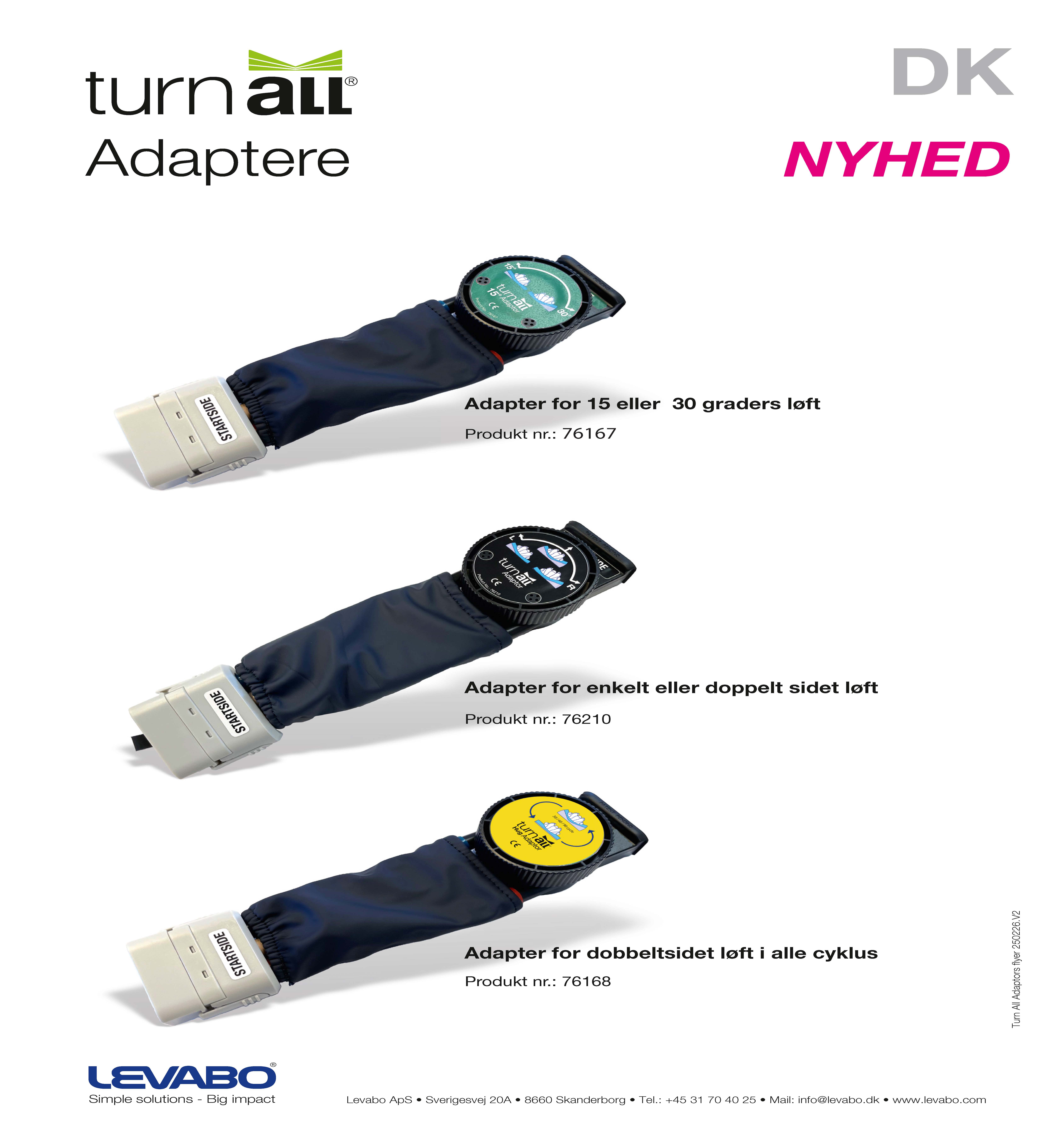

Turn All - Adapter 15/30 dg, Single side tilt L/R and Hug
Turn All Adapter, serie of turn all adapters for:
- individual mattress tilt on the left or right side and with the option of static hug
- 15 or 30 dg tilt
- Hug in interval of 30/60/90 min.
- individual mattress tilt on the left or right side and with the option of static hug
- 15 or 30 dg tilt
- Hug in interval of 30/60/90 min.
Classification
12 31 03 23 - Powered sliding and turning products
Documents
The product series contains 3 products.
Product 1 of 3
Turn All Adapter for 15/30 degree tilt
HMI-no.
144150
Article-no.
76167
Registration date
08-04-2025
Last updated
16-04-2025
Properties
Ingress protection class for water
IPX1
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Positioning by means of
mekanisk bev.
Intended for use in hospitals
Yes
Intended for use in nursing institutions
Yes
Intended for use in a domestic area
Yes
Can also be used in adjusted positions of the support surface
Yes
Placed under the mattress
No
Placed on top of the mattress
No
Secured in or on the bed
No
Automated tilt function
Yes
Possibility for setting automated cycle for e.g. time interval and tilt.
Measures
Length
27
cm
Width
6.5
cm
User weight, max
400
kg
Load, max
400
kg
User weight, mattress and other accessories.
Intended for mattress length, max.
220
cm
Intended for mattress width, max.
110
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 144150Product 2 of 3

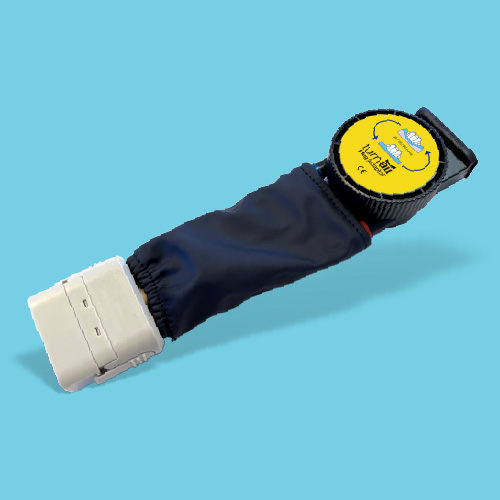

Turn All Adapter Hug in cyclus 30/60/90
HMI-no.
144152
Article-no.
76168
Registration date
08-04-2025
Last updated
16-04-2025
Properties
Ingress protection class for water
IPX1
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Positioning by means of
mekanisk bev.
Intended for use in hospitals
Yes
Intended for use in nursing institutions
Yes
Intended for use in a domestic area
Yes
Can also be used in adjusted positions of the support surface
Yes
Placed under the mattress
No
Placed on top of the mattress
Yes
Secured in or on the bed
No
Automated tilt function
Yes
Possibility for setting automated cycle for e.g. time interval and tilt.
Measures
Length
26
cm
Width
6.5
cm
User weight, max
400
kg
Load, max
400
kg
User weight, mattress and other accessories.
Intended for mattress length, max.
220
cm
Intended for mattress width, max.
110
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 144152Product 3 of 3

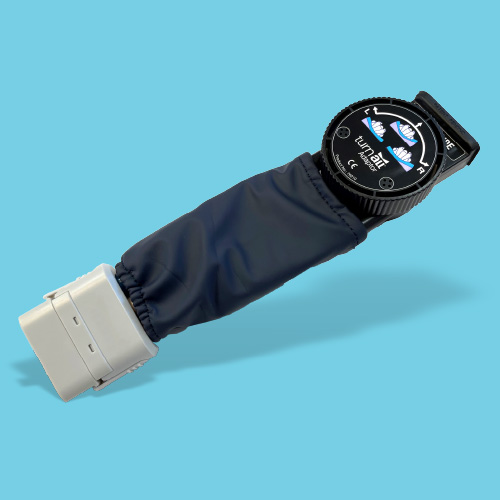

Turn All Adapter single side tilt L/R Hug
HMI-no.
144151
Article-no.
76210
Registration date
08-04-2025
Last updated
16-04-2025
Properties
Ingress protection class for water
IPX1
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Positioning by means of
mekanisk bev.
Intended for use in hospitals
Yes
Intended for use in nursing institutions
Yes
Intended for use in a domestic area
Yes
Can also be used in adjusted positions of the support surface
Yes
Placed under the mattress
No
Placed on top of the mattress
Yes
Secured in or on the bed
No
Automated tilt function
Yes
Possibility for setting automated cycle for e.g. time interval and tilt.
Measures
Length
26
cm
Width
6.5
cm
User weight, max
400
kg
Load, max
400
kg
User weight, mattress and other accessories.
Intended for mattress length, max.
220
cm
Intended for mattress width, max.
110
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 144151
