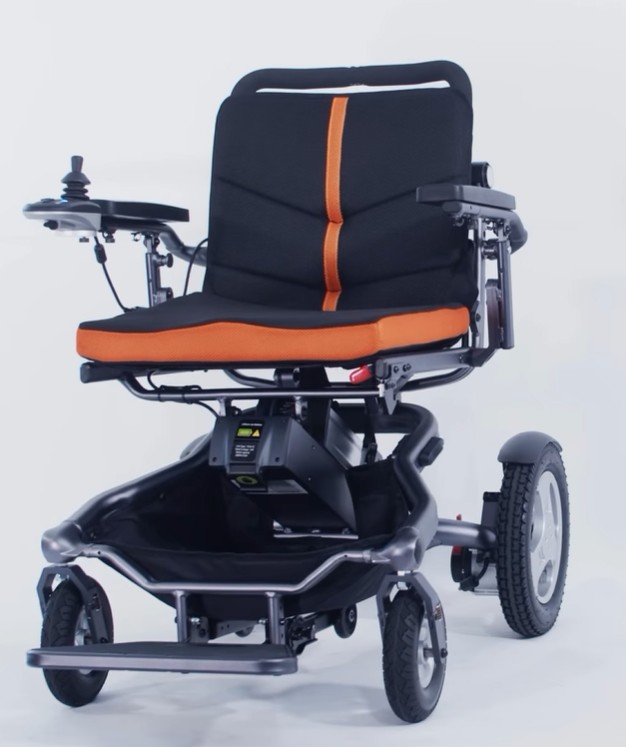

SmartChair Max Mini



SmartChair Max Mini is compact and designed for easy navigation in confined spaces. Suitable for frequent use indoors or in urban settings. Combines small size with high maneuverability.
Supplied as standard with one battery (up to 15 km range), with the option to purchase an additional battery (up to 30 km total range).

Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)



The product series contains 1 product.

Product 1 of 1
SmartChair Max Mini


HMI-no.
144359
Article-no.
PL001-8001S

Registration date
02-05-2025
Last updated
06-05-2026

Properties
Programmable
Yes
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
No

Measures
User weight, max
150
kg
External width
56
cm
Measured where widest
External length
101
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
32.5
kg
Speed, max
7.5
km/t
Driving distance range, fully charged
30
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
60
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
60
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
108
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
7
cm
Slope, max
6
°
Climbs obstacles of max
6
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 144359
