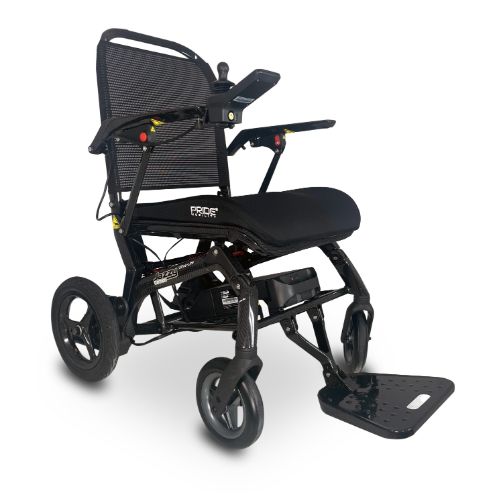

Jazzy Carbon Ultra Lite

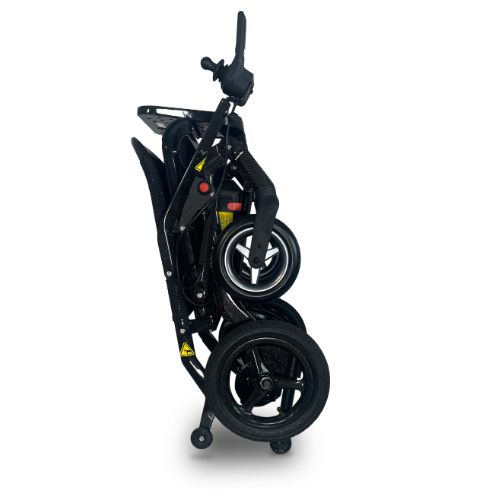

Carbon fiber power wheelchair only about 14.5 kg without the battery. Top speed approx. 6.4 km/h and a range of up to 20 km per charge. Folds and is travel-friendly for car, train, or plane. Maximum user weight up to 136 kg. Used as a travel or everyday chair thanks to its compact size and mobility.

Classification
12 23 03 05 - Powered wheelchair, manual steering, class A (primarily for indoor use)

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
Jazzy Carbon Ultra Lite


HMI-no.
146631
Article-no.
HF-HP200-PT23

Registration date
02-12-2025
Last updated
15-01-2026

Properties
Number of wheels
4
Programmable
Yes
Suspension
Yes
Can be used as seat in a car
No
Can be disassembled without tools
No
With cubicle
No

Measures
User weight, max
125
kg
Width
62
cm
Maximum external width.
Length
80
cm
Maximum external length without extra accessories.
Weight
14.5
kg
Seat height, min
48
cm
The vertical distance between the foot rest and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
48
cm
The vertical distance between the foot rest and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Speed, max
6.4
km/t
Driving distance range, fully charged
10
km
The theoretical driving distance range as calculated through laboratory testing.
Ground clearance
12
cm
Slope, max
9
°
Climbs obstacles of max
4
cm
Weight of heaviest main part
14
kg

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 146631
