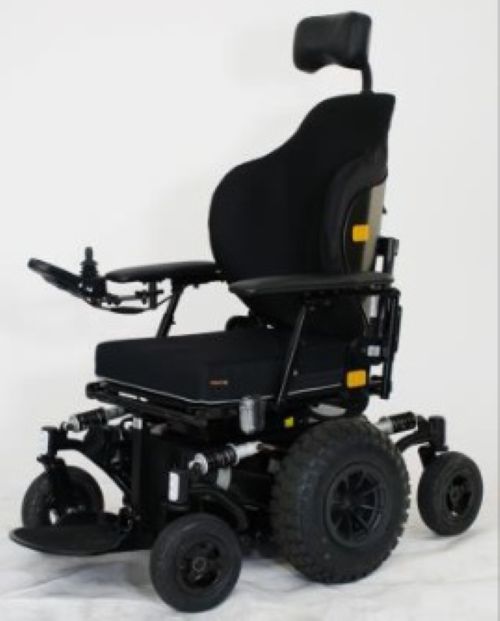

TA iQ MWD LC

TA iQ MWD LC

Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
User manual


The product series contains 1 product.

Product 1 of 1
TA iQ MWD LC


HMI-no.
146968
Article-no.
97056

Registration date
08-01-2026
Last updated
12-01-2026

Properties
Programmable
Yes
Elevating seat
Yes
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
Yes
Rear-wheel-driven
No
Can be used as seat in a car
Yes

Measures
User weight, max
140
kg
External width
63
cm
Measured where widest
External length
110
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
145
kg
Speed, max
15
km/t
Driving distance range, fully charged
45
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
40
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
70
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
50
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
45
°
Measured from the horizontal position.
Ground clearance
8
cm
Slope, max
10
°
Climbs obstacles of max
8
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
EU declaration of conformity for HMI-no. 146968
