FreeStand - fritstående enkeltskinnesystem




Classification
12 36 18 03 - Stationary free-standing hoists

Documents
User manual


The product series contains 1 product.

Product 1 of 1

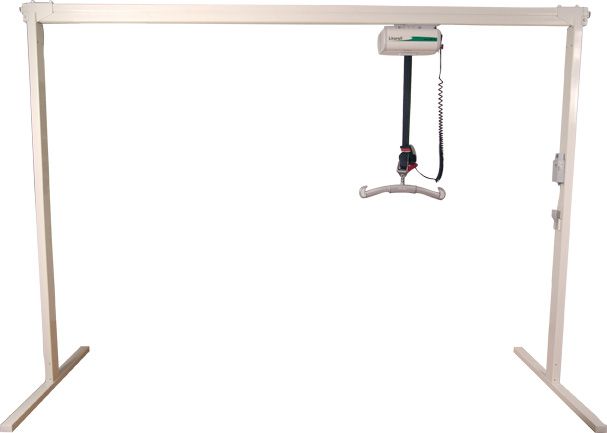

FreeStand - Straight rail system, 3,2 m


HMI-no.
147605
Article-no.
1000-3104001-32

Registration date
19-02-2026
Last updated
23-02-2026

Properties
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Room covering rail system
No
External battery charger
Yes
Charging station at track
Yes
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
No

Measures
User weight, max
200
kg
Max lifting velocity, loaded
0.5
m/s
Max length of rail
320
cm
Min. length of rail
200
cm
Max height to top of rail
230.2
cm
Min. height to top of rail
230.2
cm
Min. distance from top of rail to central suspension point
304
cm
Weight of lifting machinery
12.5
kg
Ingress protection class for water
3
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
Exclusively within the general product safety regulation/directive and without CE marking
