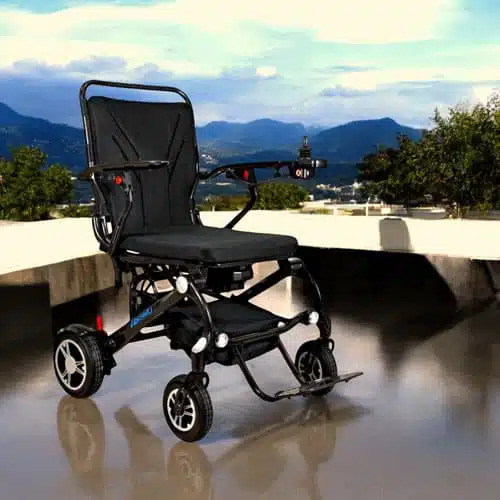

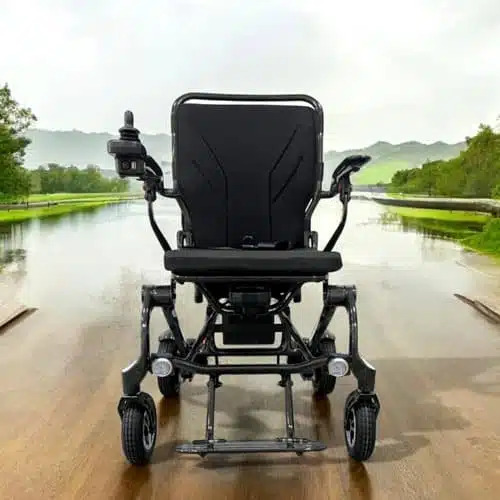

Libercar Karbon



Electric wheelchair made of carbon fiber with joystick control, weighs 15.2 kg without battery, equipped with two 250 W motors, maximum load capacity 136 kg, suitable for transport, air travel, indoor and outdoor use.

Classification
12 23 06 07 - Powered wheelchairs, powered steering, class A (primarily for indoor use)

Documents
User manual


The product series contains 1 product.

Product 1 of 1
Libercar Karbon


HMI-no.
147790

Registration date
18-03-2026
Last updated
23-06-2026

Properties
Programmable
No
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Optional motorized attendant control
No
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
No

Measures
User weight, max
136
kg
External width
62
cm
Measured where widest
External length
94
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
16.9
kg
Speed, max
8
km/t
Driving distance range, fully charged
16
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
50
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
50
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
0
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
3
cm
Slope, max
12
°
Climbs obstacles of max
3
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 147790
