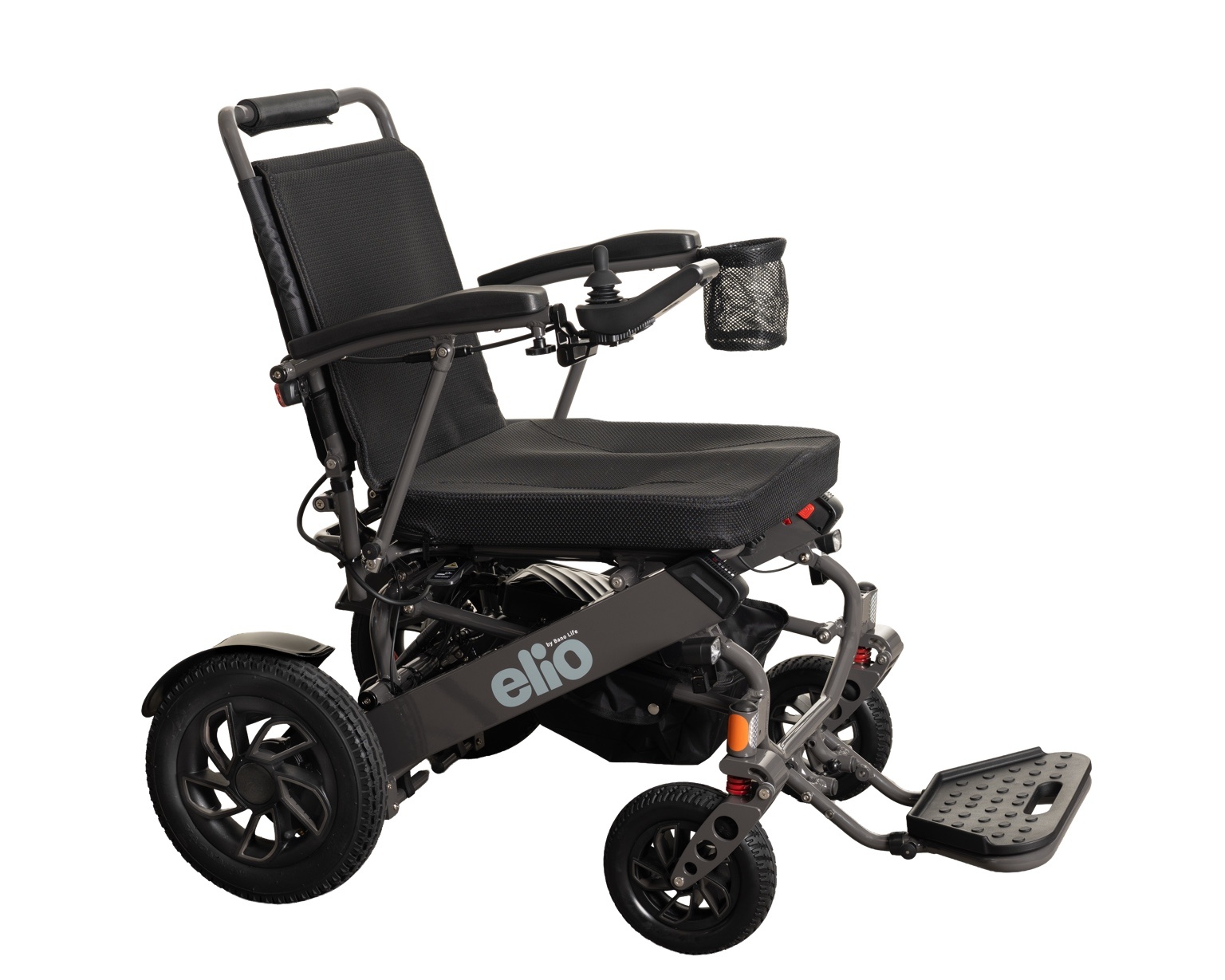

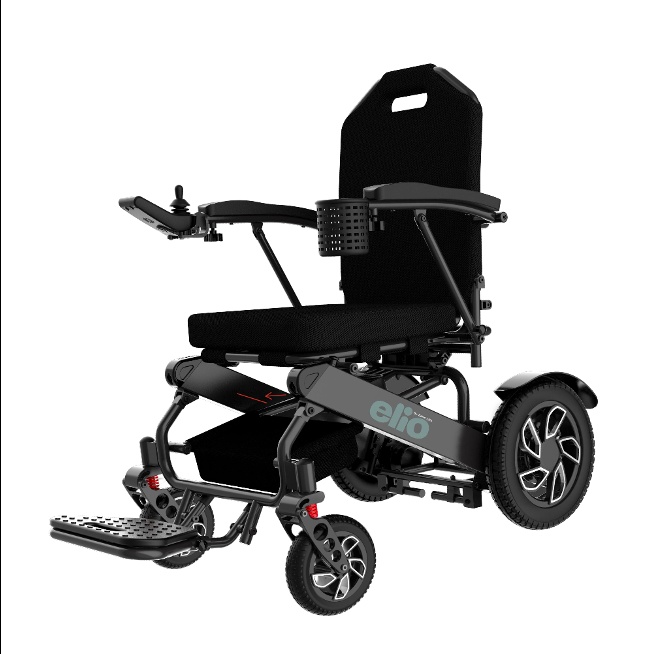

Elio Core

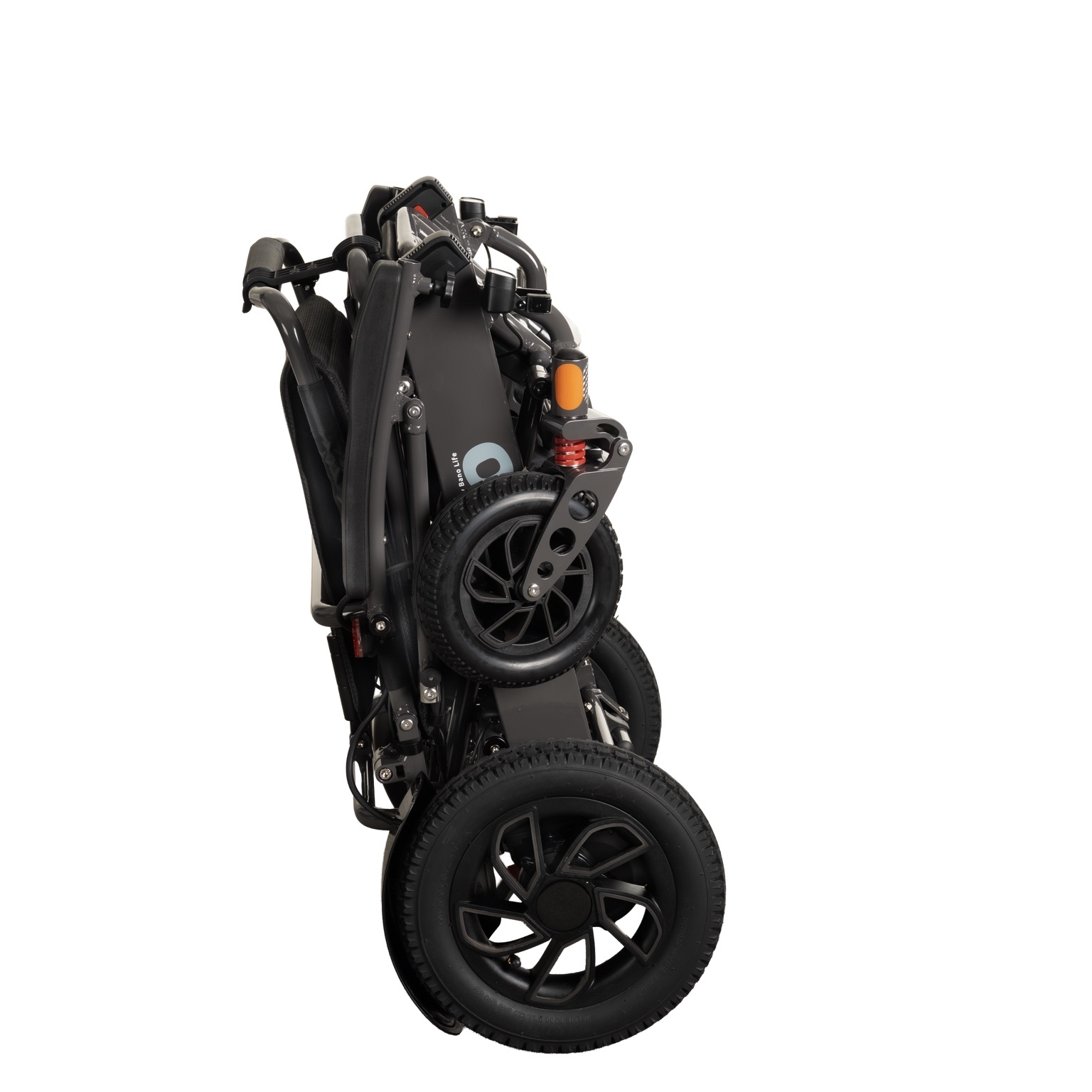

Foldable electric wheelchair with adjustable backrest, suspension front wheels, and removable rear wheels. Maximum user weight: 180 kg, range: up to 30 km.

Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
Brochure
User manual
QuickGuide
Accessories catalogue
Spare part catalogue
Service manual

Video
Play video


The product series contains 1 product.

Product 1 of 1
Elio Core


HMI-no.
148286
Article-no.
D26

Registration date
29-05-2026
Last updated
29-06-2026

Properties
Programmable
Yes
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
No

Measures
User weight, max
180
kg
External width
60
cm
Measured where widest
External length
115
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
27.5
kg
Speed, max
6.5
km/t
Driving distance range, fully charged
30
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
55
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
55
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
120
°
Recline of back rest from an upright position.
Tilt-in-space forward
102
°
Measured from the horizontal position.
Tilt-in-space back
120
°
Measured from the horizontal position.
Ground clearance
9.5
cm
Slope, max
8
°
Climbs obstacles of max
5
cm

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12184:2022: Electrically powered wheelchairs, scooters and their chargers - Requirements and test methods.
Test lab: SGS. Test date: 12-12-2023 Test report for HMI-no. 148286

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 148286
