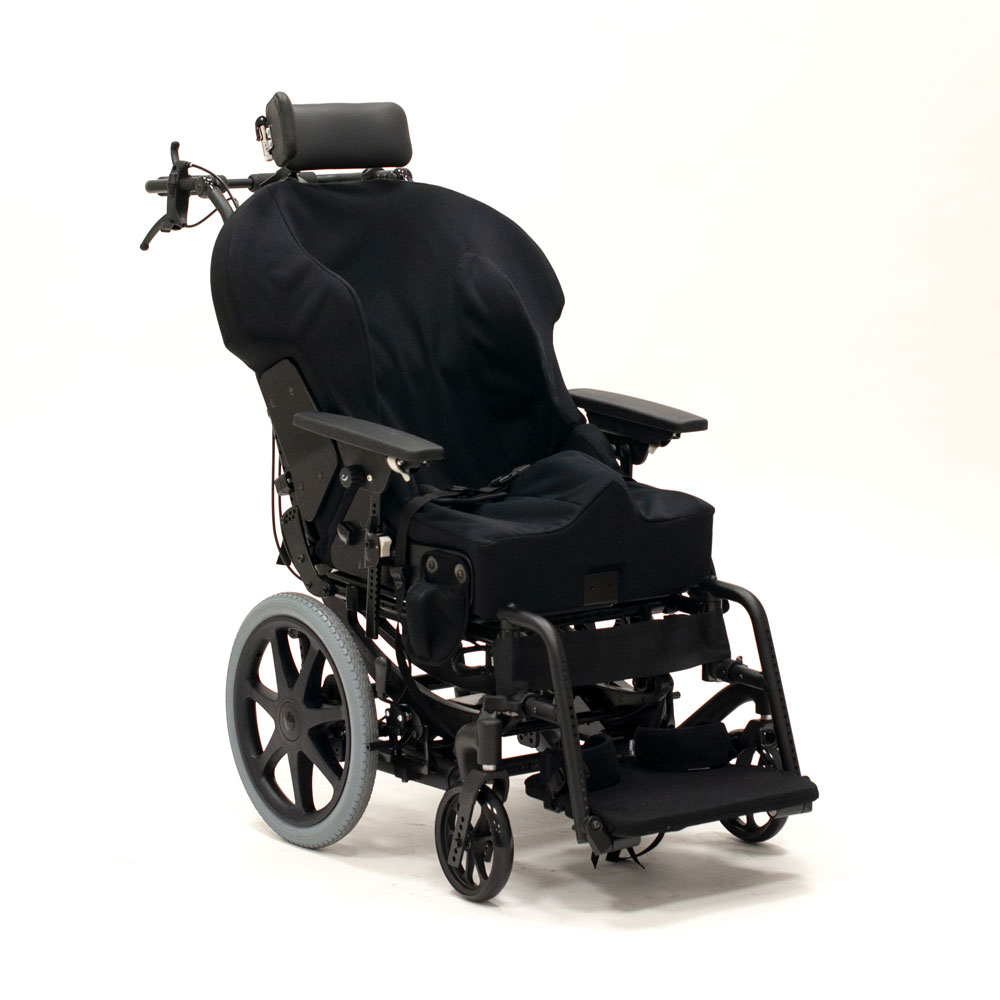

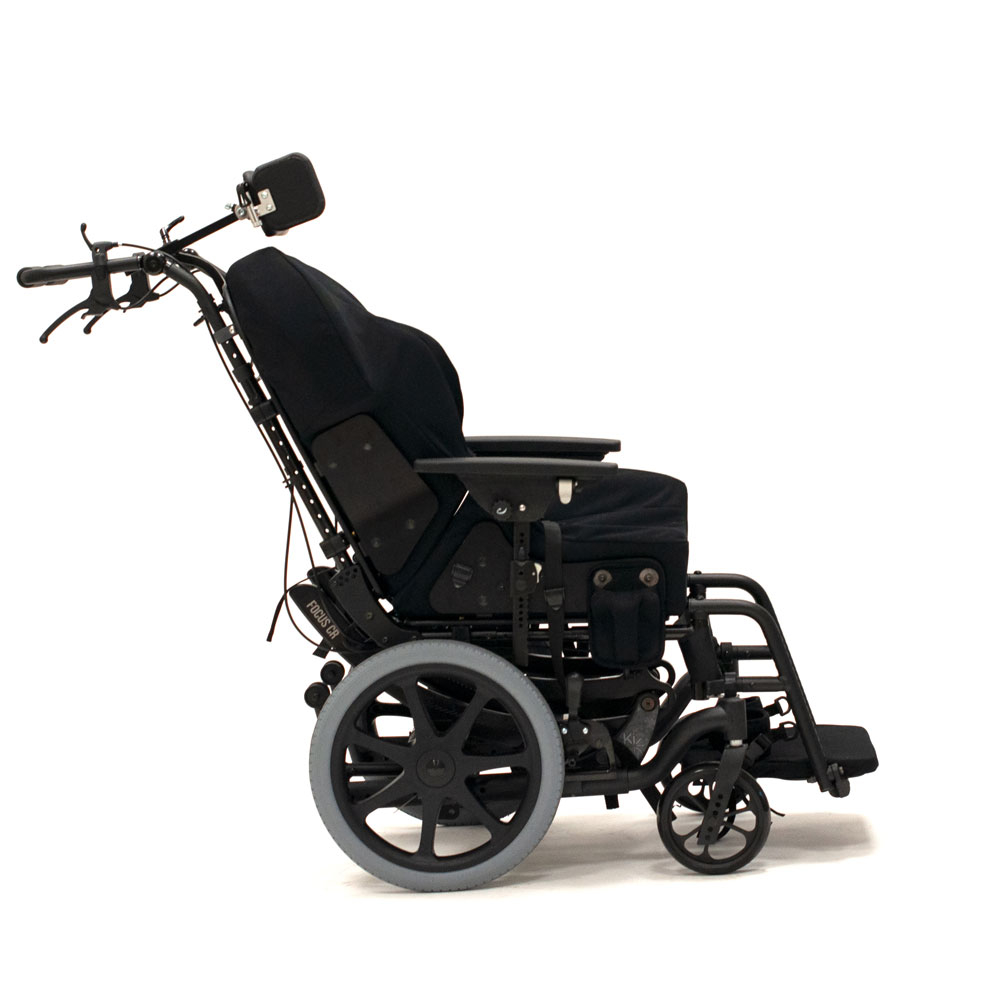

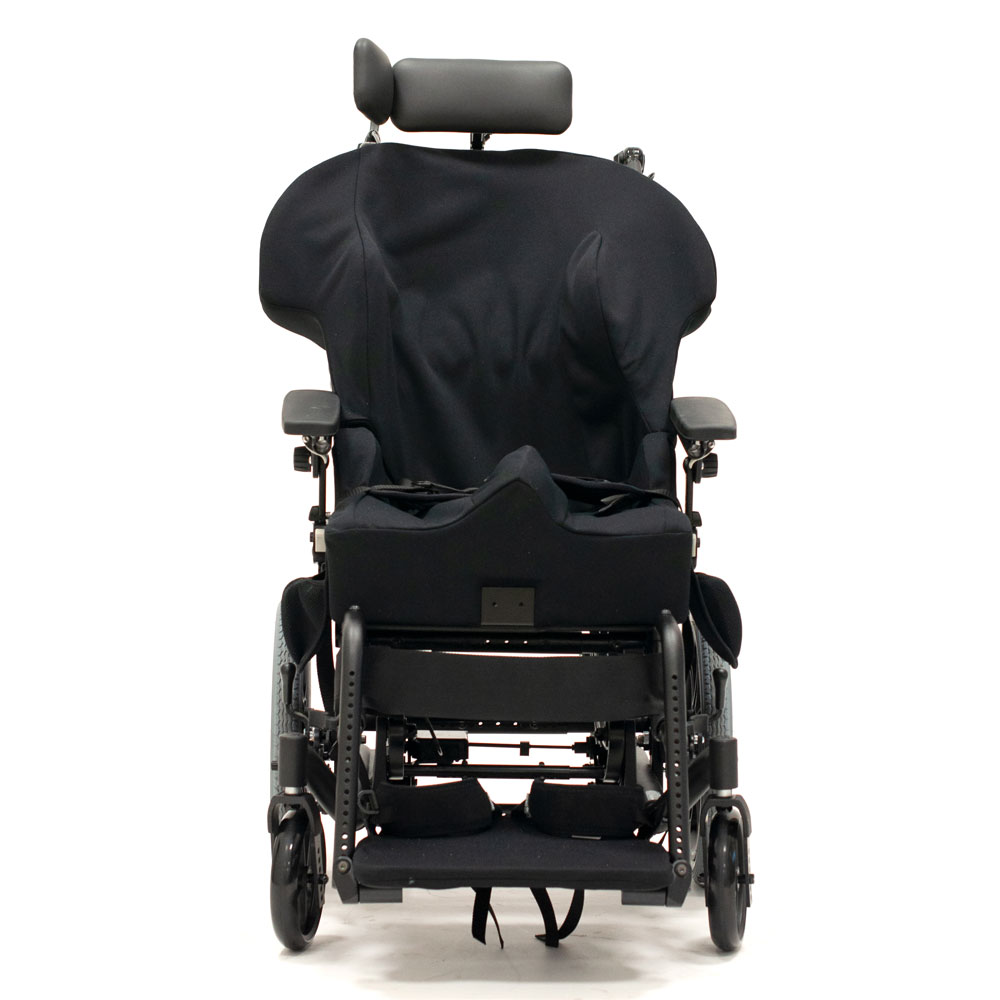

KI Focus CR frame



The Focus CR frame is a tilt-in-space frame with a 50-degree backward tilt, with an adjustable stop. Numerous integrated functions and intuitive adjustment options make it possible to adapt the frame to the individual users needs. These include adjustment of the center of gravity in relation to the seat angle, as well as balance adjustment.

Classification
12 22 18 06 - Frames for wheelchairs

Documents
Brochure


The product series contains 1 product.

Product 1 of 1
Focus CR frame


HMI-no.
148354
Article-no.
KI13901516

Registration date
12-06-2026
Last updated
01-10-2026

Properties
Can be subsequently equipped with propulsion unit
Yes
Can be mounted on a stair climber
Yes
Intended for fastening in a car
Yes
Height adjustable
No
Indoor use
Yes
Outdoor use
Yes
Push handles
Yes

Measures
Total width
71
cm
The narrowest possible configuration.
Total length
102.5
cm
Weight
25
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
136
kg
Including seat, accessories, and person.
Height, min
37.5
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
37.5
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
50
°
Measured from the horizontal position.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
Exclusively within the general product safety regulation/directive and without CE marking
