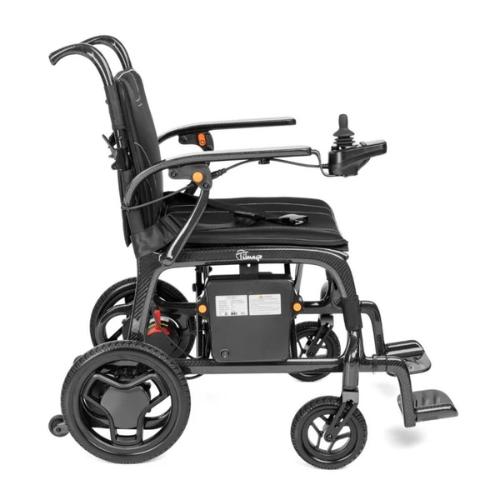

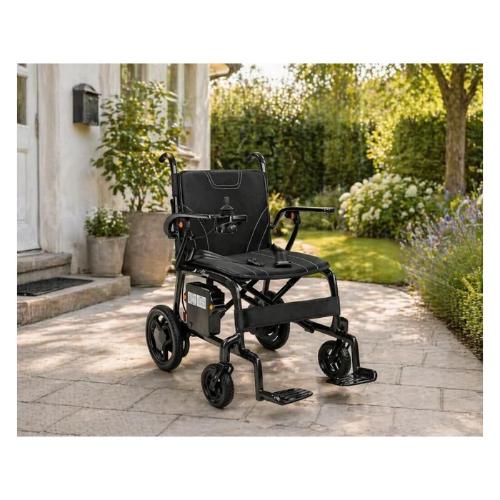

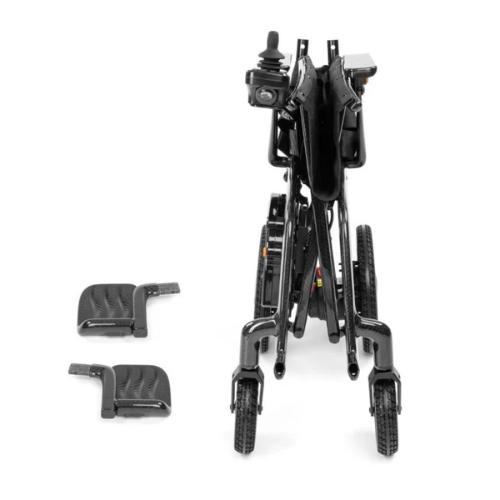

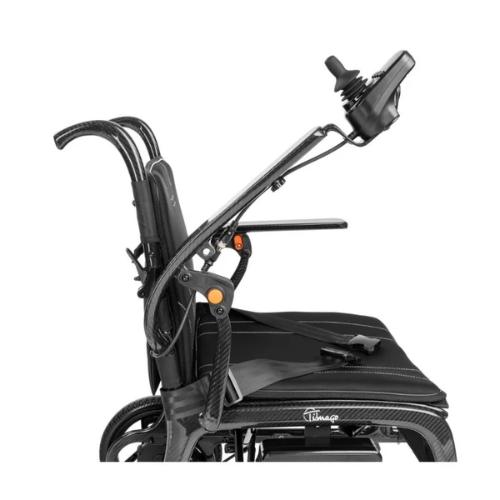

FLY TIM Electric Wheelchair



Carbon fiber electric wheelchair weighing 10.9 kg (excluding battery, footrests and cushion). Can be carried on airplanes. For both indoor and outdoor use.

Classification
12 23 06 07 - Powered wheelchairs, powered steering, class A (primarily for indoor use)



The product series contains 1 product.

Product 1 of 1
FLY TIM Electric Wheelchair


HMI-no.
149557
Article-no.
FLY TIM

Registration date
14-09-2026
Last updated
15-09-2026

Properties
Programmable
No
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Optional motorized attendant control
No
Suspension
No
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
No

Measures
User weight, max
115
kg
External width
59
cm
Measured where widest
External length
89
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
13.8
kg
Speed, max
4.5
km/t
Driving distance range, fully charged
15
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
51
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
51
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
0
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
5
cm
Slope, max
6
°
Climbs obstacles of max
10
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 149557
