bed supportrail
Classification
18 12 28 02 - Grab handles for beds
Documents
The product series contains 1 product.

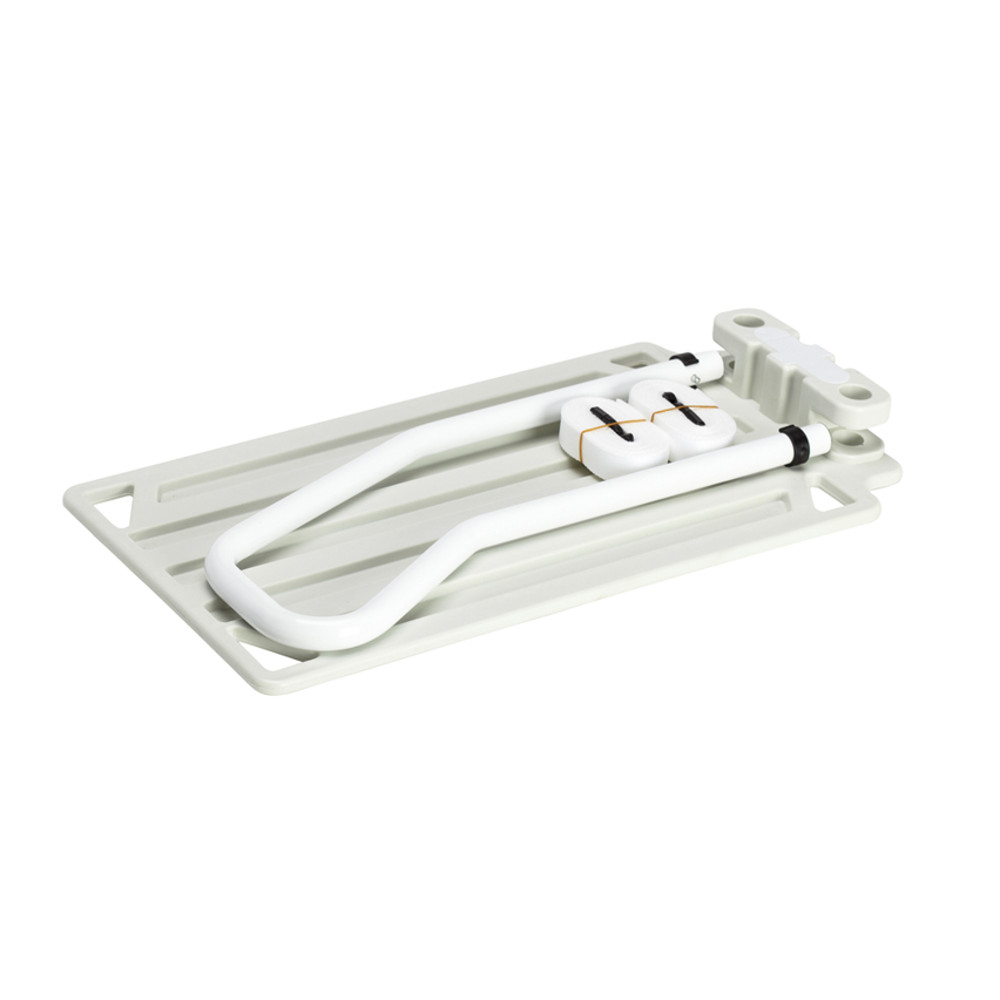

bedside support rail
HMI-no.
Article-no.
311815
Registration date
23-08-2022
Last updated
21-11-2023
Properties
Only intended for use with specific products
No
Removable without tools
No
Vertical foldable
No
Indicates whether folding takes place with a vertical movement lowering the upper point of the grab handle
Lateral foldable
No
Indicates whether folding takes place with a movement both lowering and laterally moving the upper point of the grab handle along the bed
Rotational foldable
No
Indicates whether folding takes place with a 180 degrees rotational movement of the grab handle pivoting around its lower fixation point
Can be used in the left side of the bed
Yes
Can be used in the right side of the bed
Yes
Mounted directly on the mattress support platform
No
Indicates whether the grab handle follows the angle adjustment of the mattress support platform
Measures
Height
54
cm
Measured from the mattress support platform (without mattress) to the upper point of the grab handle. If the grab handle can be used with more beds, the measure gives the height when used with the bed giving the smallest measure
Length
78
cm
Test information ![info](/en/img/i.svg)
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12182:2012: Assistive products for persons with disability - General requirements and test methods.
Test lab: Centre for Testing and Certification MECH-TEST. Test date: 20-12-2021
Test report for HMI-no. 101921
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: Centre for Testing and Certification MECH-TEST. Test date: 24-04-2021
Test report for HMI-no. 101921
Test lab: Centre for Testing and Certification MECH-TEST. Test date: 20-12-2021
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: Centre for Testing and Certification MECH-TEST. Test date: 24-04-2021
EU product safety regulation ![info](/en/img/i.svg)
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
