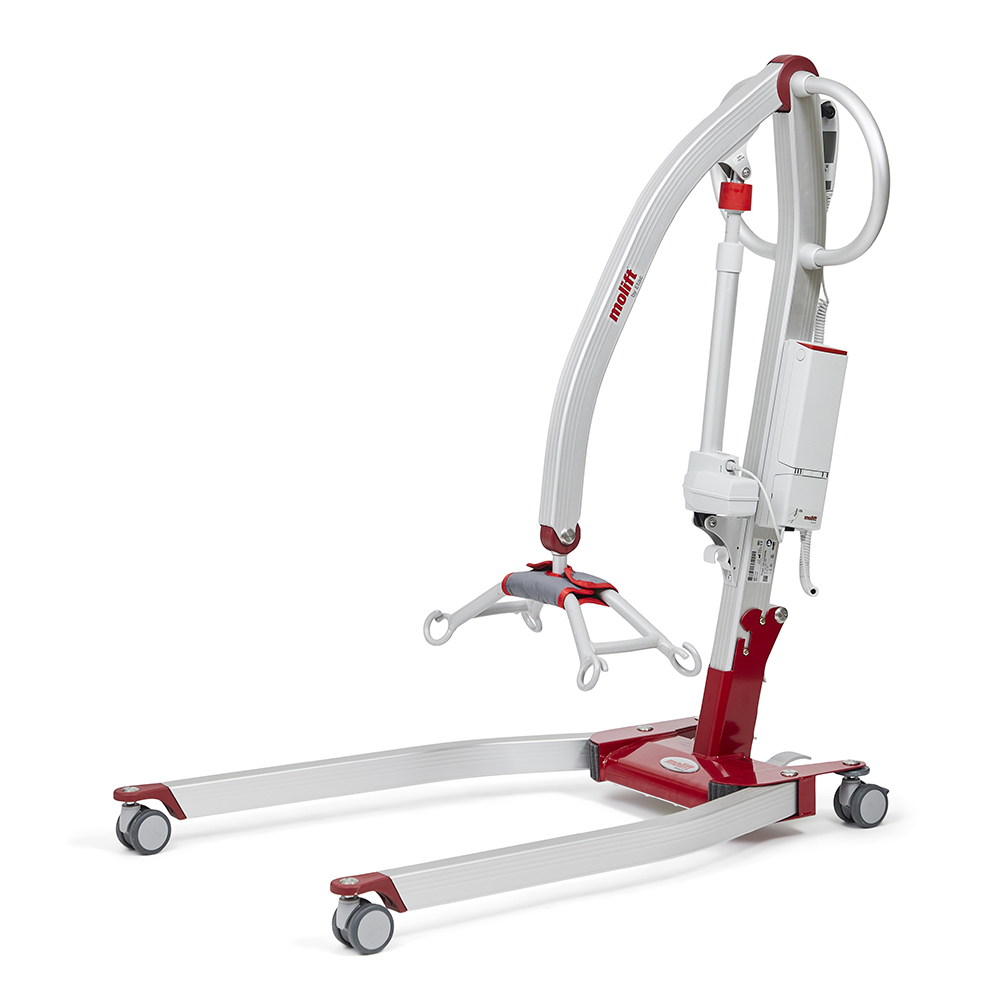

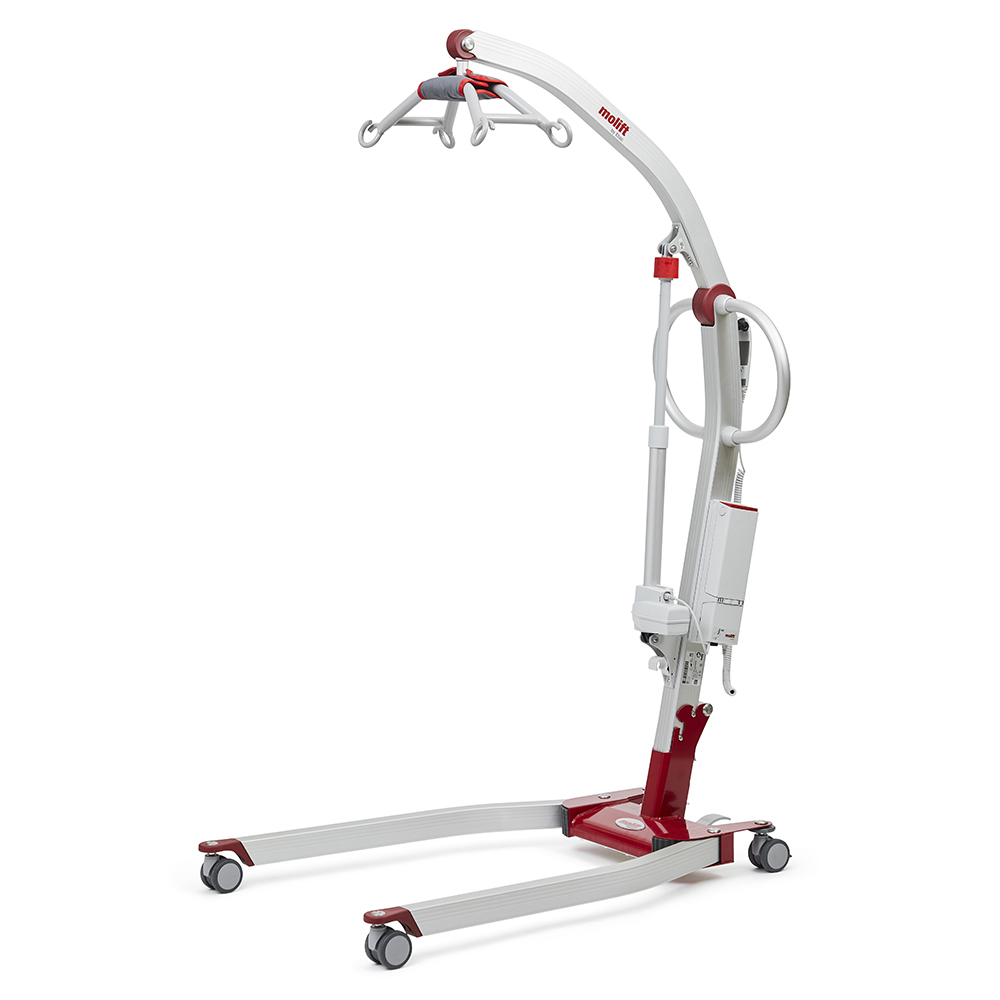

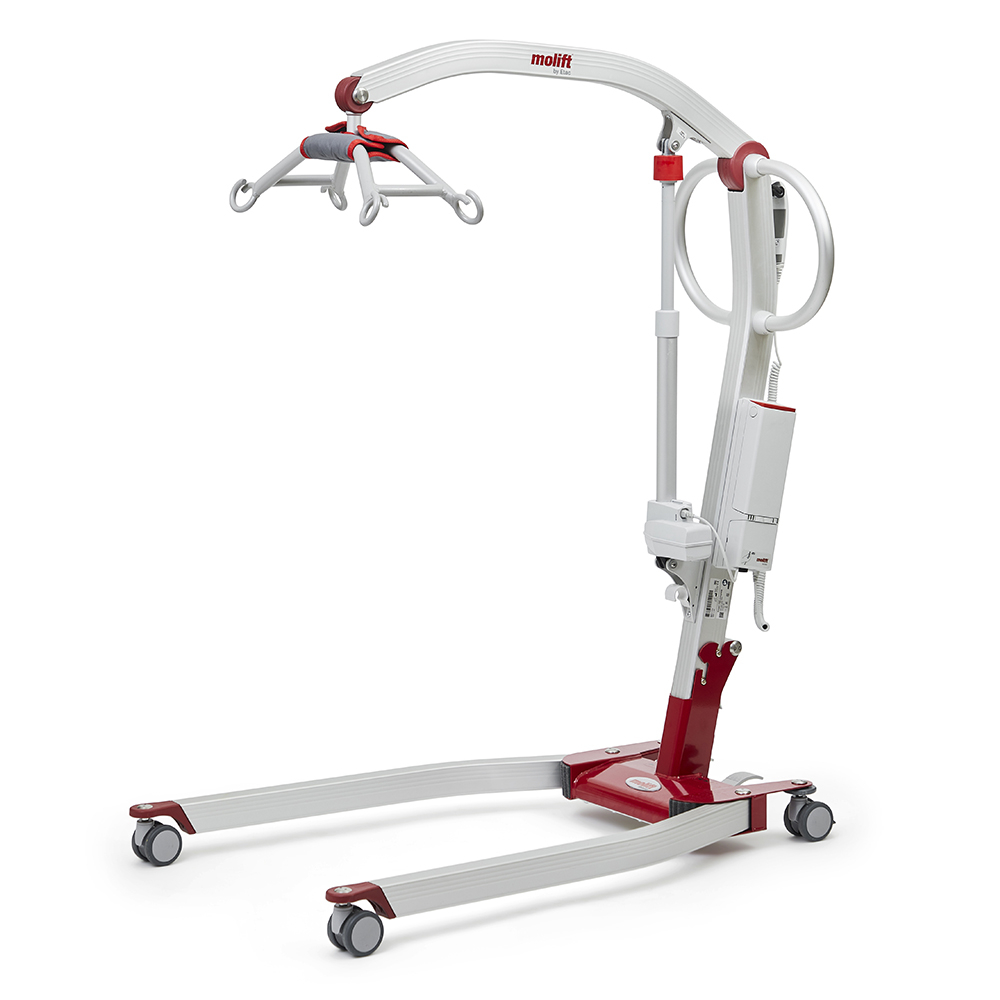

Molift Smart 150 foldable and transportable hoist

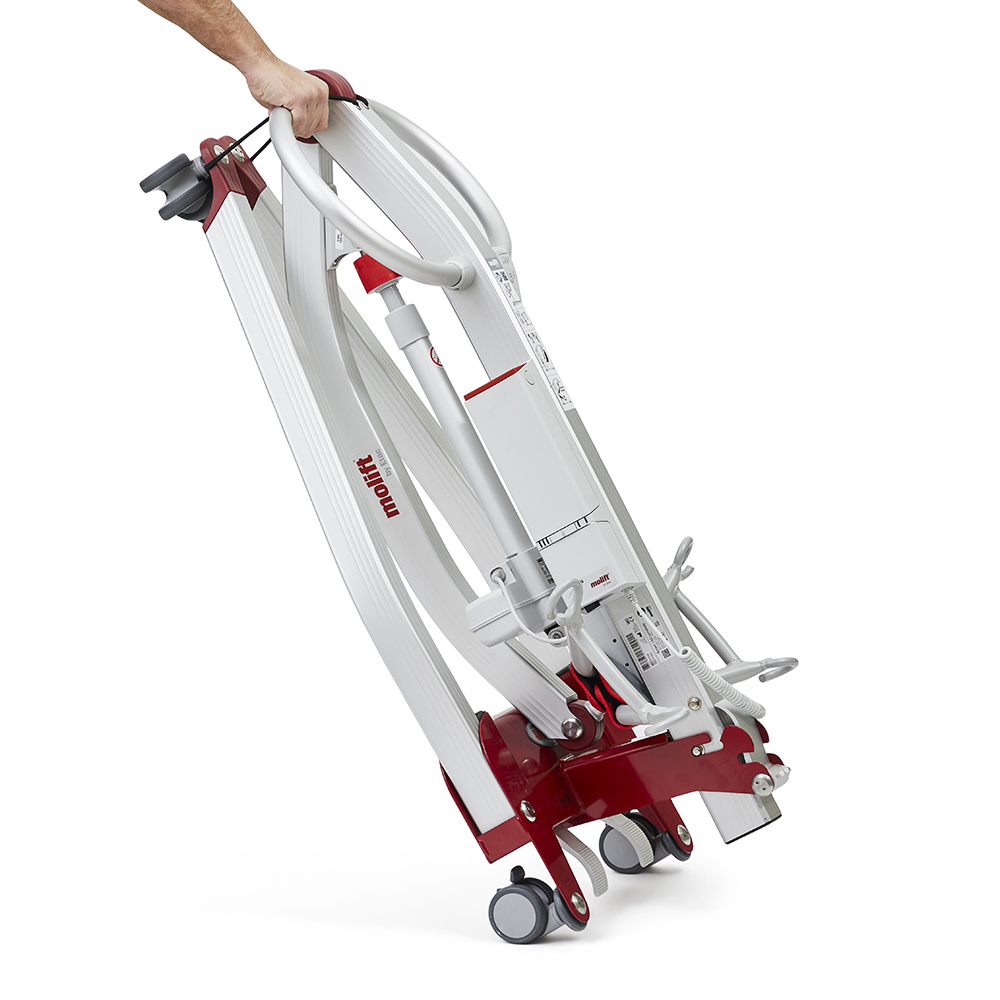

Light, foldable and transportable without tools. Molift Smart 150 is designed to be easily wheeled and transported to where it is required. It is designed for home care, travelling and easy storage. Molift Smart is foldable in one piece without using any tools.

Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats




The product series contains 1 product.
The product series also includes a discontinued product. Include discontinued products.

Product 1 of 1
Molift Smart 150 with integrated charger


HMI-no.
124403
Article-no.
M10152

Registration date
01-05-2020
Last updated
11-01-2024

Properties
Ingress protection class for water
IPX3
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Properties
Width adjustable movement
Parallel

Properties
Lifting movement
Vertikal
info
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
Yes
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
No
Emergency lowering function
Yes

Measures
User weight, max
150
kg
Internal width of base, max
92.5
cm
info
Measured with the base in the widest position
External width of base in the most narrow position
66
cm
Height of base at front
11
cm
Turning diameter
132
cm
info
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
13.5
kg
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
