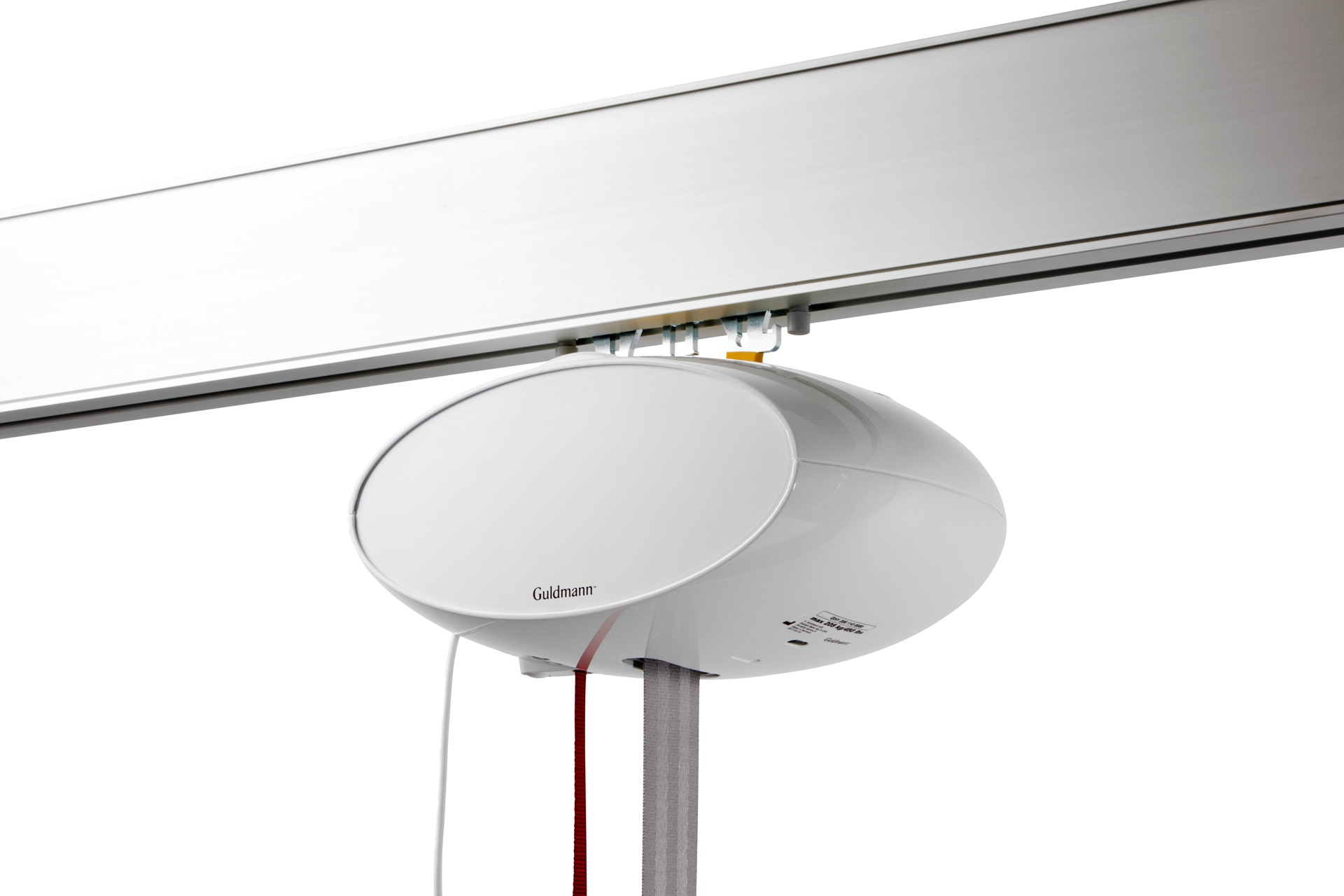

GH1 Lifting module
Designed to deal with day-to-day lifting needs typically encountered in private homes, sheltered accommodation and nursing homes. It takes up little space, is easy to operate and helps make lifting and moving processes safe, simple and comfortable for user and care staff alike.
Classification
12 36 12 02 - Stationary hoists fixed to walls, floor or ceiling
BrochureVideo
Play videoThe product series contains 3 products.
Product 1 of 3
GH1 205 110 W0
HMI-no.
63377
Article-no.
556305
Registration date
16-02-2011
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX0
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
205
kg
Max lifting velocity, loaded
0.03
m/s
Weight of lifting machinery
8
kg
Min. distance from ceiling to central suspension point
47.35
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 2 of 3
GH1 205 110 XS
HMI-no.
119708
Article-no.
556346
Registration date
27-09-2019
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
205
kg
Max lifting velocity, loaded
0.03
m/s
Weight of lifting machinery
8
kg
Min. distance from ceiling to central suspension point
47.35
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 3 of 3
GH1 255 110 SG
HMI-no.
86190
Article-no.
552250
Registration date
08-12-2014
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX0
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
250
kg
Max lifting velocity, loaded
0.03
m/s
Weight of lifting machinery
8
kg
Min. distance from ceiling to central suspension point
47.35
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
