Molift Partner 255 hoist



With vertical hoisting pattern for excellent stability.

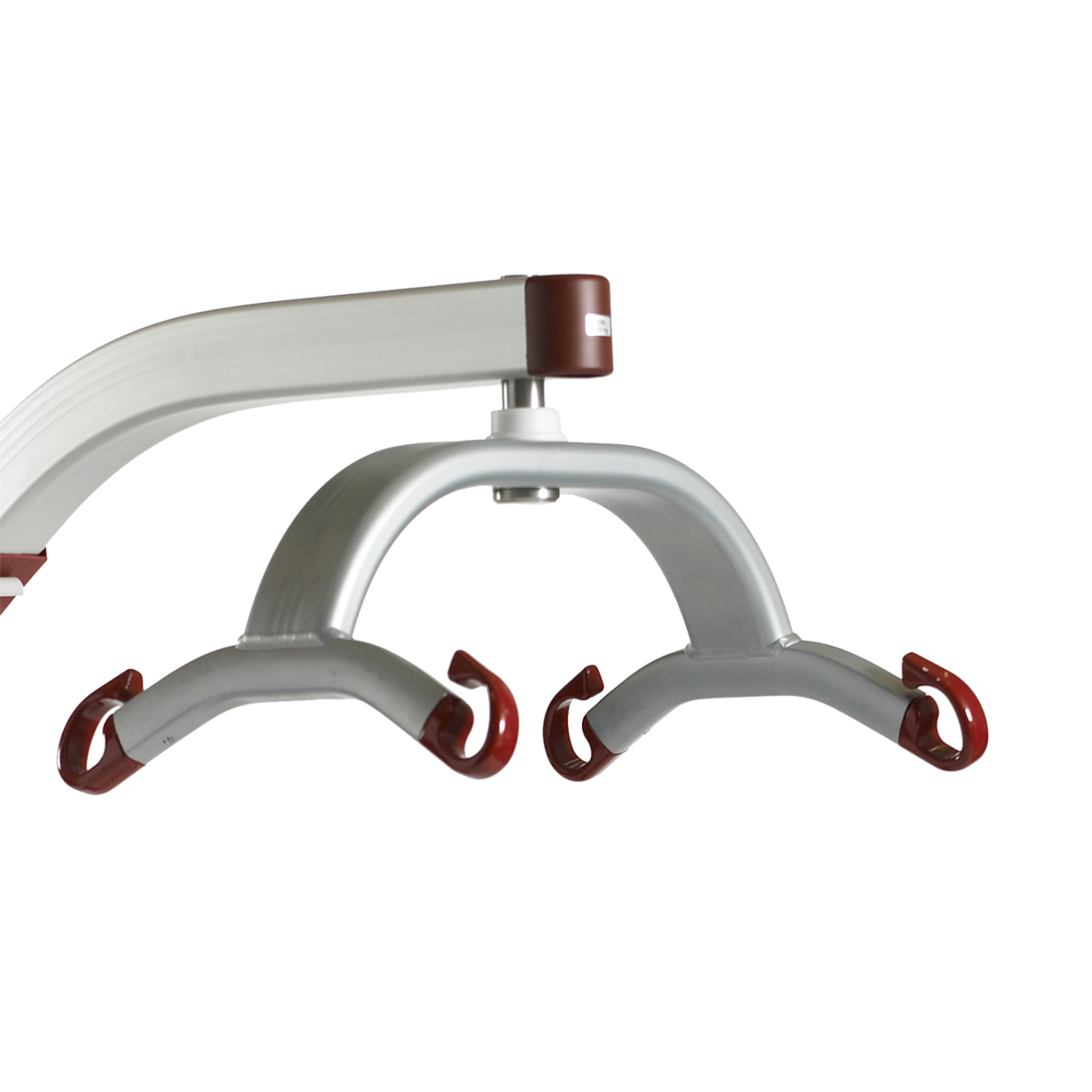

Ideal solution for hoisting with high complexity situations in acute and critical care areas in both hospitals and care facilities. The straight vertical column in combination with the fixed sling bar provides excellent stability and maintains the user at a good distance from the column.

Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats

Documents
Brochure
User manual
Spare part catalogue
Service manual


The product series contains 1 product.

Product 1 of 1
Molift Partner 255 hoist without sling bar


HMI-no.
69164
Article-no.
M13000

Registration date
28-09-2011
Last updated
14-08-2025

Properties
Width adjustment of base
Ja, elektrisk

Properties
Width adjustable movement
V-formet

Properties
Lifting movement
Vertikal
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
No
Emergency lowering function
Yes

Measures
User weight, max
255
kg
Internal width of base, max
106.5
cm
Measured with the base in the widest position
External width of base in the most narrow position
69
cm
Height of base at front
11.5
cm
Turning diameter
140
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
14
kg
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 69164
