HEWI L-shaped support rail (950-series)
Classification
18 18 06 04 - Handgrips, fixed, angled
Documents
User manualThe product series contains 1 product.
Product 1 of 1
HEWI L-shaped support rail
HMI-no.
69935
Article-no.
950.22.10090
Registration date
16-12-2011
Last updated
21-11-2023
Properties
T-shape
No
Corner design
No
The handgrip is shaped for mounting in a corner with a part on each of the two walls.
Measures
Load, max
150
kg
Length of longest part
60
cm
Length of shortest part
30
cm
Depth
9
cm
The depth is the distance from the wall to the inside of the hand grip.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications

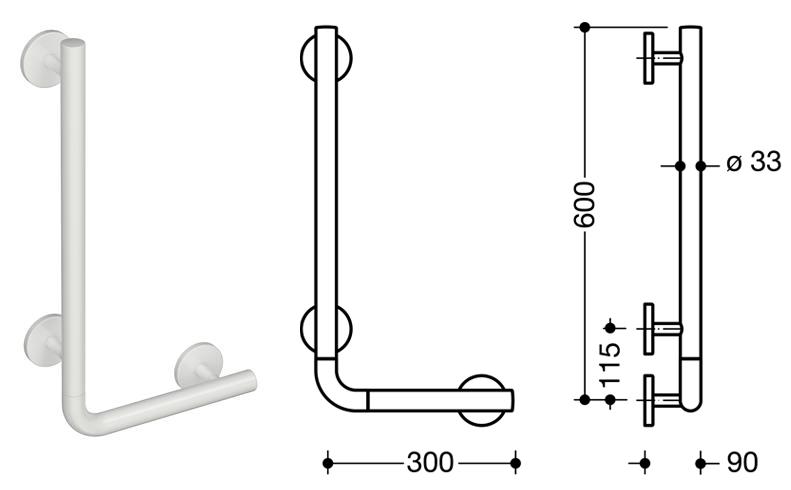

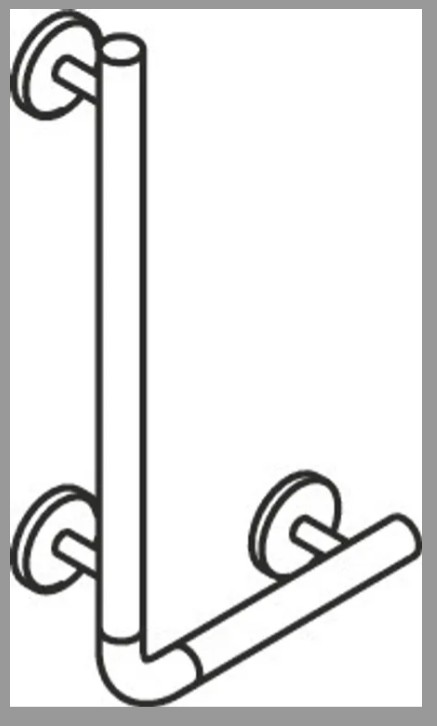

Vertically and horizontally rails connected at right-angles.
Made of high-quality polyamide in HEWI colour 98 (signal white) or 99 (pure white).
With continuous, corrosion resistant steel core.

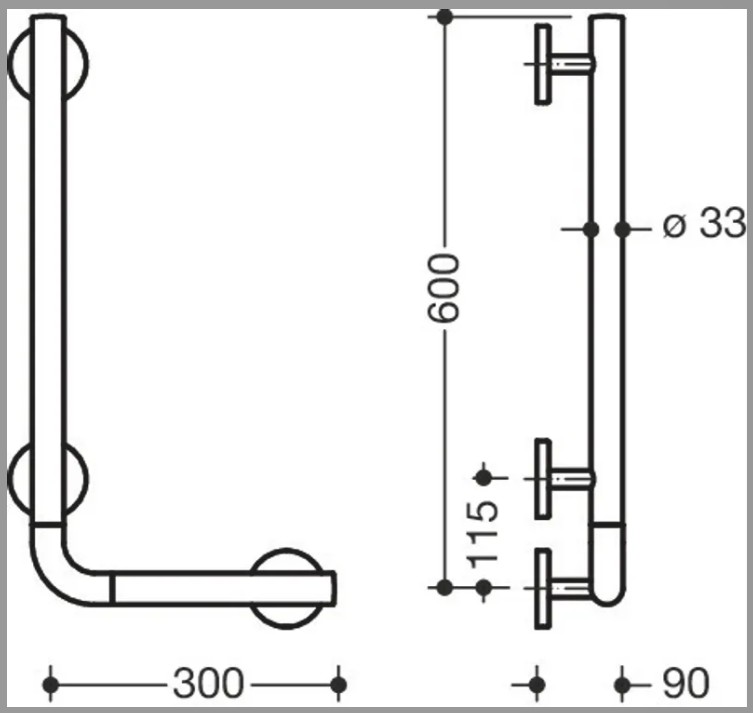

Diameter: rail 33 mm, rose 80 mm.
Can be mounted in left hand or right hand position.
Made of high-quality polyamide in HEWI colour 98 (signal white) or 99 (pure white).
With continuous, corrosion resistant steel core.
Diameter: rail 33 mm, rose 80 mm.
Can be mounted in left hand or right hand position.
