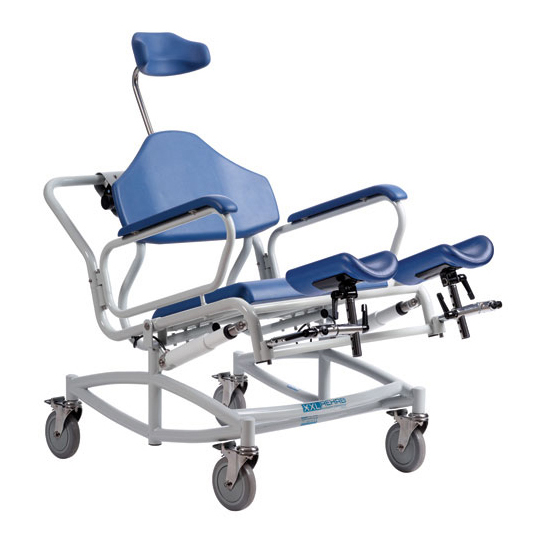

Shower Commode Tilt
Classification
09 12 03 11 - Commode shower chairs with wheels, tilt and electrical functions
Documents
BrochureThe product series contains 1 product.
Product 1 of 1
Shower Commode Tilt
HMI-no.
70770
Article-no.
0155-066-000
Registration date
13-02-2012
Last updated
11-01-2024
Properties
Possibility to change position of armrest to allow sideways transfer
Ja, svingbare
Properties
Height adjustable
Nej
Properties
Number of wheels with brake
2
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Tension adjustable back rest upholstery
No
Can be used with standard wall-mounted toilets (without extension)
Yes
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Powered tilt
Yes
Tilt-in-space dissociated from the height adjustment
Yes
The function of the tilt-in-space is separated from the hydraulic or electrical function of the height adjustment.
Head support
Yes
Battery chargeable separated from the product
No
Emergency stopping function
No
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Removable legrests
Yes
Pivoting legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes
Measures
User weight, max
325
kg
Total width
74
cm
Ground clearance
39
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
66
cm
Smallest distance measured between the inside of the armrests
Seat depth
48
cm
Weight of chair
39
kg
Weight without detachable accessories (detachable without the use of tools)
Toilet opening width
22
cm
Seat height, min
51
cm
Seat height, max
69
cm
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
32
°
Measured from the horizontal position.
Wheel diameter
125
mm
Height of push handles/push bar, min.
100
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
100
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
