Mobile Flex

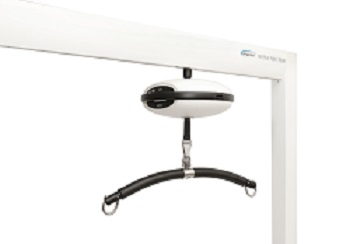

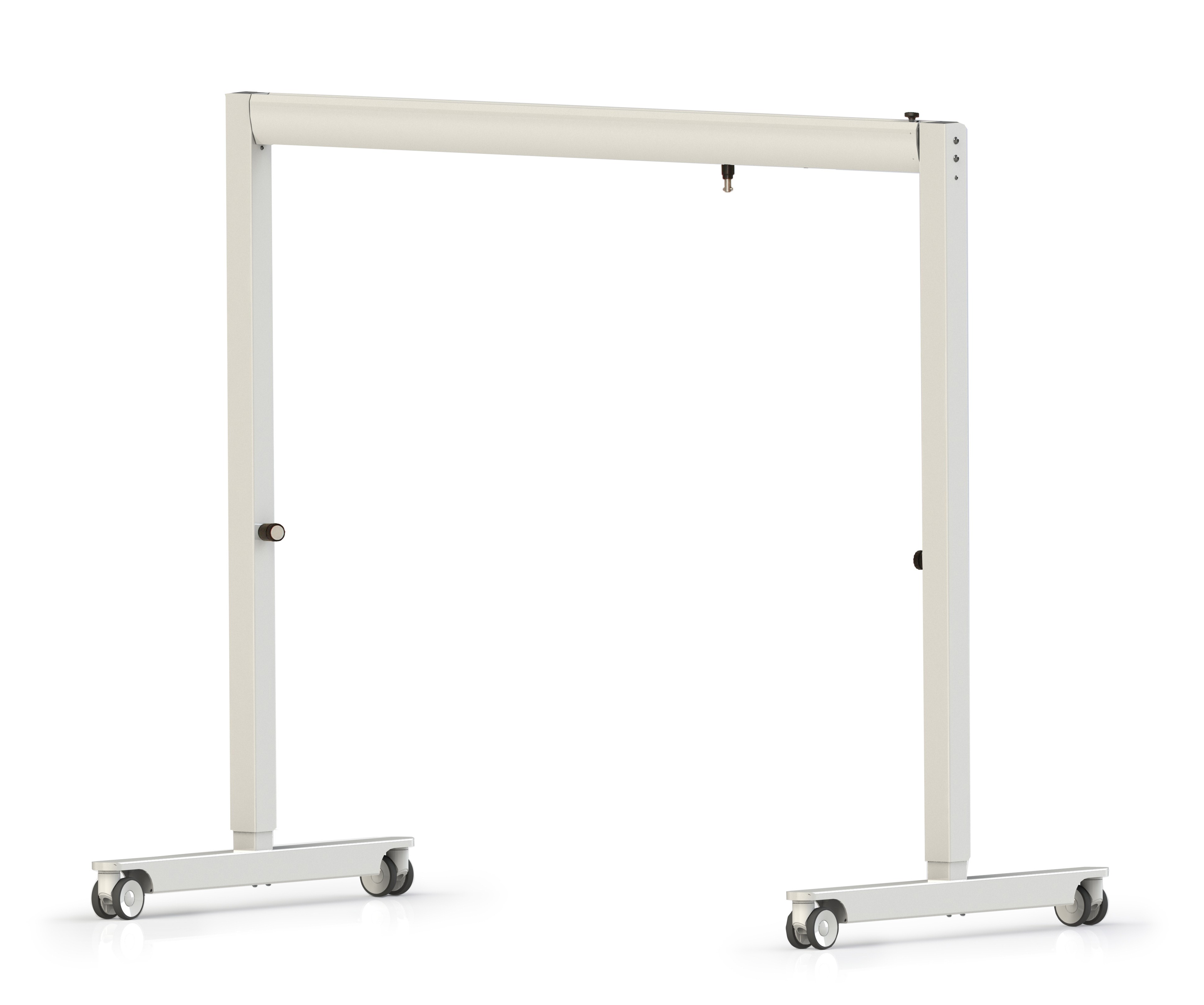

Mobile Flex, 2-post system is a free standing system, that with a Luna ceiling hoist is ideal for use as a room covering hoist. The system is easy to set up and can therefore also be used for a temporary solution.
Classification
12 36 18 03 - Stationary free-standing hoists
Documents
BrochureThe product series contains 2 products.
Product 1 of 2
Mobile Flex/2-post sytem/3000 travers/w. Luna ceiling hoist
HMI-no.
78049
Article-no.
016-01147
Registration date
11-04-2013
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Room covering rail system
No
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
275
kg
Max lifting velocity, loaded
0.044
m/s
Max length of rail
316
cm
Min. length of rail
216
cm
Max height to top of rail
254
cm
Min. height to top of rail
189
cm
Min. distance from top of rail to central suspension point
55.2
cm
Weight of lifting machinery
6.7
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
The system has a span of 2 meters to 3 meters
Product 2 of 2
Mobile Flex/2-post sytem/4000 travers/w. Luna ceiling hoist
HMI-no.
78050
Article-no.
016-01148
Registration date
11-04-2013
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Room covering rail system
No
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
275
kg
Max lifting velocity, loaded
0.044
m/s
Max length of rail
416
cm
Min. length of rail
316
cm
Max height to top of rail
254
cm
Min. height to top of rail
189
cm
Min. distance from top of rail to central suspension point
55.2
cm
Weight of lifting machinery
6.7
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
System has a span of 3 meters to 4 meters
