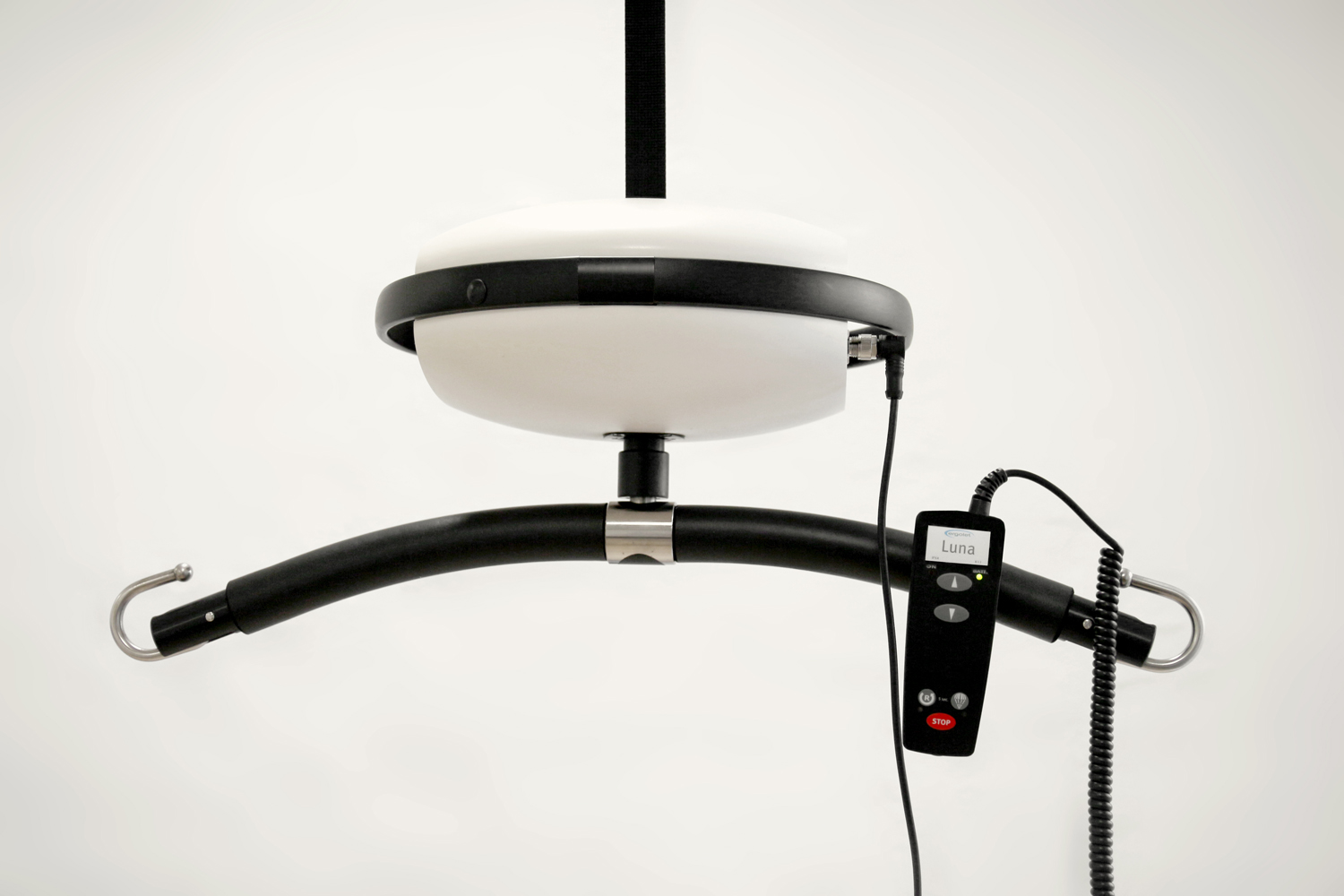

Luna IPx4 ceiling hoist
Luna ceiling hoist can be used in room covering systems on wall, ceiling or mounted in a single track as well as a mobile track systems.
Available in white and gray.
Available in white and gray.
Classification
12 36 12 02 - Stationary hoists fixed to walls, floor or ceiling
Documents
The product series contains 8 products.
Product 1 of 8
Luna IPx4 ceiling hoist/200 kg/bayonet
HMI-no.
83257
Article-no.
015-03026
Registration date
12-02-2014
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
No
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
200
kg
Max lifting velocity, loaded
0.044
m/s
Weight of lifting machinery
6.7
kg
Min. distance from ceiling to central suspension point
55.2
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards ![info](/en/img/i.svg)
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation ![info](/en/img/i.svg)
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
This Luna ceiling hoist is mounted with bayonet.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Product 2 of 8
Luna IPx4 ceiling hoist/200 kg/bayonet/2 channel
HMI-no.
83259
Article-no.
015-03032
Registration date
12-02-2014
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
No
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
200
kg
Max lifting velocity, loaded
0.044
m/s
Weight of lifting machinery
6.7
kg
Min. distance from ceiling to central suspension point
55.2
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards ![info](/en/img/i.svg)
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation ![info](/en/img/i.svg)
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
This Luna ceiling hoist is mounted with bayonet.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Luna ceiling hoist with 2 channels are intended for example electrical spreader bar.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Luna ceiling hoist with 2 channels are intended for example electrical spreader bar.
Product 3 of 8
Luna IPx4 ceiling hoist/200 kg/strap
HMI-no.
83255
Article-no.
015-03020
Registration date
12-02-2014
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
No
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
200
kg
Max lifting velocity, loaded
0.044
m/s
Weight of lifting machinery
6.7
kg
Min. distance from ceiling to central suspension point
55.2
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards ![info](/en/img/i.svg)
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation ![info](/en/img/i.svg)
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
This Luna ceiling hoist is mounted with strap.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Product 4 of 8
Luna IPx4 ceiling hoist/200 kg/strap/room to room
HMI-no.
83261
Article-no.
015-03035
Registration date
12-02-2014
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
No
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
200
kg
Max lifting velocity, loaded
0.044
m/s
Weight of lifting machinery
6.7
kg
Min. distance from ceiling to central suspension point
55.2
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards ![info](/en/img/i.svg)
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation ![info](/en/img/i.svg)
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
This Luna ceiling hoist is mounted with double hook brackets. One bracket is used for mounting the strap and the other used for the transfer to another room.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Product 5 of 8
Luna IPx4 ceiling hoist/275 kg/bayonet
HMI-no.
83258
Article-no.
015-03028
Registration date
12-02-2014
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
No
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
275
kg
Max lifting velocity, loaded
0.044
m/s
Weight of lifting machinery
6.7
kg
Min. distance from ceiling to central suspension point
55.2
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards ![info](/en/img/i.svg)
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation ![info](/en/img/i.svg)
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
This Luna ceiling hoist is mounted with bayonet.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Product 6 of 8
Luna IPx4 ceiling hoist/275 kg/bayonet/2 channels
HMI-no.
83260
Article-no.
015-03034
Registration date
12-02-2014
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
No
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
275
kg
Max lifting velocity, loaded
0.044
m/s
Weight of lifting machinery
6.7
kg
Min. distance from ceiling to central suspension point
55.2
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards ![info](/en/img/i.svg)
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation ![info](/en/img/i.svg)
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
This Luna ceiling hoist is mounted with bayonet.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Luna ceiling hoist with 2 channels are intended for example electrical spreader bar.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Luna ceiling hoist with 2 channels are intended for example electrical spreader bar.
Product 7 of 8
Luna IPx4 ceiling hoist/275 kg/strap
HMI-no.
83256
Article-no.
015-03022
Registration date
12-02-2014
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
No
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
275
kg
Max lifting velocity, loaded
0.044
m/s
Weight of lifting machinery
6.7
kg
Min. distance from ceiling to central suspension point
55.2
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards ![info](/en/img/i.svg)
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation ![info](/en/img/i.svg)
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
This Luna ceiling hoist is mounted with strap.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Product 8 of 8
Luna IPx4 ceiling hoist/275 kg/strap/room to room
HMI-no.
83262
Article-no.
015-03037
Registration date
12-02-2014
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
No
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
275
kg
Max lifting velocity, loaded
0.044
m/s
Weight of lifting machinery
6.7
kg
Min. distance from ceiling to central suspension point
55.2
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards ![info](/en/img/i.svg)
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation ![info](/en/img/i.svg)
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
This Luna ceiling hoist is mounted with double hook brackets. One bracket is used for mounting the strap and the other used for the transfer to another room.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
Available as standard Luna ceiling hoist with 220 cm strap and as accessory extends the strap, so the total length of the strap is 320 cm.
