TOTO Washlet Seat
Classified according to EN1717 Cat. 5, safety precaution to avoid back siphonage to the drinking water.
Classification
09 12 36 04 - Douches and air dryers for attachment to a toilet
Documents
BrochureThe product series contains 2 products.
Product 1 of 2

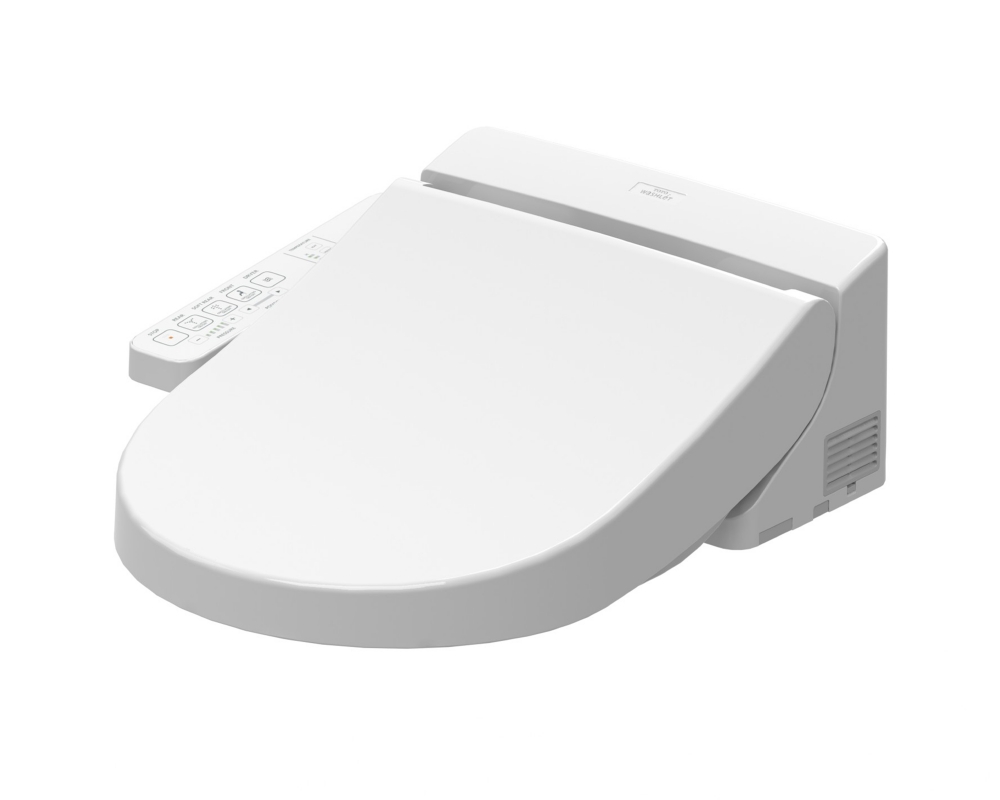

TOTO Washlet EK 2.0 Wall hung WC, visible connection
HMI-no.
88765
Article-no.
TCF6632GNW1
Registration date
20-10-2015
Last updated
21-11-2023
Properties
Number of jets
3
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Pulsating water jet
Yes
Self-cleaning jets
Yes
Adjustment of water temperature
Yes
Air dryer
Yes
Adjustment of air temperature
Yes
Remote control
No
Probrammable for several users
Yes
Automatic energy conservation, "sleep mode"
Yes
Lid
Yes
Heated toilet seat
Yes
Arm supports
No
Built-in air cleaning
Yes
Can be used in combination with raising mechanism
Yes
Measures
User weight, max
150
kg
Seat width
39
cm
Seat depth
52
cm
Seat height
4
cm
Measured from the upper surface of the bowl to the upper surface of the seat at the front.
Toilet opening width
20
cm
Toilet opening depth
29
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Premist function (to reduce dirt to accumulate), lady-wash, 2xrear-wash, deodorizer. self-cleaning wand-jet with replaceable nozzle (extra nozzle included), heated water, heated dryer, heated seat, integrated control panel, soft-close, detachable lid. To be combined with fx. TOTO floor standing CW161Y and CW761Y and TOTO wall hung CW162Y and CW762Y
Product 2 of 2
TOTO Washlet GL 2.0, visible connection
HMI-no.
88766
Article-no.
TCF6532GNW1
Registration date
20-10-2015
Last updated
21-11-2023
Properties
Number of jets
3
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Pulsating water jet
Yes
Self-cleaning jets
Yes
Adjustment of water temperature
Yes
Air dryer
Yes
Adjustment of air temperature
Yes

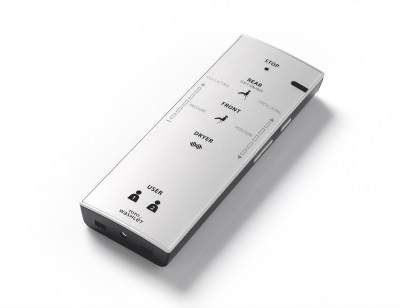

Remote control
Yes
Probrammable for several users
Yes
Automatic energy conservation, "sleep mode"
Yes
Lid
Yes
Heated toilet seat
Yes
Arm supports
No
Built-in air cleaning
Yes
Can be used in combination with raising mechanism
Yes
Measures
User weight, max
150
kg
Seat width
39
cm
Seat depth
52
cm
Seat height
4
cm
Measured from the upper surface of the bowl to the upper surface of the seat at the front.
Toilet opening width
20
cm
Toilet opening depth
29
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Premist function (to reduce dirt to accumulate), lady-wash, 2xrear-wash, deodorizer. self-cleaning wand-jet with replaceable nozzle (extra nozzle included), heated water, heated dryer, heated seat, soft-close, detachable lid. To be combined with fx. TOTO floor standing CW161Y and CW761Y and TOTO wall hung CW162Y and CW762Y.
