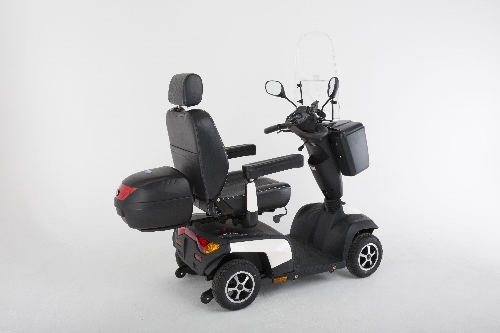

Invacare Orion PRO



Whether you enjoy a quick trip to meet friends for food or taking a short journey to the local shops, the Orion series is the ideal choice to take you there.
The new, ergonomically designed Orion series has been designed from the ground up to focus on key aspects important to both new and seasoned scooter users.

Classification
12 23 03 07 - Powered wheelchair, manual steering, class C (primarily for outdoor use)

Documents
Brochure
User manual
QuickGuide
Accessories catalogue
Service manual


The product series contains 3 products.

» Summarize specifications

Product 1 of 3
Invacare Orion PRO 3-hjuls (150 kg)


HMI-no.
106726
Article-no.
1645008

Registration date
11-10-2017
Last updated
22-09-2025

Properties
Number of wheels
3
Programmable
Yes
Suspension
Yes
Can be used as seat in a car
No
Can be disassembled without tools
No
With cubicle
No

Measures
User weight, max
150
kg
Width
69
cm
Maximum external width.
Length
130
cm
Maximum external length without extra accessories.
Weight
126
kg
Seat height, min
44
cm
The vertical distance between the foot rest and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
51
cm
The vertical distance between the foot rest and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Speed, max
15
km/t
Driving distance range, fully charged
52
km
The theoretical driving distance range as calculated through laboratory testing.
Ground clearance
8
cm
Slope, max
10
°
Climbs obstacles of max
10
cm
Weight of heaviest main part
62
kg

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)

Product 2 of 3
Invacare Orion PRO 3-wheeler


HMI-no.
104959
Article-no.
1653976

Registration date
03-04-2017
Last updated
22-09-2025

Properties
Number of wheels
3
Programmable
Yes
Suspension
Yes
Can be used as seat in a car
No
Can be disassembled without tools
No
With cubicle
No

Measures
User weight, max
127
kg
Width
65
cm
Maximum external width.
Length
130
cm
Maximum external length without extra accessories.
Weight
126
kg
Seat height, min
44
cm
The vertical distance between the foot rest and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
51
cm
The vertical distance between the foot rest and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Speed, max
15
km/t
Driving distance range, fully charged
52
km
The theoretical driving distance range as calculated through laboratory testing.
Ground clearance
10
cm
Slope, max
10
°
Climbs obstacles of max
10
cm
Weight of heaviest main part
62
kg

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)

Other specifications
Ideal for longer trips into town or afternoons driving around the park with your grandchildren, the new ergonomically designed PRO is a powerful upgrade to our standard METRO model.
The PRO blends this extra performance with all of our existing comfort, safety and reliability features to make it the ideal choice for users who demand more.


Product 3 of 3
Invacare Orion PRO 4-wheeler


HMI-no.
104964
Article-no.
1640414

Registration date
03-04-2017
Last updated
22-09-2025

Properties
Number of wheels
4
Programmable
Yes
Suspension
Yes
Can be used as seat in a car
No
Can be disassembled without tools
No
With cubicle
No

Measures
User weight, max
160
kg
Width
65
cm
Maximum external width.
Length
132
cm
Maximum external length without extra accessories.
Weight
136
kg
Seat height, min
44
cm
The vertical distance between the foot rest and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
51
cm
The vertical distance between the foot rest and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Speed, max
15
km/t
Driving distance range, fully charged
52
km
The theoretical driving distance range as calculated through laboratory testing.
Ground clearance
8
cm
Slope, max
10
°
Climbs obstacles of max
10
cm
Weight of heaviest main part
62
kg

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)

Other specifications
Ideal for longer trips into town or afternoons driving around the park with your grandchildren, the new ergonomically designed PRO is a powerful upgrade to our standard METRO model.
The PRO blends this extra performance with all of our existing comfort, safety and reliability features to make it the ideal choice for users who demand more.
