Raz AT

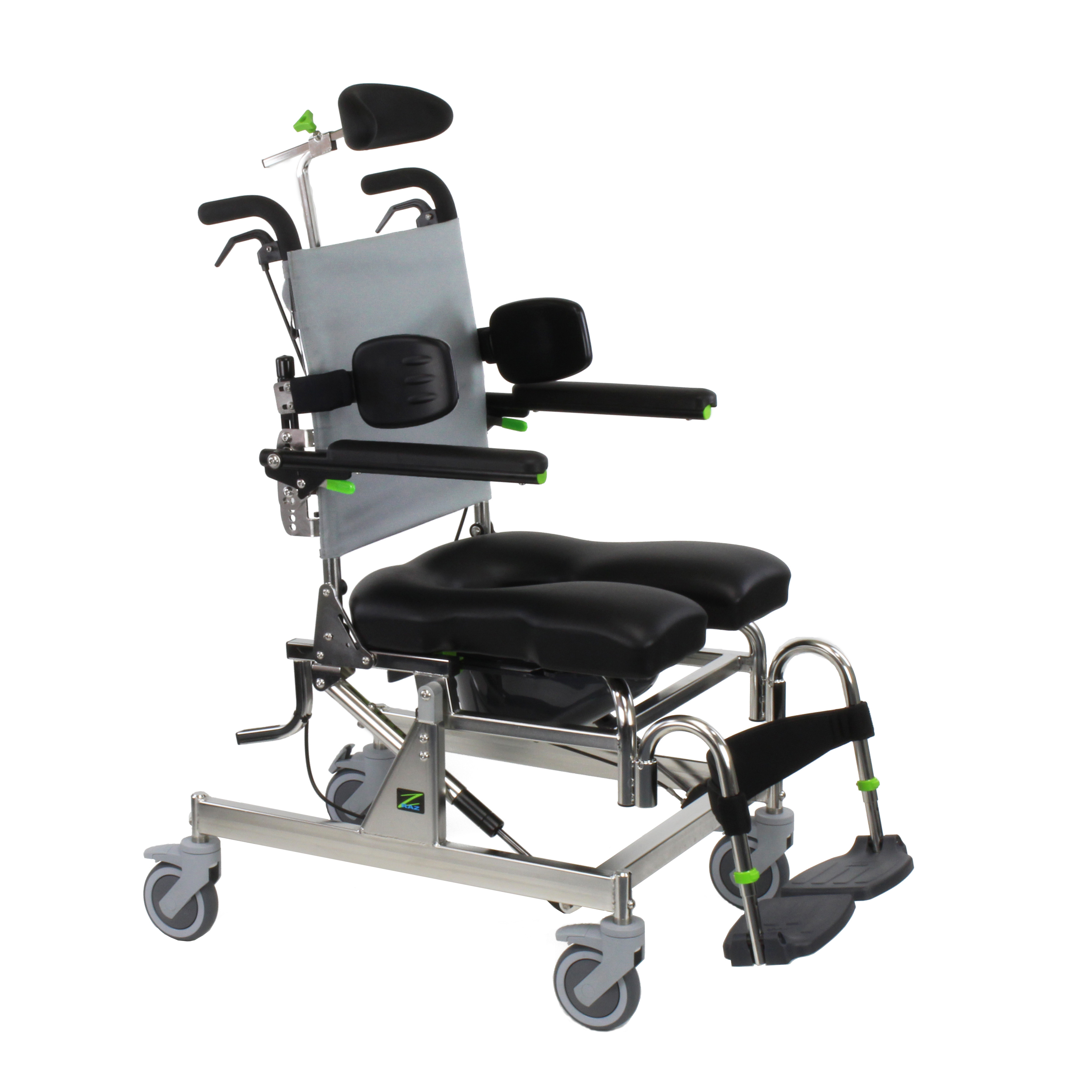

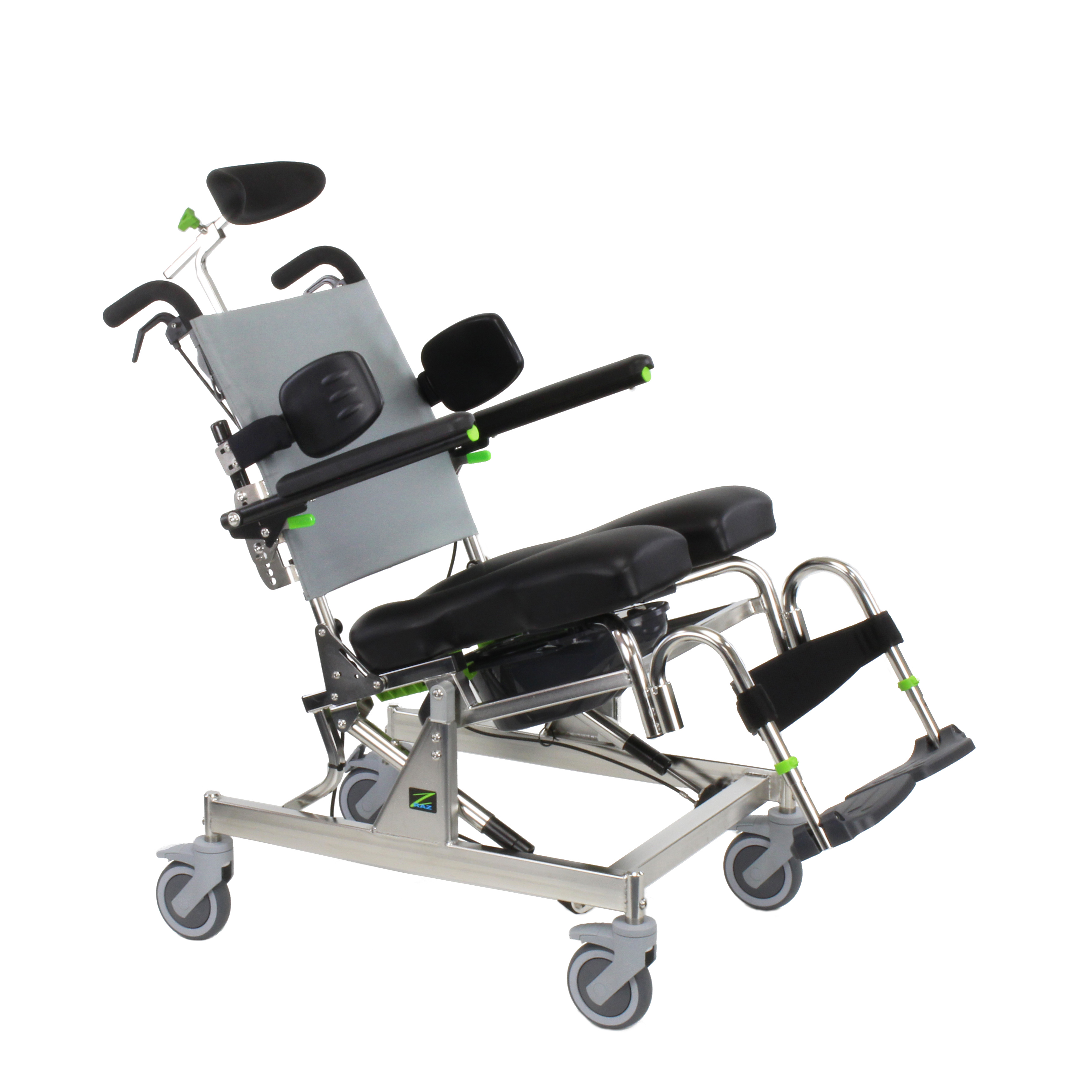

The RAZ-AT (Attendant Tilt) toilet and shower chair tilts up to 40 for extra comfort and pressure relief.
The frame design is built with gas springs that make it easy to adjust the seat angle, making it a very user-friendly chair. RAZ-AT is equipped with height adjustment, flip-up armrests with a soft padded surface and IPAS, among other features.
The frame design is built with gas springs that make it easy to adjust the seat angle, making it a very user-friendly chair. RAZ-AT is equipped with height adjustment, flip-up armrests with a soft padded surface and IPAS, among other features.
Classification
09 12 03 10 - Commode shower chairs with wheels and tilt, no electrical functions
Documents
BrochureThe product series contains 2 products.
Product 1 of 2
Raz-AT Standard (SW 46 cm)
HMI-no.
109080
Article-no.
840720000016
Registration date
07-04-2018
Last updated
04-12-2024
Properties
Height adjustable
Manuelt
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Possibility to change position of armrest to allow sideways transfer
Yes
Head support
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes
Measures
User weight, max
160
kg
Total width
57
cm
Ground clearance
55
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
46
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
40
cm
If the seat depth is adjustable, this is the maximum seat depth
Toilet opening width
40
cm
Seat height, min
54
cm
Seat height, max
64
cm
Tilt-in-space forward
7
°
Measured from the horizontal position.
Tilt-in-space back
40
°
Measured from the horizontal position.
Number of wheels with brake
4
Wheel diameter
120
mm
Height of push handles/push bar, min.
104
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
115
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 2 of 2
Raz-AT SW 51 cm
HMI-no.
109085
Article-no.
840720000019
Registration date
07-04-2018
Last updated
04-12-2024
Properties
Height adjustable
Manuelt
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Possibility to change position of armrest to allow sideways transfer
Yes
Head support
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes
Measures
User weight, max
160
kg
Total width
62
cm
Ground clearance
55
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
51
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
40
cm
If the seat depth is adjustable, this is the maximum seat depth
Toilet opening width
40
cm
Seat height, min
54
cm
Seat height, max
64
cm
Tilt-in-space forward
7
°
Measured from the horizontal position.
Tilt-in-space back
40
°
Measured from the horizontal position.
Number of wheels with brake
4
Wheel diameter
120
mm
Height of push handles/push bar, min.
104
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
115
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
