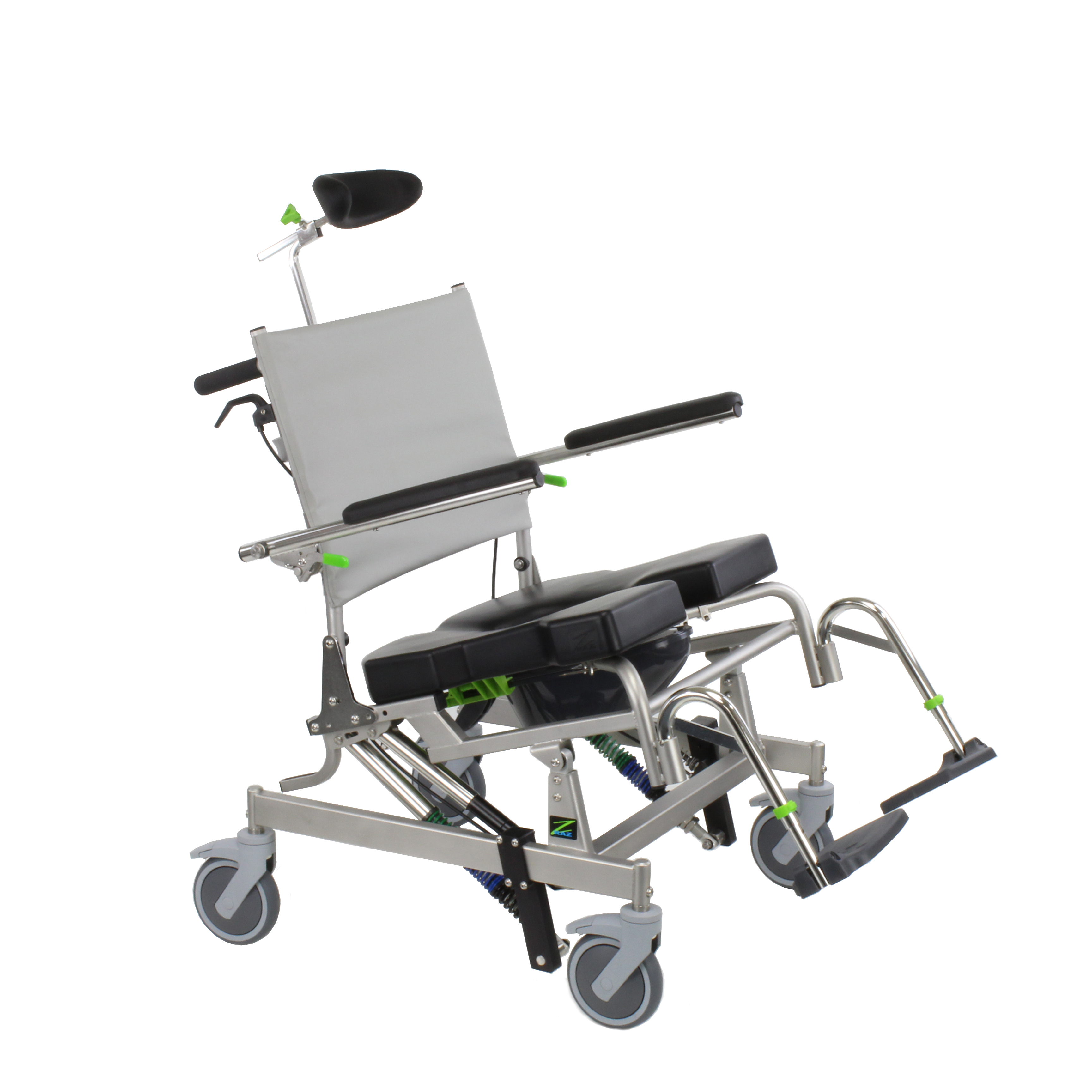

Raz AT600

Raz AT600
A commode and shower chair designed to meet the complex needs of bariatric users and their demands for safety, functionality and quality.
RAZ-AT600 has a maximum user weight of 272 kg. The chair has a reinforced steel frame, 25 tilt function, four lockable 6 wheels, easy-to-handle pelvis and heavy-duty leg supports.

Classification
09 12 03 10 - Commode shower chairs with wheels and tilt, no electrical functions

Documents
Brochure
User manual


The product series contains 2 products.

» Summarize specifications

Product 1 of 2
Raz-AT600, SW 56 cm


HMI-no.
109086
Article-no.
840720000705

Registration date
07-04-2018
Last updated
11-09-2025

Properties
Height adjustable
Manuelt
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Head support
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
275
kg
Total width
67
cm
Ground clearance
55
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
56
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
46
cm
If the seat depth is adjustable, this is the maximum seat depth
Seat height, min
55
cm
Seat height, max
58
cm
Tilt-in-space forward
7
°
Measured from the horizontal position.
Tilt-in-space back
25
°
Measured from the horizontal position.
Number of wheels with brake
4
Wheel diameter
120
mm
Height of push handles/push bar, min.
104
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
115
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 2 of 2
Raz-AT600, SW 65 cm


HMI-no.
109137
Article-no.
840720000707

Registration date
09-04-2018
Last updated
11-09-2025

Properties
Height adjustable
Manuelt
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Head support
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
275
kg
Total width
76
cm
Ground clearance
55
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
65
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
46
cm
If the seat depth is adjustable, this is the maximum seat depth
Seat height, min
55
cm
Seat height, max
58
cm
Tilt-in-space forward
7
°
Measured from the horizontal position.
Tilt-in-space back
25
°
Measured from the horizontal position.
Number of wheels with brake
4
Wheel diameter
120
mm
Height of push handles/push bar, min.
104
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
115
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
