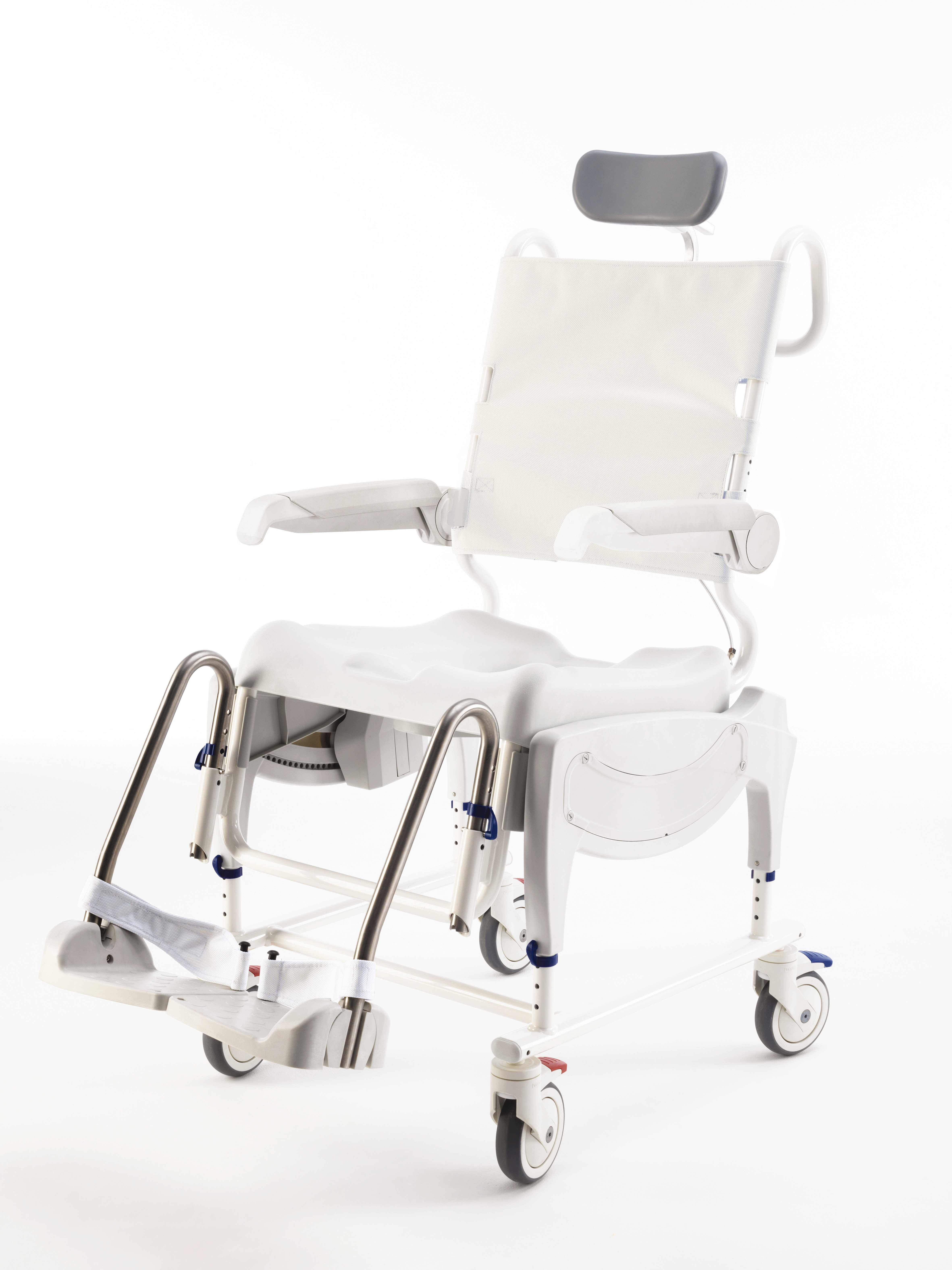

Aquatec Ocean Vip Ergo
Ocean Vip Ergo deliver a new and ergonomic design, which support the user needs for having a comfortable shower and toilet. The seatplate is ergonomic designed and follow the contour of the user. Designet for use with wallhung toilets. The tilt-in-space function requires less space in use
Classification
09 12 03 10 - Commode shower chairs with wheels and tilt, no electrical functions
The product series contains 2 products.
Product 1 of 2
Aquatec Ocean Dual Vip Ergo
HMI-no.
114089
Article-no.
1640561
Registration date
22-01-2019
Last updated
04-12-2024
Properties
Height adjustable
Manuelt
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Possibility to change position of armrest to allow sideways transfer
Yes
Head support
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes
Measures
User weight, max
150
kg
Total width
56
cm
Ground clearance
54
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
45
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
45
cm
If the seat depth is adjustable, this is the maximum seat depth
Toilet opening width
25
cm
Seat height, min
47
cm
Seat height, max
60
cm
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
40
°
Measured from the horizontal position.
Number of wheels with brake
4
Wheel diameter
127
mm
Height of push handles/push bar, min.
105.2
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
113.4
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position
Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
ISO 17966:2016: Assistive products for personal hygiene that support users - Requirements and test methods.
Test lab: test. Test date: 12-01-2016
Test report for HMI-no. 114089
Test lab: test. Test date: 12-01-2016
Test report for HMI-no. 114089EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 2 of 2
Aquatec Ocean Vip Ergo
HMI-no.
109127
Article-no.
1640486
Registration date
09-04-2018
Last updated
04-12-2024
Properties
Height adjustable
Nej
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Possibility to change position of armrest to allow sideways transfer
Yes
Head support
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes
Measures
User weight, max
150
kg
Total width
56
cm
Ground clearance
17
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
45
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
45
cm
If the seat depth is adjustable, this is the maximum seat depth
Toilet opening width
25
cm
Seat height, min
47
cm
Seat height, max
60
cm
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
40
°
Measured from the horizontal position.
Number of wheels with brake
3
Wheel diameter
125
mm
Height of push handles/push bar, min.
105
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
120
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
