Threshold ramp, foldable

Threshold ramp, foldable

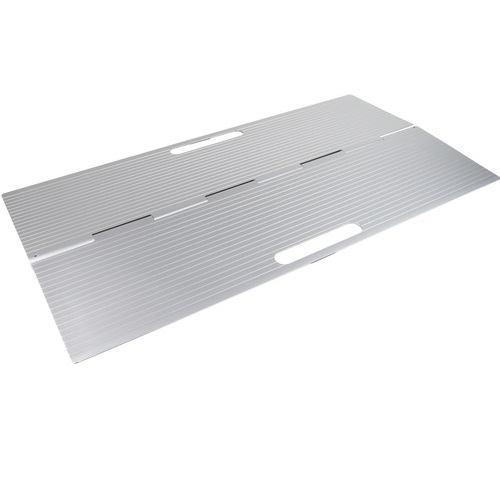

Threshold ramp consisting of two pieces of metal, connected in the middle by a hinge. The hinge ensures that the threshold ramps automatically adjusts to the height of the doorstep. Furthermore, the ramp can be folded along the middle and carried in the handles. The ramp has a grooved, non-slip surface for increased safety.

Classification
18 24 12 04 - Threshold ramps, double-sided

Documents
Brochure


The product series contains 1 product.

Product 1 of 1
Threshold ramp, 40 x 76 cm, foldable


HMI-no.
85221
Article-no.
DS4076

Registration date
18-06-2018
Last updated
15-04-2025

Properties
Outdoor use
Yes
Indoor use
Yes

Measures
Length in direction of travel
40
cm
Width
76
cm
Threshold height, min
10
mm
The minimal height of threshold that the ramp can be used with
Threshold height, max
50
mm
The maximum height of threshold that the ramp is intended for
Load, max
200
kg

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12182:2012: Assistive products for persons with disability - General requirements and test methods.
Test lab: Centre for Testing and Certification. Test date: 12-01-2016 Test report for HMI-no. 85221

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
