MC 1104 R-Net Spinalus-2




Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
Brochure
User manual
QuickGuide


The product series contains 1 product.

Product 1 of 1

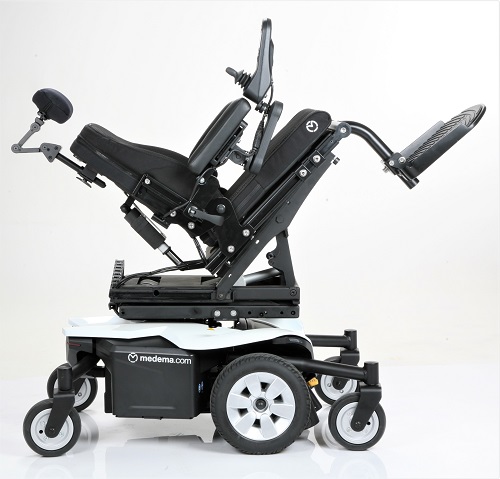

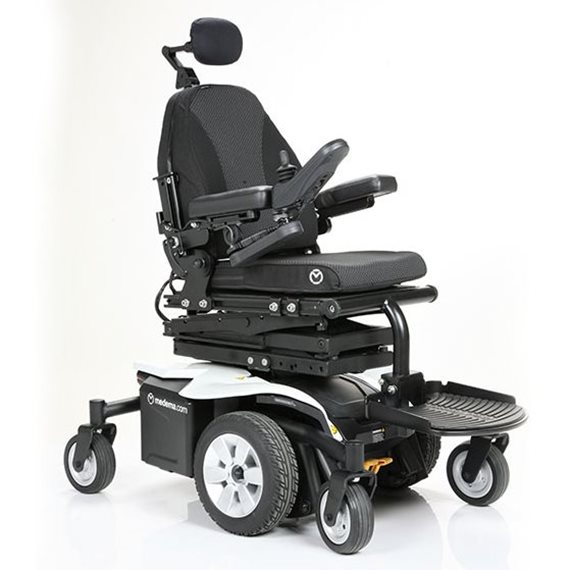

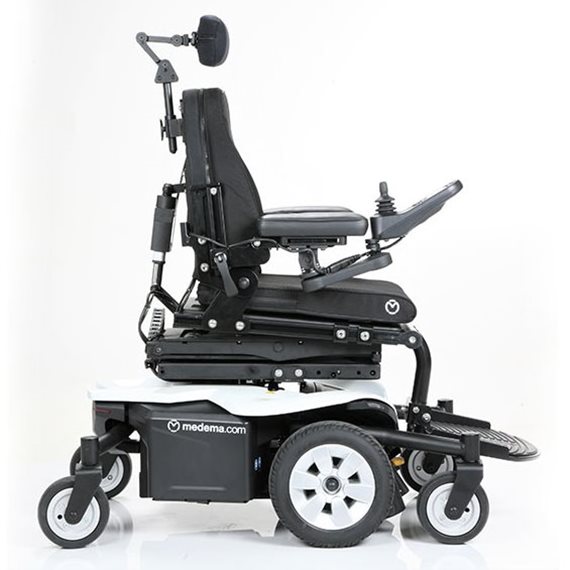

MC 1104 R-Net Spinalus-2


HMI-no.
115680
Article-no.
2400-1237

Registration date
03-05-2019
Last updated
11-09-2025

Properties

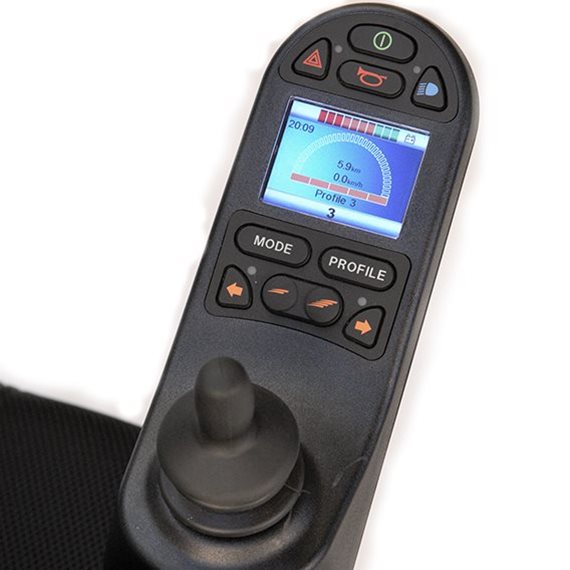

Programmable
Yes
Elevating seat
Yes
Powered recline
No
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
No
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
Yes
Rear-wheel-driven
No
Can be used as seat in a car
Yes

Measures
User weight, max
140
kg
External width
62
cm
Measured where widest
External length
154
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
143
kg
Speed, max
6
km/t
Driving distance range, fully charged
30
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
45
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
54
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
50
°
Recline of back rest from an upright position.
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
50
°
Measured from the horizontal position.
Ground clearance
4
cm
Slope, max
6
°
Climbs obstacles of max
5
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
