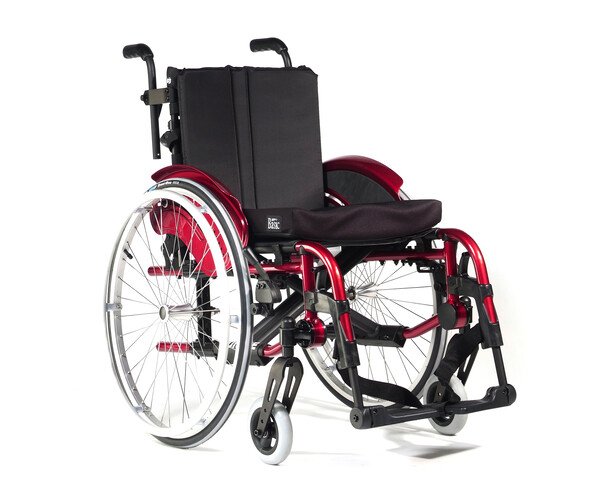

QUICKIE HeliX 2




Classification
12 22 03 11 - Manual wheelchairs, sideways foldable, standard measures

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
QUICKIE HeliX 2 48x46


HMI-no.
146250
Article-no.
QHeliX48K

Registration date
20-10-2025
Last updated
27-10-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
Yes
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
125
kg
Seat height, min
35.5
cm
Seat height, max
53
cm
Back rest height, min
35
cm
Back rest height, max
50
cm
Total width
68
cm
Total length
109
cm
Weight
15
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
48
cm
Seat depth, min
46
cm
Possibly by adjustment
Seat depth, max
46
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
: Tested according to other national or international standard.
Test lab: TÜV NORD CERT GmbH. Test date: 12-06-2009 Test report for HMI-no. 146250

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 146250
