Mini Crosser X-Kabine

Mini Crosser X-Kabine

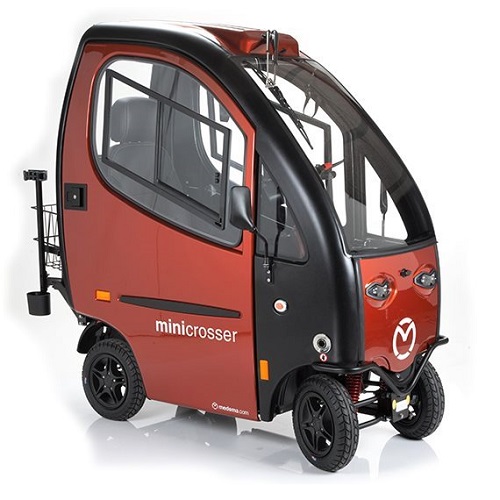

The Mini Crosser X cabin is built for Nordic climate and protects against rain, wind and cold. It has large glass areas for clear visibility. Equipped with a heating system, windshield wipers and LED lights for safe year-round driving.

Classification
12 23 03 07 - Powered wheelchair, manual steering, class C (primarily for outdoor use)

Documents
User manual
QuickGuide
Service manual


The product series contains 1 product.
The product series also includes 3 discontinued products. Include discontinued products.

Product 1 of 1
Mini Crosser X1-CAB


HMI-no.
116054
Article-no.
1500-1419

Registration date
23-05-2019
Last updated
07-09-2026

Properties
Number of wheels
4
Programmable
Yes
Suspension
Yes
Can be used as seat in a car
No
With cubicle
Yes

Measures
User weight, max
175
kg
Width
76
cm
Maximum external width.
Length
161
cm
Maximum external length without extra accessories.
Weight
243
kg
Seat height, min
41
cm
The vertical distance between the foot rest and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
51
cm
The vertical distance between the foot rest and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Speed, max
15
km/t
Driving distance range, fully charged
45
km
The theoretical driving distance range as calculated through laboratory testing.
Ground clearance
11
cm
Slope, max
13
°
Climbs obstacles of max
11
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 116054
